User Manual for Oscar GNSS Receiver v2.4
63
2.4Firmware upgrade
You have two methods to upgrade firmware for Oscar GNSS receiver: wired
upgrade and wireless upgrade.
2.4.1Wired upgrade
View Oscar firmware version. When Oscar GNSS receiver is powered on, to
connect Oscar, put controller near the NFC logo on Oscar, the controller pair
Bluetooth with Oscar automatically; or click [Device] -> [Connect] under an
opened project, and select [Oscar] for the Device Type, select [Bluetooth] for
the Connect Type. Click [Connect Config] to search and pair the Bluetooth
address of Oscar. The antenna is selected as [Oscar] by default. Then click
[Connect] to enable the communication between controller and Oscar.

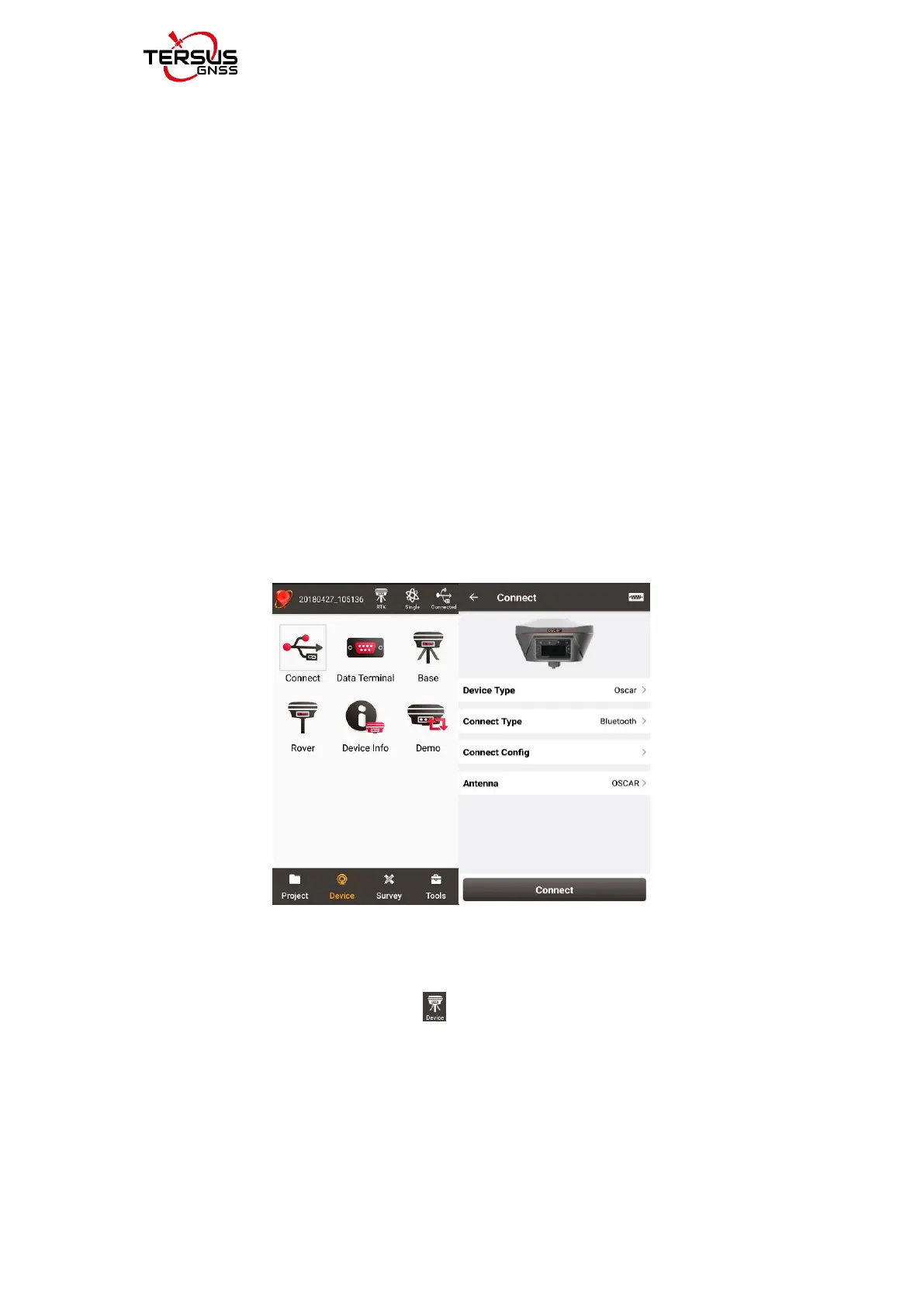

Figure 2.21 Connect to Oscar via Bluetooth
Click the device information icon on the top tool bar of Nuwa, the Oscar
info is shown as below. You can view Oscar firmware version.
