User Manual for Oscar GNSS Receiver v2.4

When using external radio for Oscar as a base, a high gain radio antenna and

a telescopic pole are needed which are shown as below.

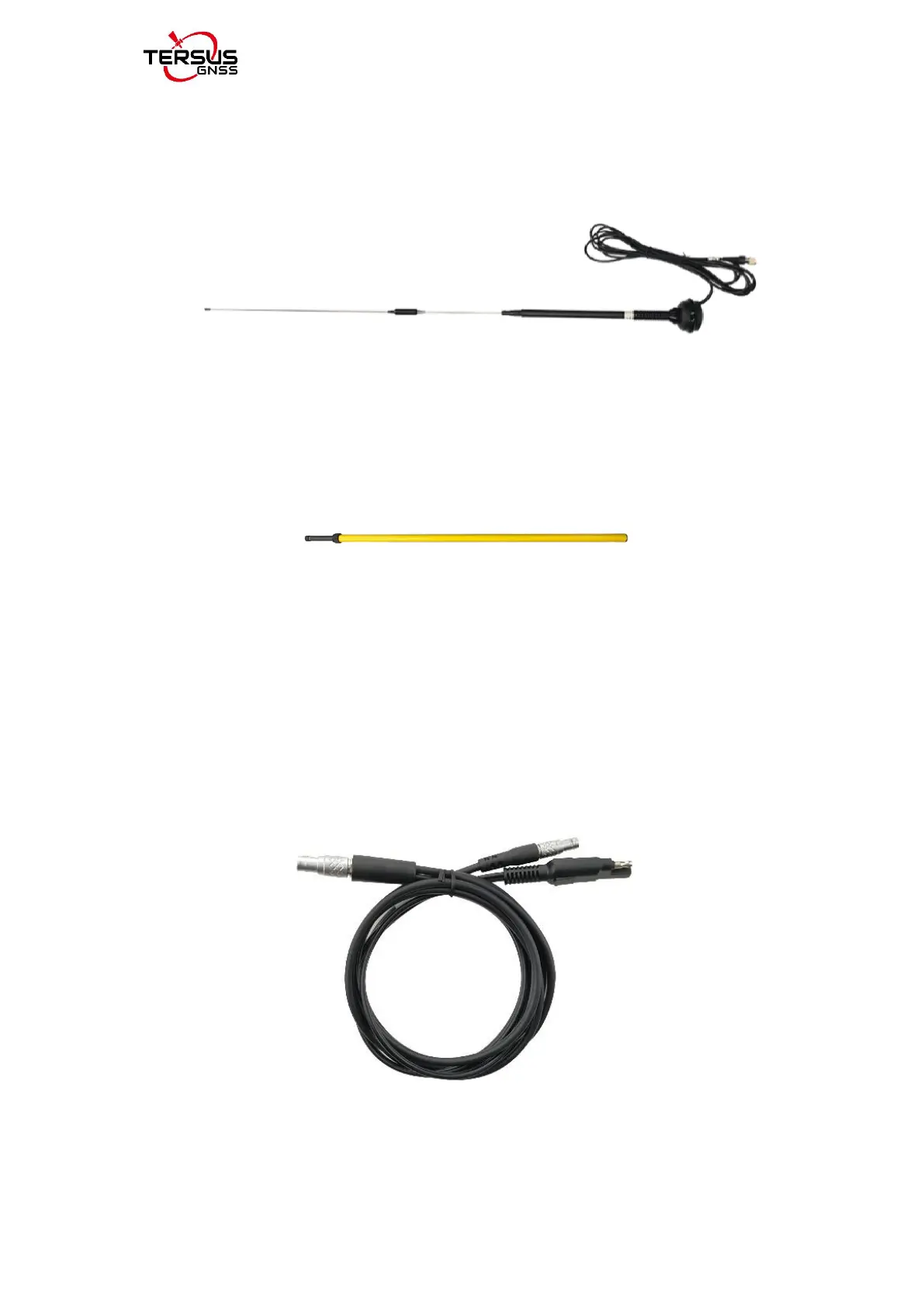

Figure 1.20 High gain radio antenna

Figure 1.21 Telescopic pole for radio antenna

The following Serial-5pin to External-Radio-DC-5pin & Bullet-DC Cable and

Bullet-DC to Alligator Clips are used to communicate with Oscar and connect

to external power supply.

Figure 1.22 Serial-5pin to External-Radio-DC-5pin & Bullet-DC Cable
