User Manual for Oscar GNSS Receiver v2.4

Receiver Ports

The bottom of Oscar receiver is shown as below.

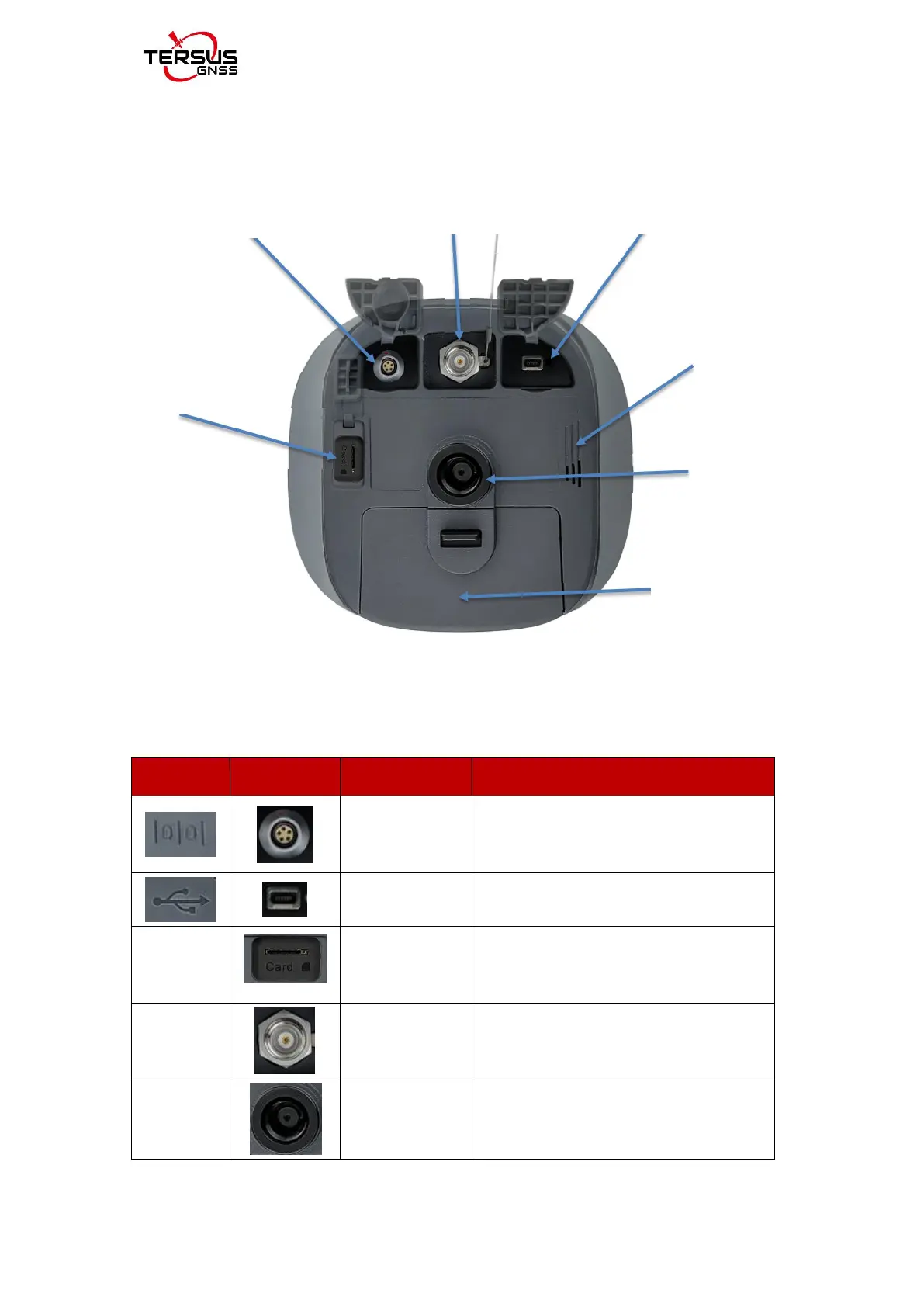

Figure 1.7 Bottom of Oscar GNSS receiver

Table 1.6 Receiver ports on the bottom side

Icon

Connector

Name

Connections

Serial port &

external power

External power, RS-232 communication,

external radio

Mini USB port

Device, computer, USB drive

SIM

SIM slot

Nano SIM card

TNC port

410-470MHz radio antenna

Screw hole

5/8’’ x 11 UNC-2B connector for

corresponding connector and pole.

Serial port & external power

TNC port

Mini USB port

SIM slot

Speaker

Screw hole

Battery compartment
