User Manual for Oscar GNSS Receiver v2.4

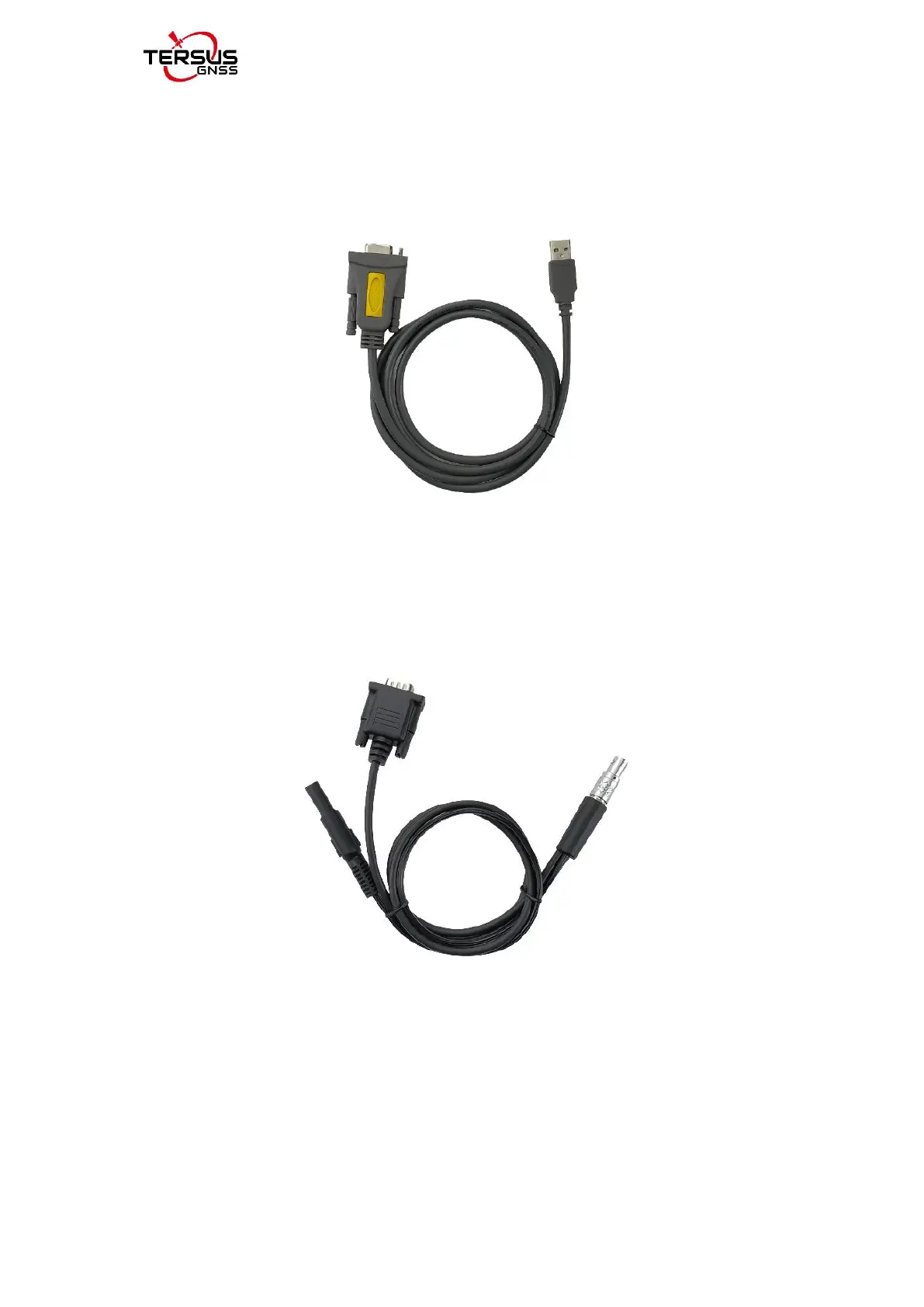

The DB9 Female to USB Type A Male converter cable is to convert DB9 male

to USB Type A male connector, so that it can connect to the USB port of a

computer.

Figure 1.38 DB9 Female to USB Type A Male converter cable

The configuration cable for 25W radio below is used to configure parameters

of the 25W radio instead of the default setting.

Figure 1.39 Configuration cable for 25W radio
