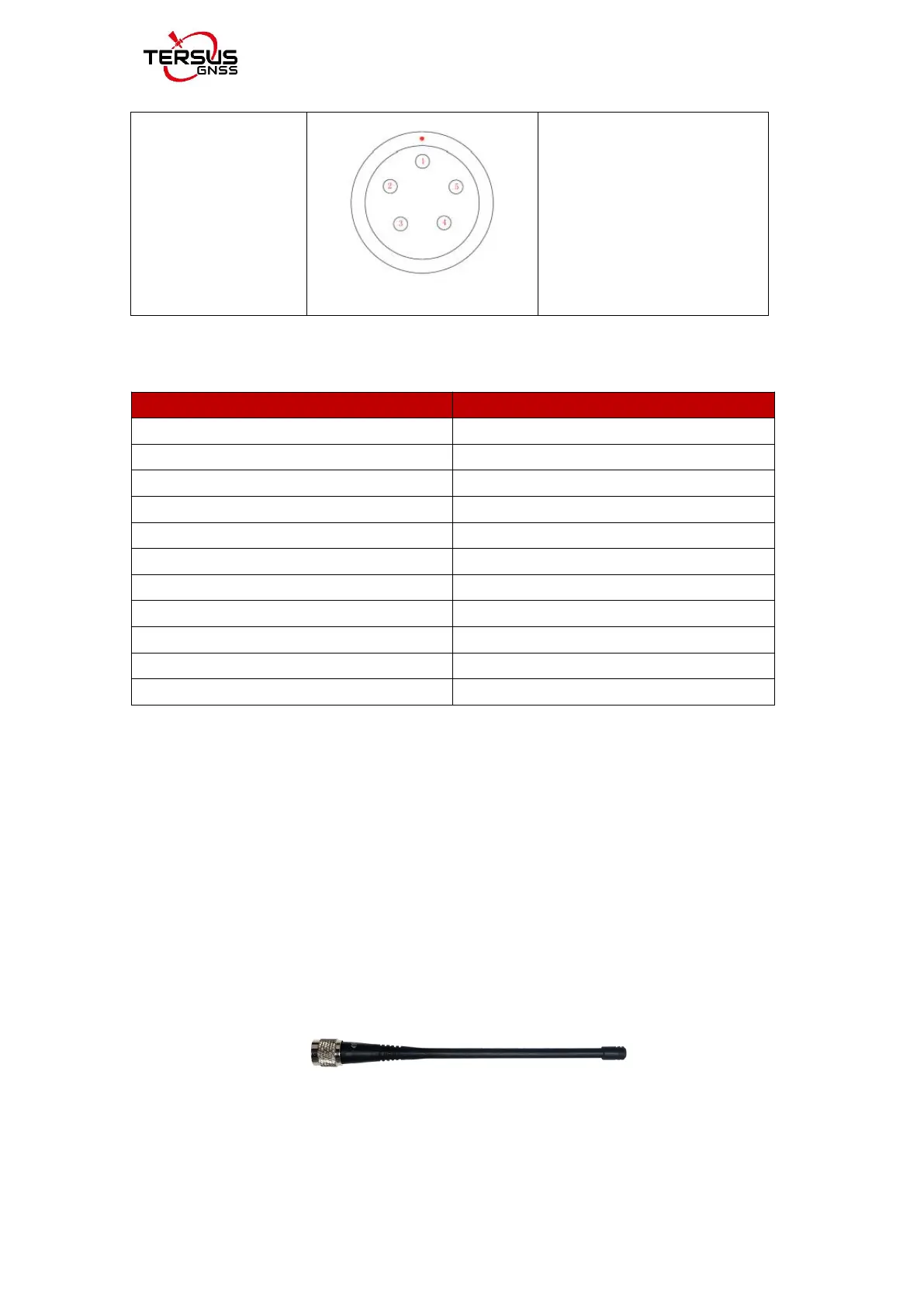

User Manual for Oscar GNSS Receiver v2.4

Data & power interface

View from outside to radio

Pin 1: PWR (9~16V DC)

Pin 2: Power GND

Pin 3: RXD

Pin 4: Signal GND

Pin 5: TXD

Table 3.10 Default factory configuration for Radio RS400H3

Channel

Frequency

457.550MHz

458.050MHz

458.550MHz

459.050MHz

459.550MHz

460.550MHz

461.550MHz

462.550MHz

463.550MHz

464.550MHz

Customized frequency

410~470MHz

3.5Radio whip antenna

The 410-470MHz radio whip antenna is to be installed on the TNC port to

transmit or receive signal for the internal radio. This antenna is elastic whip

structure, resistant to bending.
