User Manual for Oscar GNSS Receiver v2.4

Place two BN20 batteries in the slots of CN20 charger.

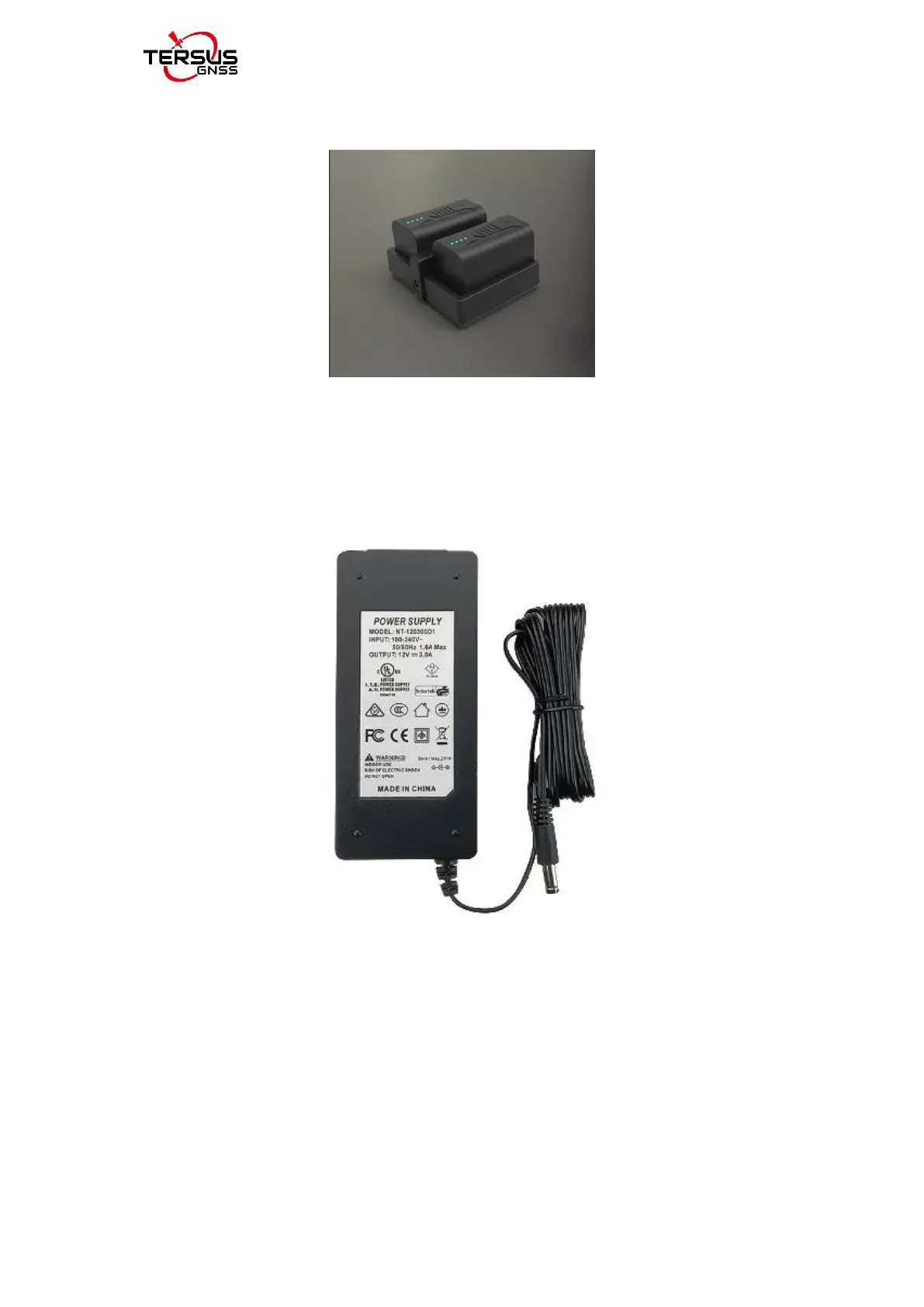

Figure 1.10 CN20 Charger with two BN20 batteries

Insert the DC Jack connector of the adapter to the CN20 charger, then make

the adapter with cable plug in the local AC outlet (100~240V AC) to start

charging.

Figure 1.11 CN20 Charger Adapter
