User Manual for Oscar GNSS Receiver v2.4

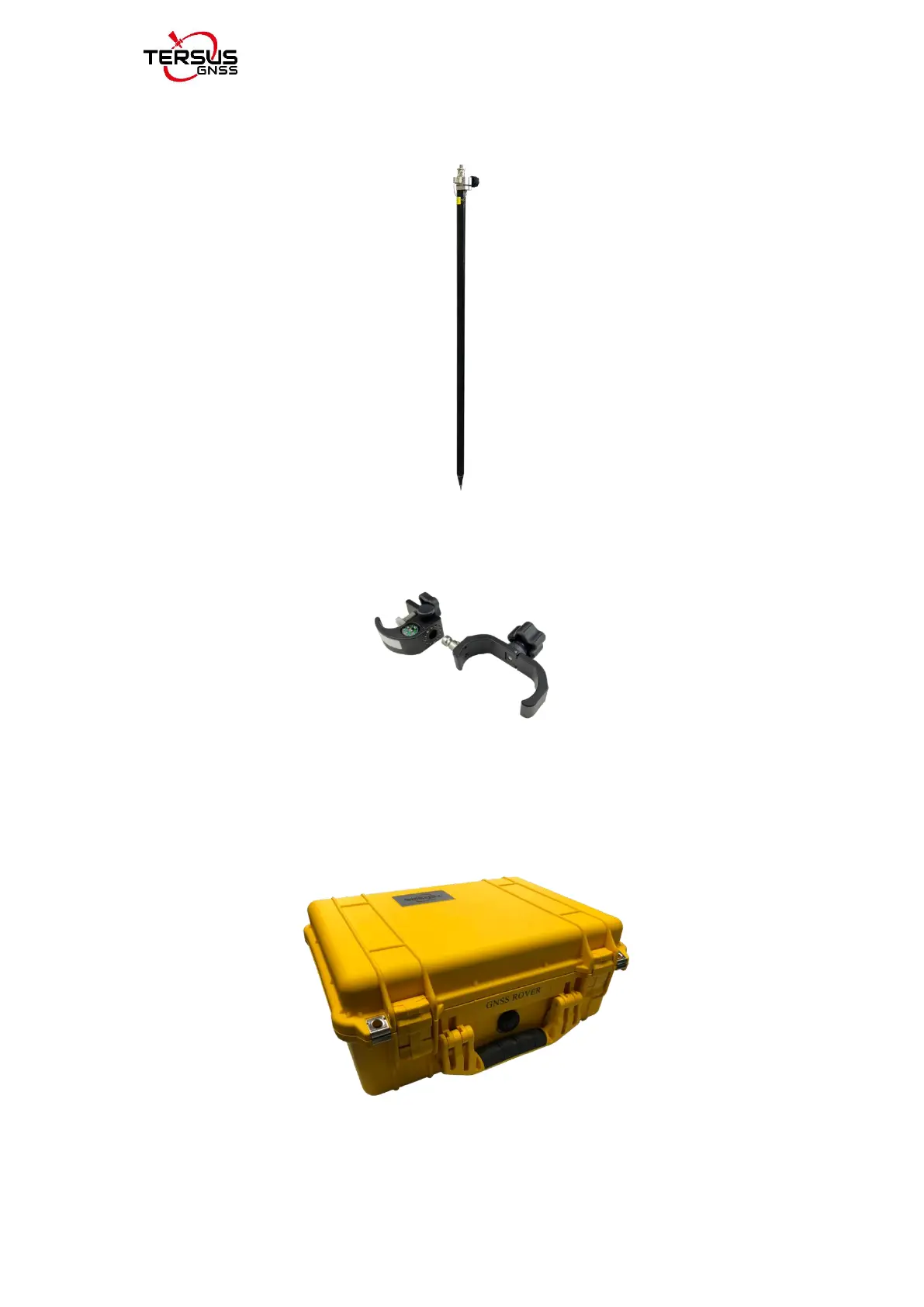

When using Oscar as a rover, you need a ranging pole.

Figure 1.32 Ranging Pole

The bracket for TC20 controller is to fix the TC20 controller on a ranging pole.

Figure 1.33 Bracket for TC20

A yellow carrying case is to store all the devices and accessories except

ranging pole, high gain radio antenna and telescopic pole.

Figure 1.34 Carrying Case
