User Manual for Oscar GNSS Receiver v2.4

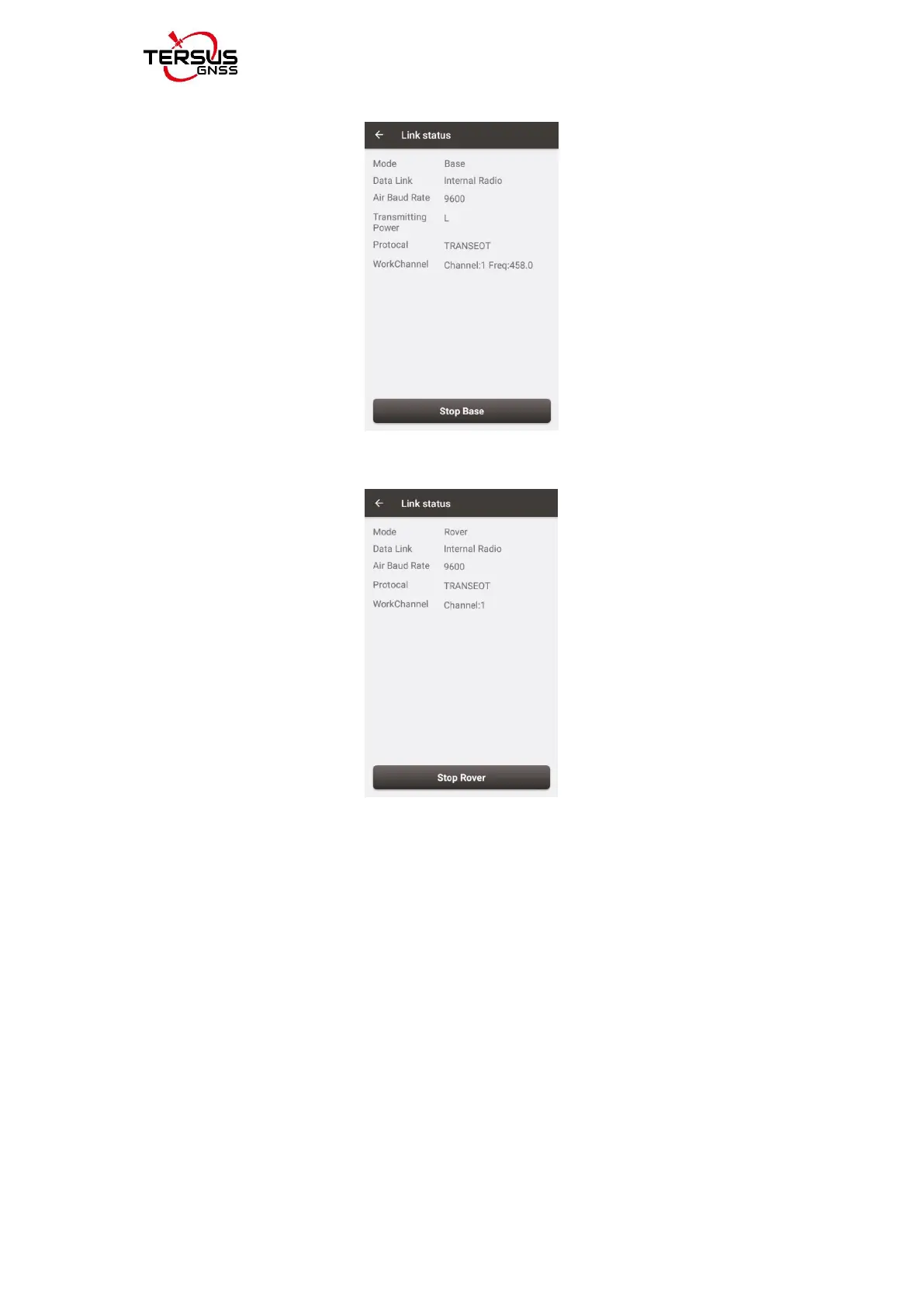

Figure 2.14 Link status of Base

Figure 2.15 Link status of Rover

2.2.2.5Configure NMEA output via serial port

To configure NMEA output via serial port, set [Device]--[NMEA output] in the

NUWA interface, open the serial port configuration, the serial port baud rate is

115200 by default, and then select the detailed configuration of NMEA output,

as shown below.
