User Manual for Oscar GNSS Receiver v2.4

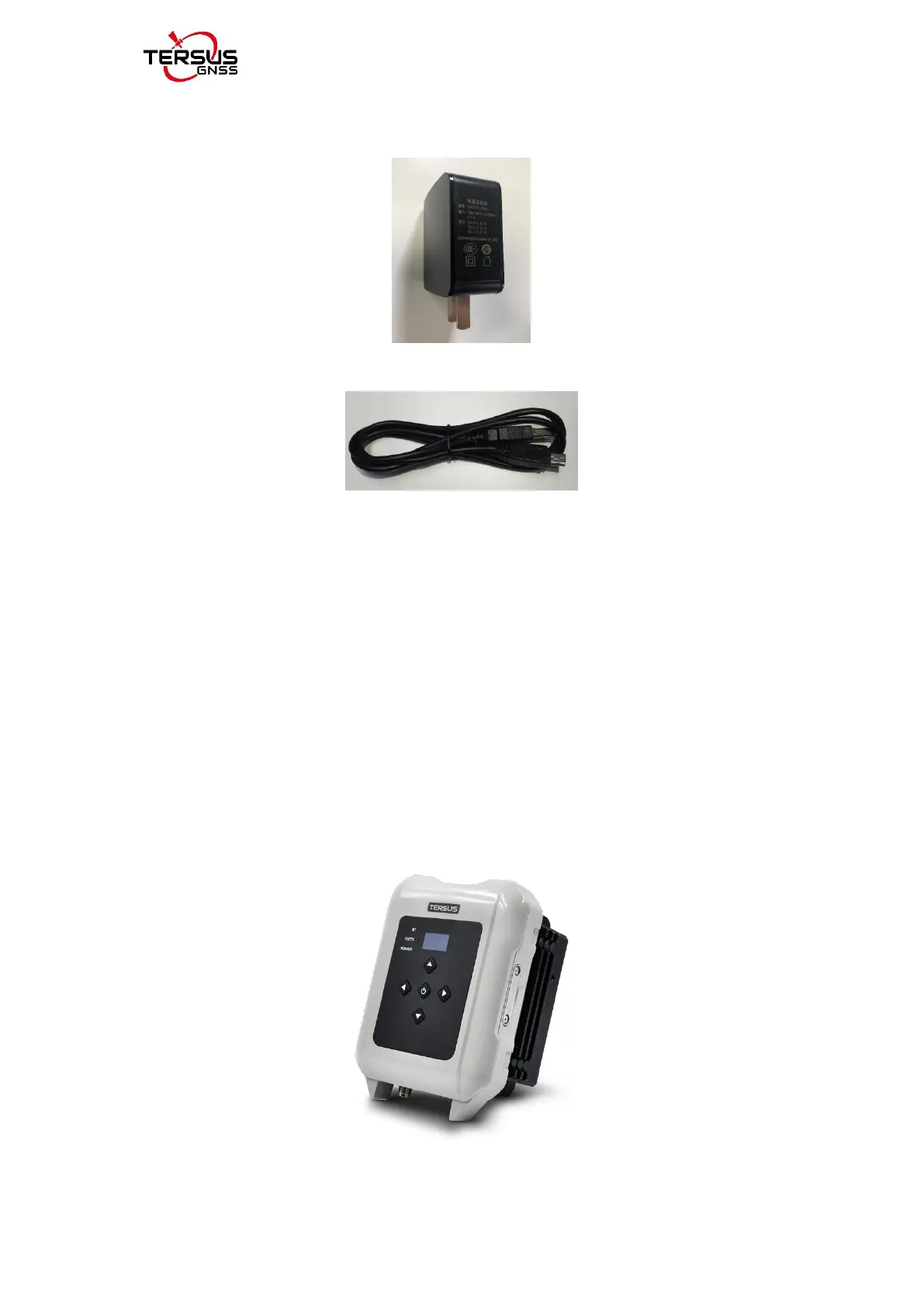

TC50 Charger (5V/1.67A, 7V/1.67A, 9V/1.67A)

Type-C Cable

Functions:

1. Connect to the USB port of computer for data downloading;

2. Connect to the charger to charge TC50 controller.

1.3.5 External radio for Oscar

The external radio RS400H3 for Oscar below is to be installed via serial data

port, and it can help Oscar transmitting signals farther than internal radio.

Figure 1.19 External radio for Oscar
