User Manual for Oscar GNSS Receiver v2.4

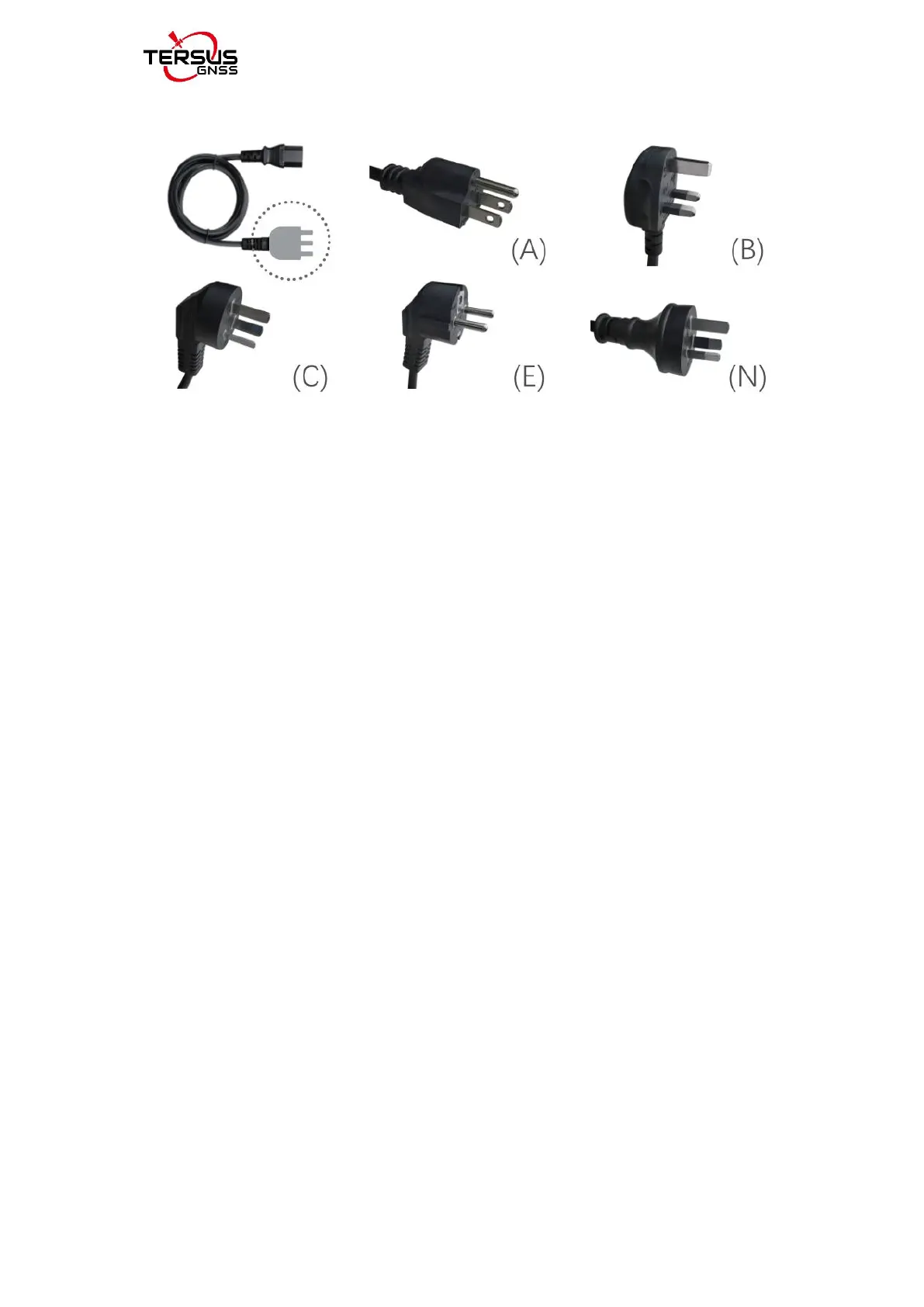

Figure 1.12 CN20 Charger Adapter Cable (A/B/C/E/N)

Note: The model of the CN20 charger adapter cable will be delivered

according to customer requirements.

A: American, B: British, C: Chinese, E: European, N: Australian

Charge the battery completely before using it for the first time. The charging

takes approximately 3 hours per battery at room temperature. If the battery has

been stored for longer than three months, charge it before use.
