User Manual for Oscar GNSS Receiver v2.4

Table 4.2 Devices of Oscar as a base internal radio mode

NO.

Device Name

Oscar GNSS receiver

Height measure accessory

410-470MHz radio whip antenna

Extension pole 30cm

Tribrach

Tripod

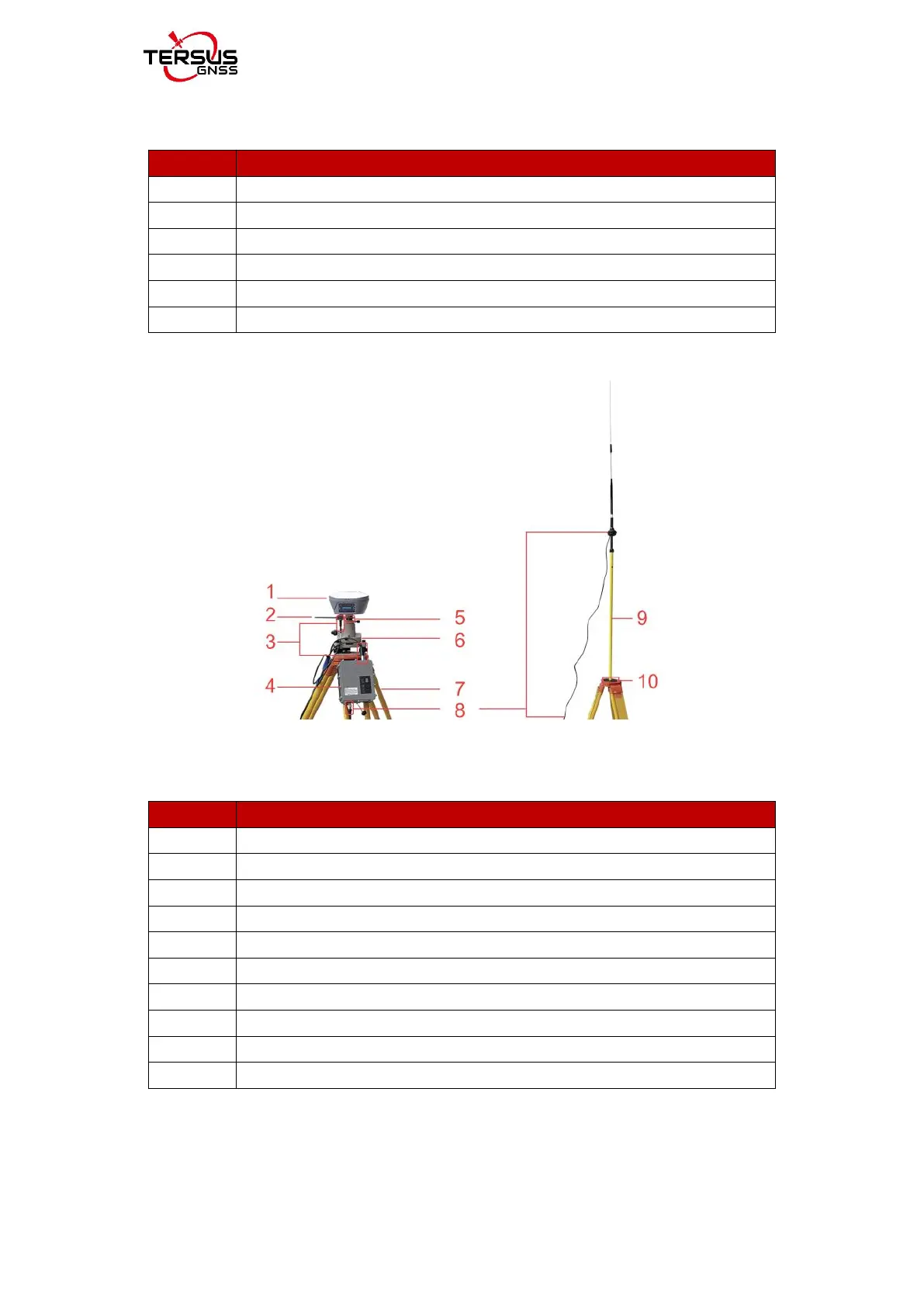

Figure 4.3 Oscar as a base - external radio

Table 4.3 Devices of Oscar as a base external radio mode

NO.

Device Name

Oscar GNSS receiver

Height measure accessory

Serial-5pin to External-Radio-DC-5pin & Bullet-DC

External Radio RS400H2

GNSS antenna connector

Tribrach

Tripod

High Gain Radio Antenna

Telescopic pole for radio antenna

Metal plate for radio antenna

Note: Bullet-DC connects to ‘Bullet-DC to Alligator Clips’, and then clip to
