User Manual for Oscar GNSS Receiver v2.4

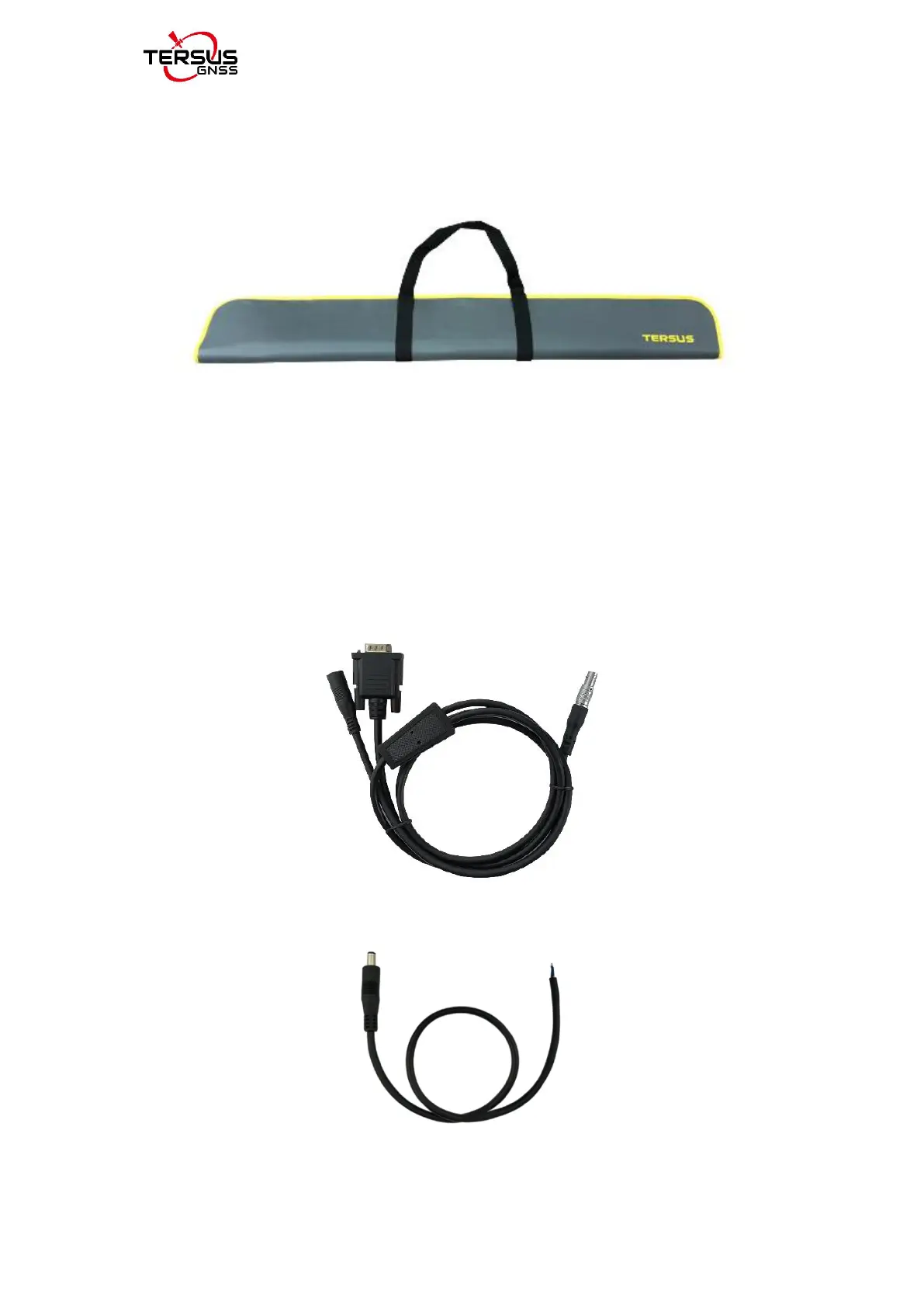

The tool bag below is to store high gain radio antenna and telescopic pole for

radio antenna.

Figure 1.35 Tool bag

The Serial-5pin to DC JACK & DB9 Male cable and the DC JACK male with

two wires (the brown wire connects to power and the blue wire connects to

ground) below are optional. It is to power Oscar using external power source

instead of the BN20 battery.

Figure 1.36 Serial-5pin to DC JACK & DB9 male cable

Figure 1.37 DC JACK male with two wires
