Texas Instruments C2000 Workshop Guide And Lab Manual

ePWM
7 - 8 C2000 Microcontroller Workshop - Control Peripherals

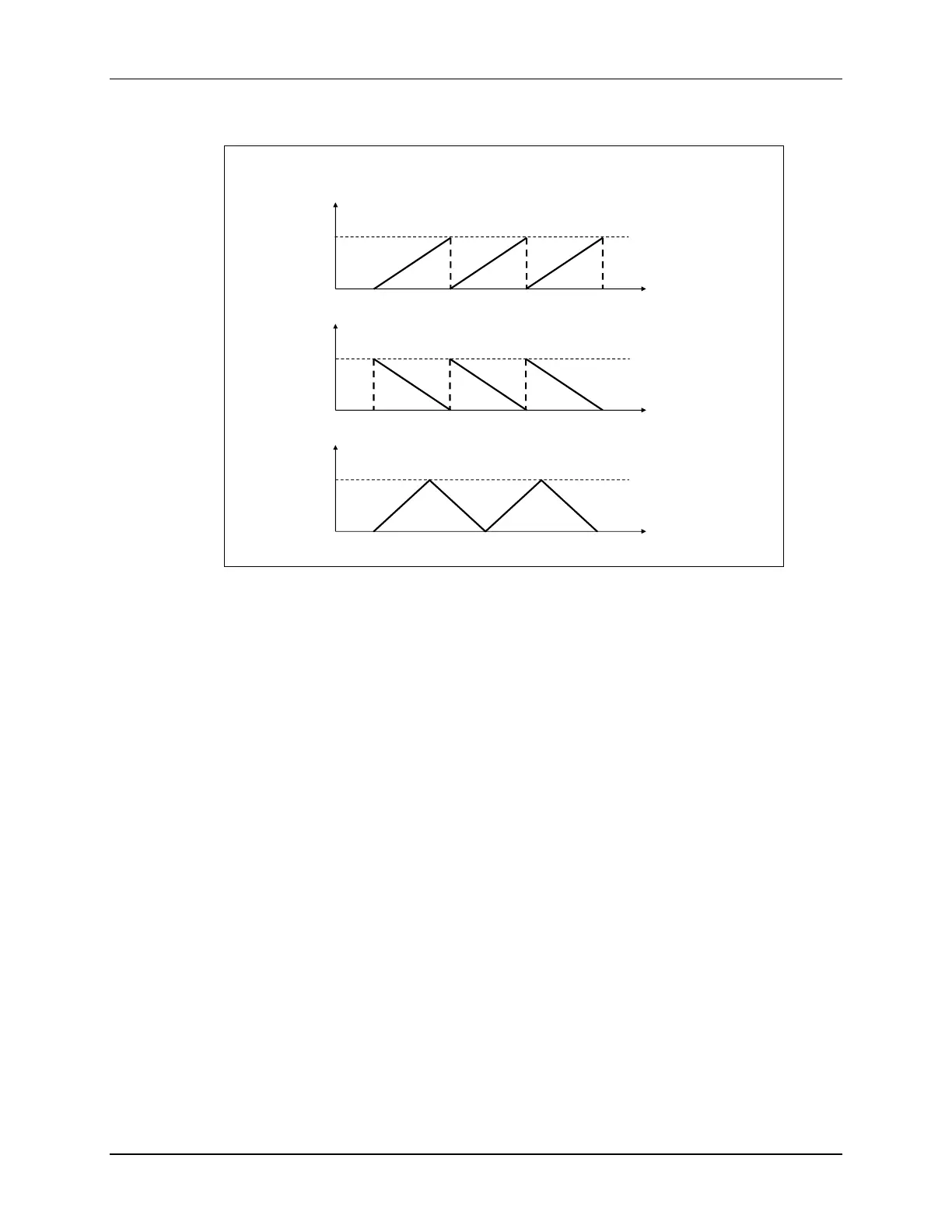

ePWM Time-Base Count Modes
TBCTR
TBCTR
TBCTR
TBPRD
TBPRD
TBPRD
Count Up Mode
Count Down Mode
Count Up and Down Mode
Asymmetrical
Waveform
Asymmetrical
Waveform
Symmetrical
Waveform
The upper two figures show the time-base counter in the count-up mode and countdown mode.
These modes are used to generate asymmetrical waveforms. The lower figure shows the time-
base counter in the count up and down mode. This mode is used to generate symmetrical
waveforms.
