Docking Station
C2000 Microcontroller Workshop - Appendix A - Experimenter's Kit A - 11
Note: The internal emulation logic on the Docking Station routes through the FT2232 USB
device. By default this device enables the USB connection to perform JTAG
communication and in parallel create a virtual serial port (SCI/UART). As shipped, the
C2000 device is not connected to the virtual COM port and is instead connected to J3.

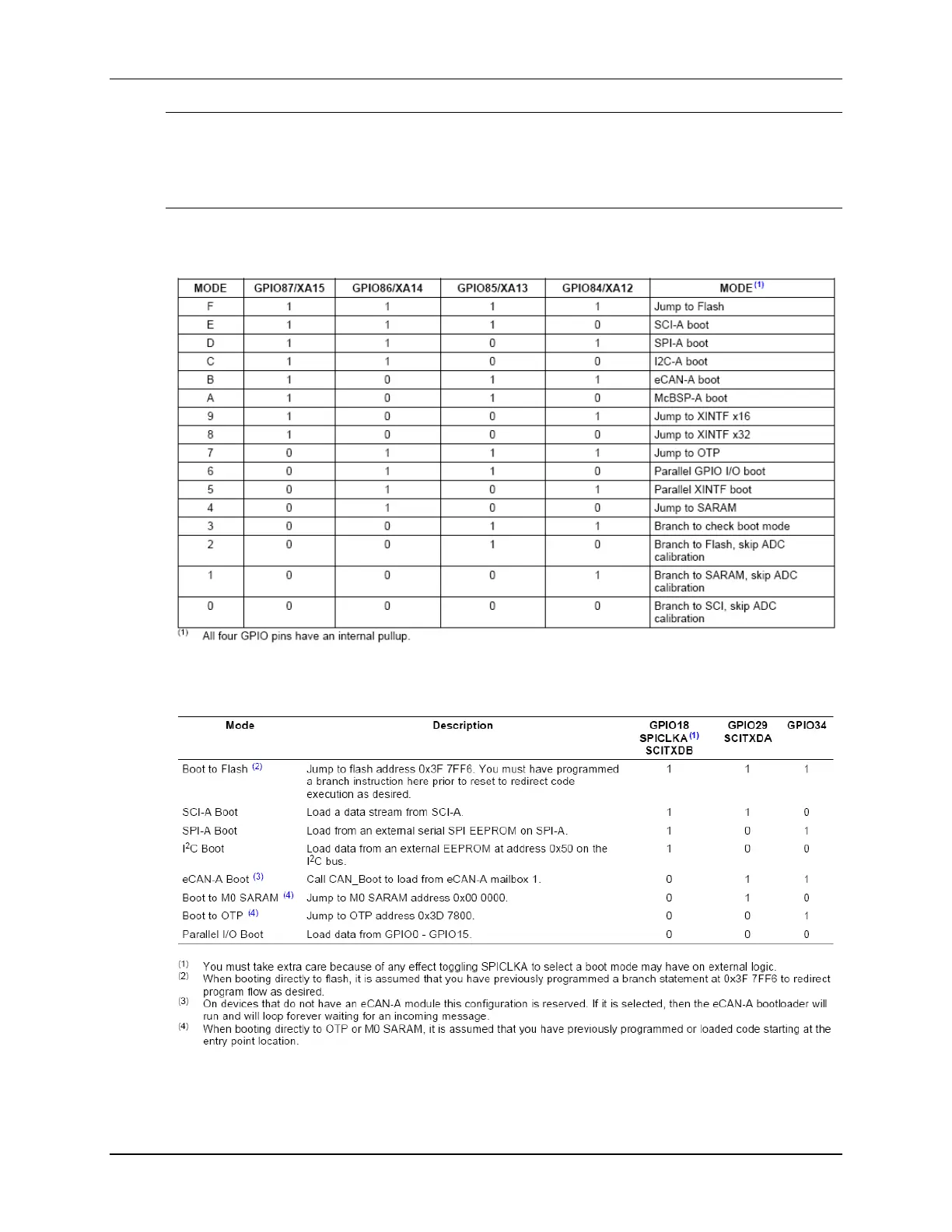

F2833x Boot Mode Selection
F280xx Boot Mode Selection
