Docking Station
A - 10 C2000 Microcontroller Workshop - Appendix A - Experimenter's Kit

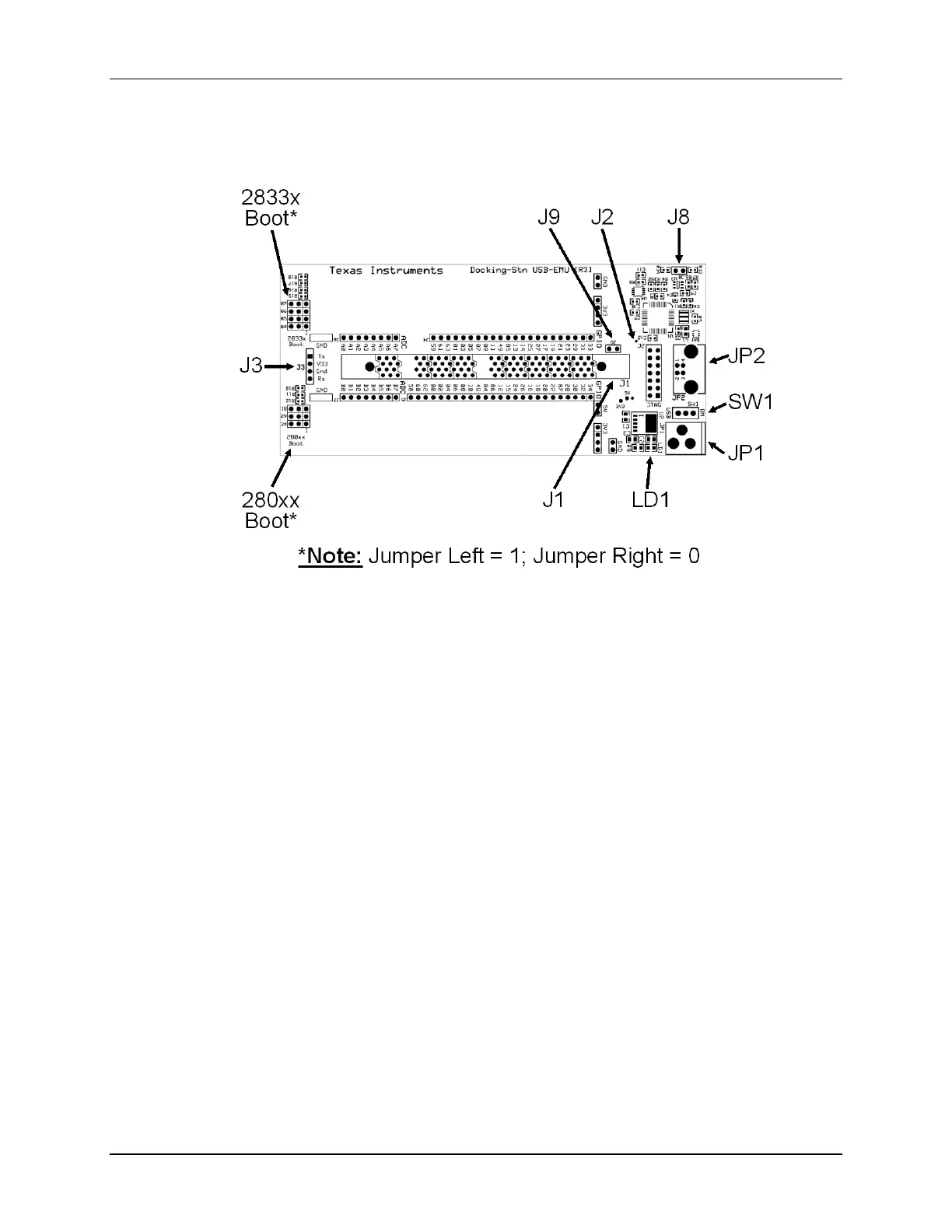

Docking Station
SW1 / LD1
SW1 – USB: Power from USB; ON – Power from JP1
LD1 – Power-On indicator
JP1 / JP2
JP1 – 5.0 V power supply input
JP2 – USB JTAG emulation port
J1 / J2 /J3 / J8 / J9
J1 – ControlCARD 100-pin DIMM socket
J2 – JTAG header connector
J3 – UART communications header connector
J8 – Internal emulation enable/disable jumper (NO jumper for internal emulation)
J9 – User virtual COM port to C2000 device (Note: ControlCARD would need to be
modified to disconnect the C2000 UART connection from header J3)
