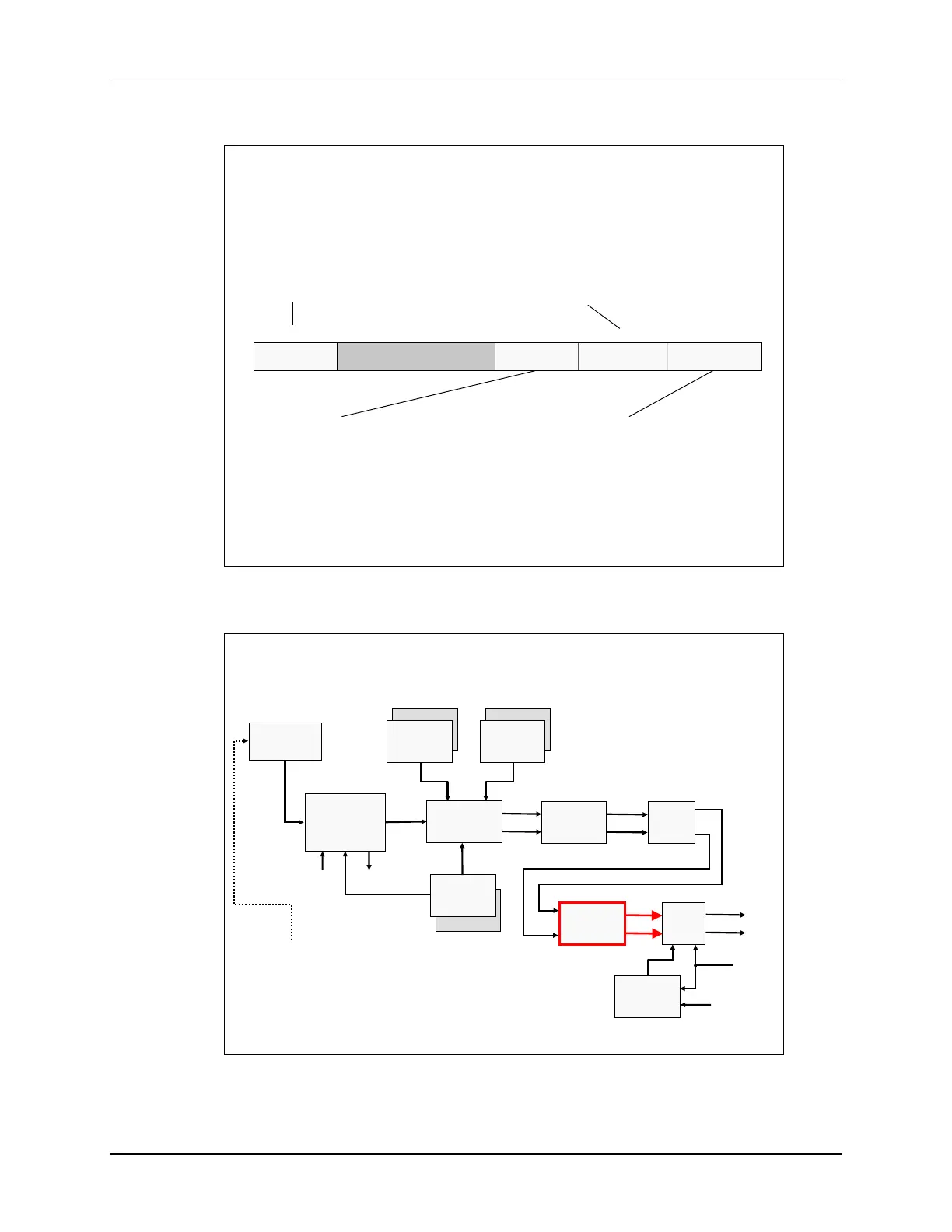

ePWM Dead Band Control Register
EPwmxRegs.DBCTL
Polarity Select
00 = active high
01 = active low complementary (RED)
10 = active high complementary (FED)
11 = active low
Out-Mode Control
00 = disabled (DBM bypass)
01 = PWMxA = no delay
PWMxB = FED
10 = PWMxA = RED
PWMxB = no delay
11 = RED & FED (DBM fully enabled)
In-Mode Control
00 = PWMxA is source for RED and FED
01 = PWMxA is source for FED
PWMxB is source for RED
10 = PWMxA is source for RED
PWMxB is source for FED
11 = PWMxB is source for RED and FED
OUT_MODEPOLSEL
1 - 014 - 6
reserved
3 - 2
IN_MODE
5 - 4
HALFCYCLE
15
Half Cycle Clocking
0 = full cycle clocking
(TBCLK rate)
1 = half cycle clocking
(TBCLK*2 rate)
