Texas Instruments C2000 Workshop Guide And Lab Manual

Interrupts
C2000 Microcontroller Workshop - Reset and Interrupts 4 - 9
Interrupts
Interrupt Sources
ePWM, eCAP, eQEP,
ADC, SCI, SPI, I2C,
eCAN, McBSP,
DMA, CLA, WD
Internal Sources
External Sources
XINT1 – XINT3
TZx
XRS
NMI
F28x CORE
INT1
INT13
INT2
INT3
INT12
INT14
XRS
•
•
•
PIE
(Peripheral
Interrupt
Expansion)
TINT2
TINT1
TINT0

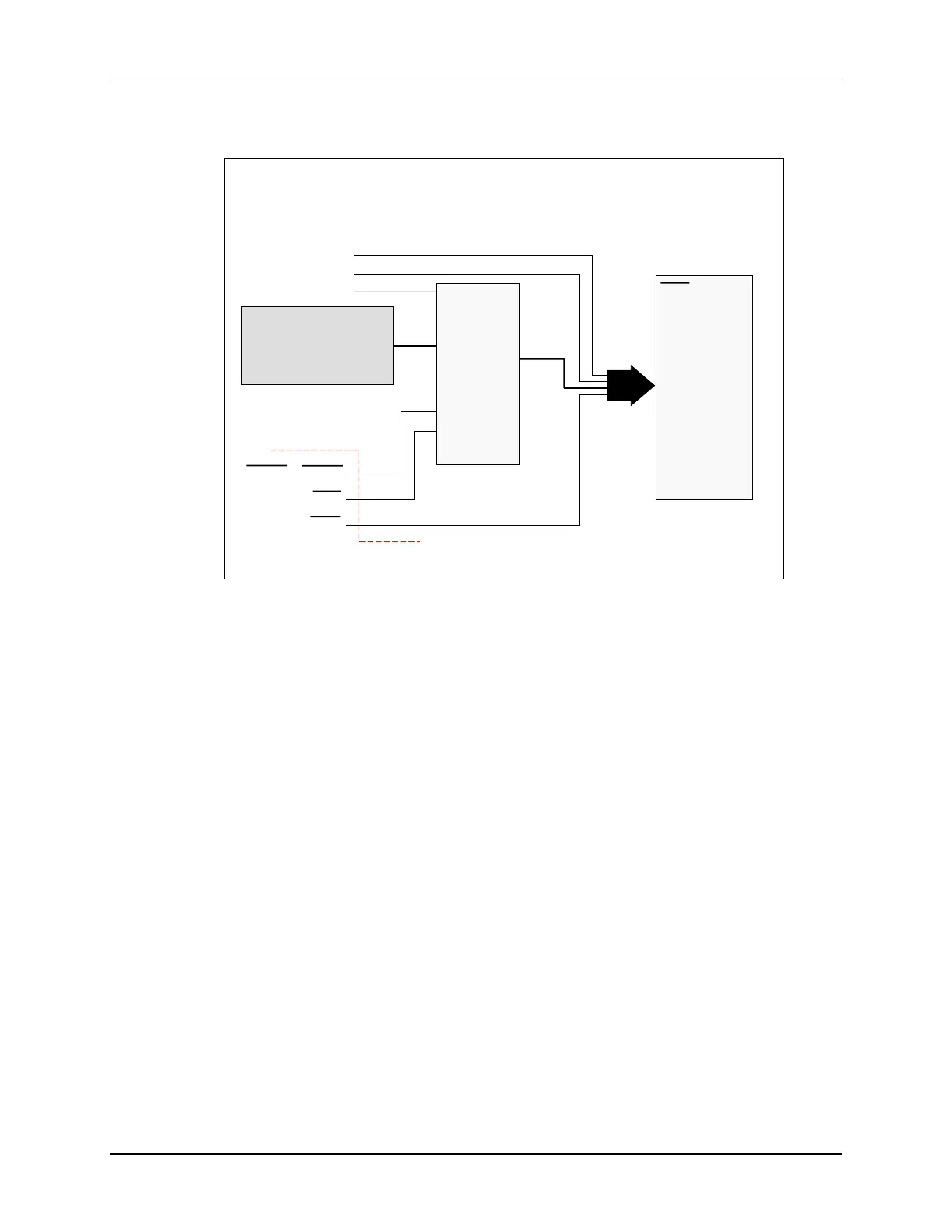

The internal interrupt sources include the general purpose timers 0, 1, and 2, and all of the
peripherals on the device. External interrupt sources include the three external interrupt lines, the
trip zones, and the external reset pin. The core has 14 interrupt lines. As you can see, the number
of interrupt sources exceeds the number of interrupt lines on the core. The PIE, or Peripheral
Interrupt Expansion block, is connected to the core interrupt lines 1 through 12. This block
manages and expands the 12 core interrupt lines, allowing up to 96 possible interrupt sources.
