Emulation and Analysis Block
12 - 4 C2000 Microcontroller Workshop - System Design
On-Chip Emulation Analysis Block:
Capabilities
Two hardware analysis units can be configured to provide
any one of the following advanced debug features:
Halt program execution after a
specific value is written to a variable
1 Address Watchpoint with Data
Halt on a specified instruction only
after some other specific routine has
executed
1 Pair Chained Breakpoints
Halt on a specified instruction
(for debugging in Flash)
2 Hardware Breakpoints
A memory location is getting
corrupted; halt the processor when
any value is written to this location
2 Address Watchpoints

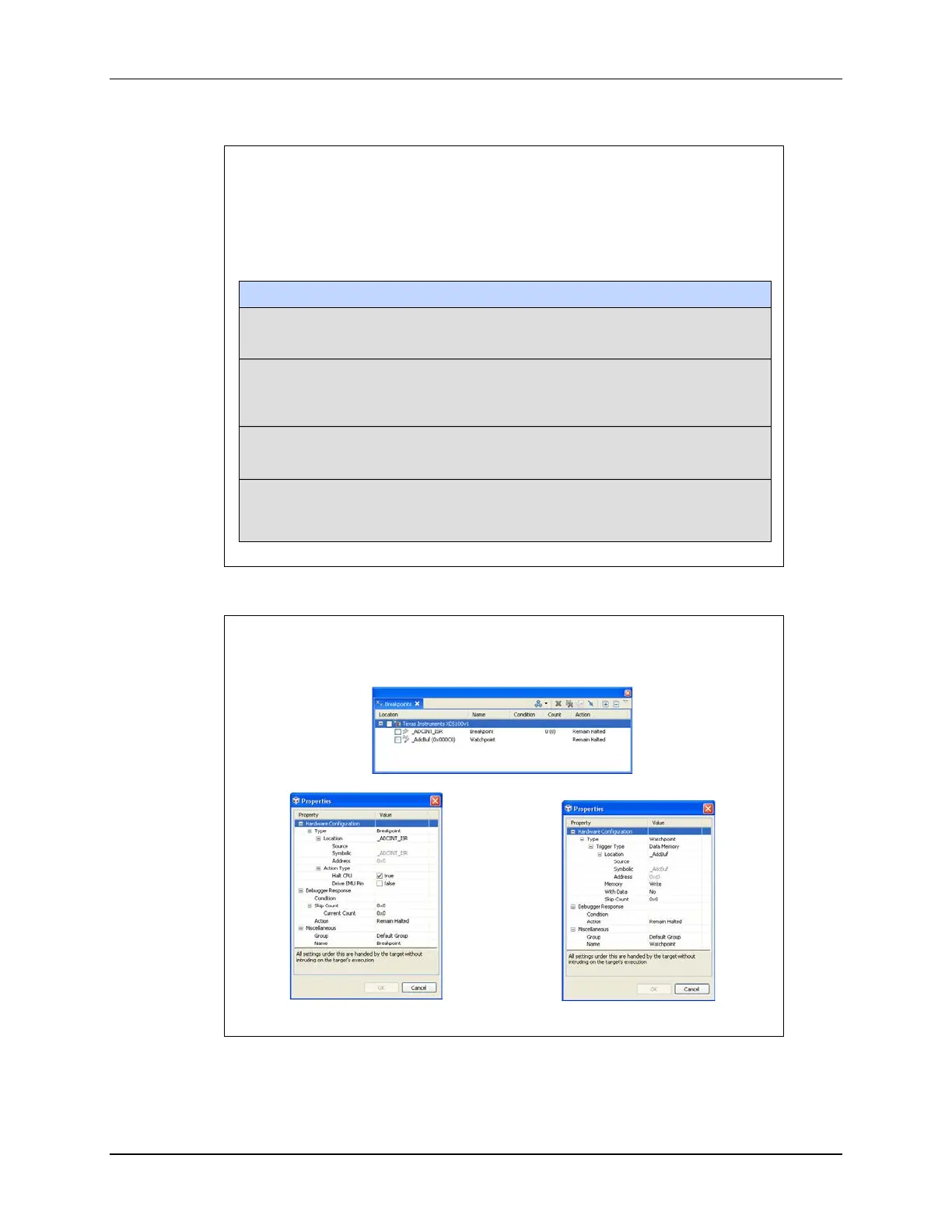

Debug Activity
Analysis Configuration
⇒
⇒
⇒
⇒
On-Chip Emulation Analysis Block:
Hardware Breakpoints and Watchpoints
View  Breakpoints
Hardware Breakpoint
Properties
Hardware Watchpoint
Properties
