Serial Peripheral Interface (SPI)
C2000 Microcontroller Workshop - Communications 13 - 5

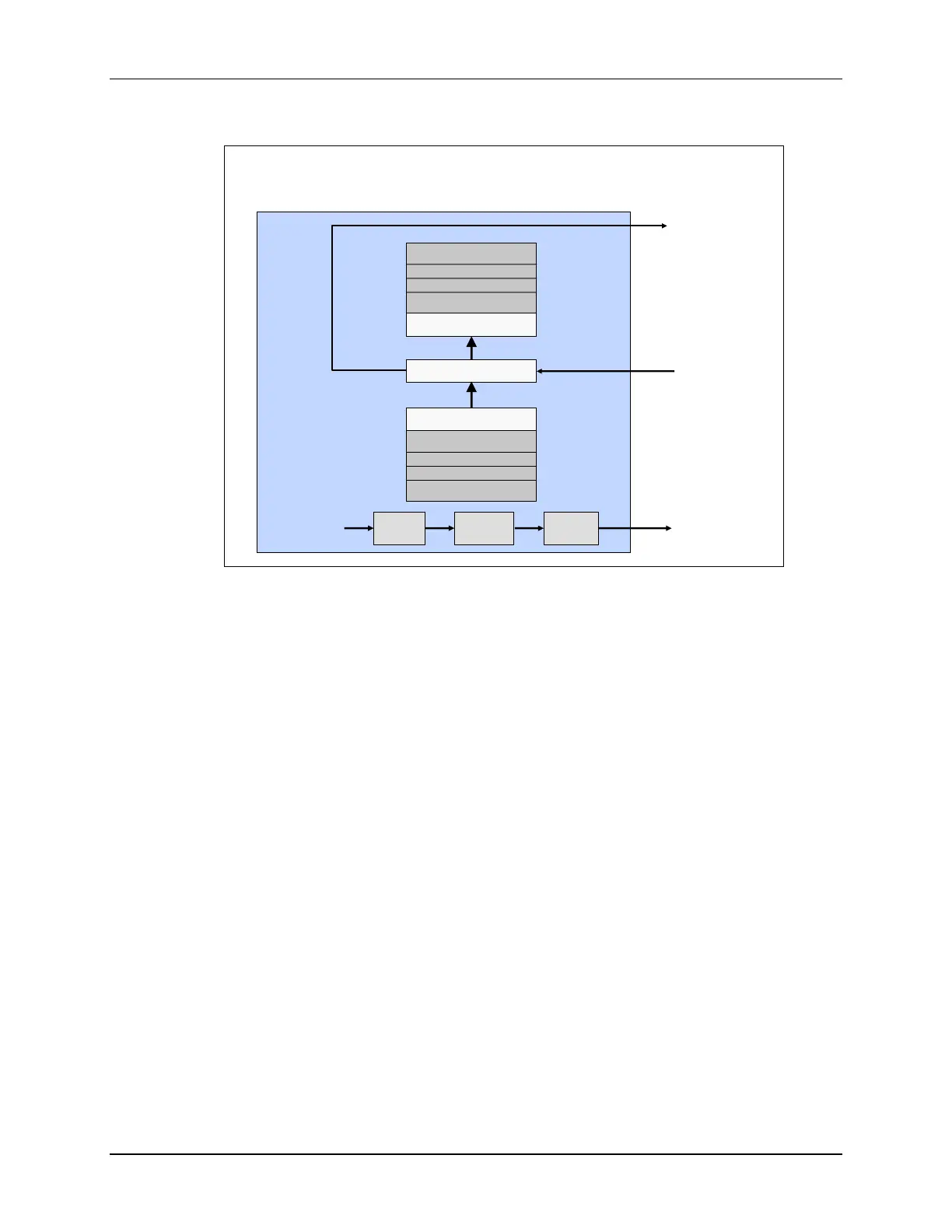

SPI Block Diagram
SPIRXBUF.15-0
SPIDAT.15-0
SPICLK
SPISOMI
SPISIMO
LSPCLK
baud
rate
clock
polarity
clock
phase
C28x - SPI Master Mode Shown
SPITXBUF.15-0
LSB
MSB
TX FIFO_0
TX FIFO_3
RX FIFO_0
RX FIFO_3
SPI Transmit / Receive Sequence
1. Slave writes data to be sent to its shift register (SPIDAT)
2. Master writes data to be sent to its shift register (SPIDAT or SPITXBUF)
3. Completing Step 2 automatically starts SPICLK signal of the Master
4. MSB of the Master’s shift register (SPIDAT) is shifted out, and LSB of the Slave’s shift
register (SPIDAT) is loaded
5. Step 4 is repeated until specified number of bits are transmitted
6. SPIDAT register is copied to SPIRXBUF register
7. SPI INT Flag bit is set to 1
8. An interrupt is asserted if SPI INT ENA bit is set to 1
9. If data is in SPITXBUF (either Slave or Master), it is loaded into SPIDAT and transmission
starts again as soon as the Master’s SPIDAT is loaded
