C2000™ Microcontroller Workshop
C2000 Microcontroller Workshop - Introduction v
lab directions are written based on the version of Code Composer Studio as shown on this slide.
The workshop installer will automatically install the lab files, solution files, workshop manual,
and documentation.

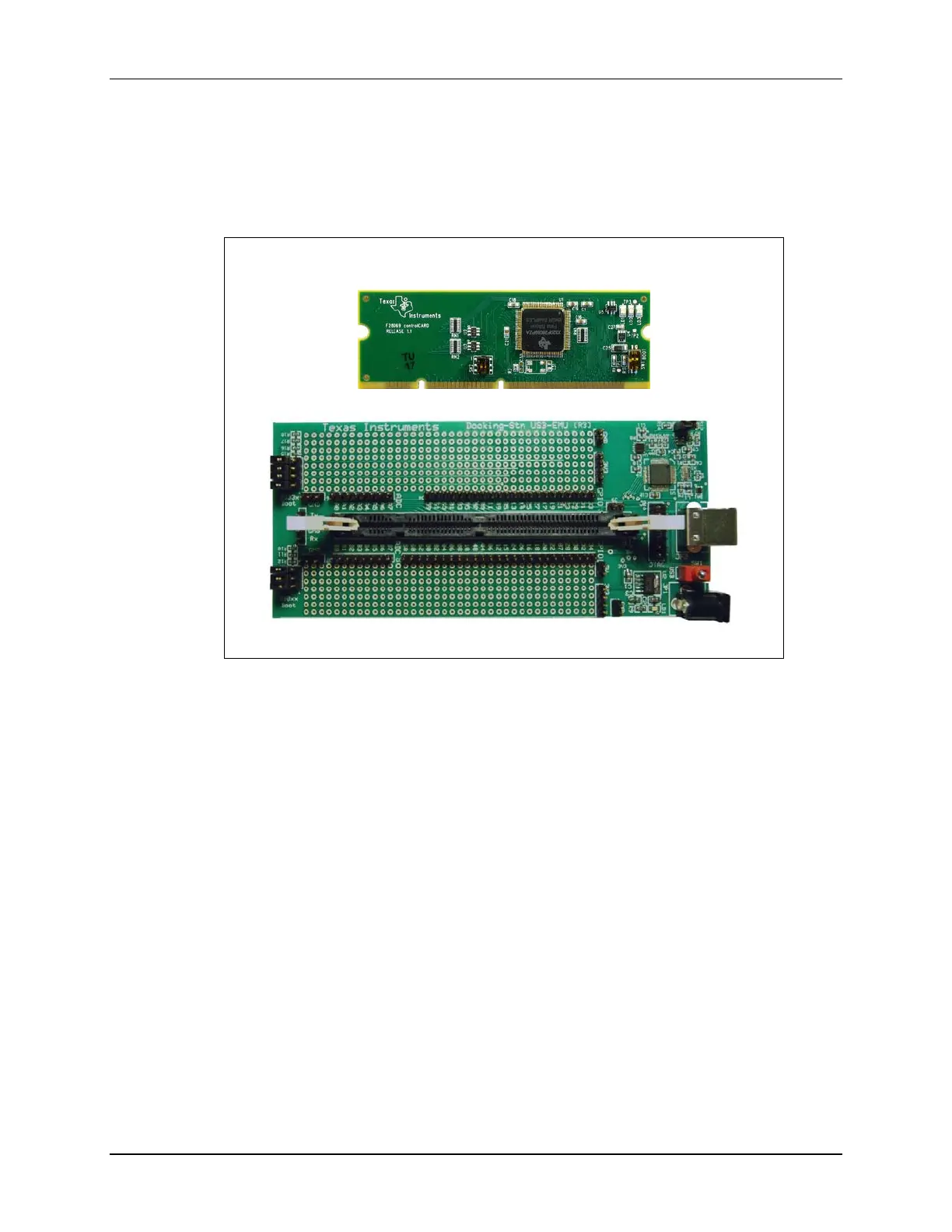

C2000™ Experimenter Kit
C2000™ Experimenter Kit
controlCARD
USB Docking Station
The development tool for this workshop will be the TMS320F28069 Experimenter’s Kit. The kit
consists of a controlCARD and USB Docking Station. It is a self-contained system that plugs
into a free USB port on your computer. The USB port provides power, as well as communicates
to the onboard JTAG emulation controller. LED LD1 on the Docking Station and LED LD1 on
the controlCARD illuminates when the board is powered. LED LD2 on the controlCARD is
connected to GPIO34. We will be using this LED as a visual indicator during the lab exercises.
The GPIO and ADC lines from the F28069 device are pinned out to the Docking Station headers.
We will be using a jumper wire to connect various GPIO and ADC lines on these headers.
