Descriptor The Descriptor screen allows the user to enter the descriptor for the selected
analog input channel. The descriptor is used in datalogging and streaming
data to report what data is being sent out. The descriptor may be from 1 to
3 characters in length, and defaults to IN1to IN8 (user input channel
number).
• In the Main Menu, choose Instrument Controls > I/O Configuration >
Analog Input Config > Select Channel > Descriptor.

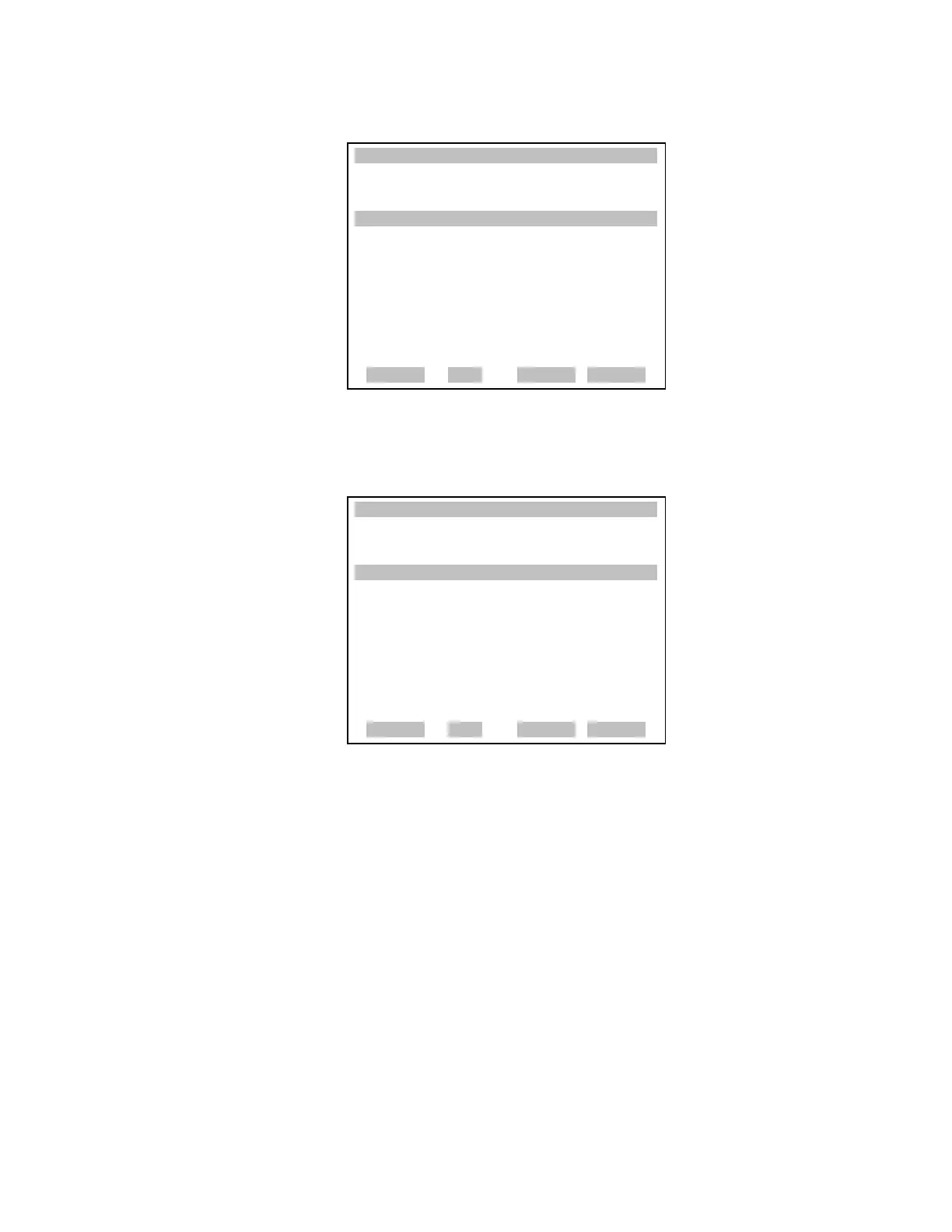

XXLO WCONCENTRATIONXXLO W
CO 15.80 PPM
SAMPLE 12:34 ALARMx
ANALOG INPUT CHANNELS:
>CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 4
CHANNEL 5
CHANNEL 6
CHANNEL 7
ª
RANGE AVG DIAGS ALARM
CHANNEL 8
XXLO WCONCENTRATIONXXLO W
CO 15.80 PPM
SAMPLE 12:34 ALARMx
ANALOG INPUT 01 CONFIG:
>DESCRIPTOR IN1
UNITS V
DECIMAL PLACES 2
TABLE POINTS 2
POINT 1
POINT 2
POINT 3
ª
RANGE AVG DIAGS ALARM
POINT 4
POINT 5
POINT 6
POINT 7
POINT 8
POINT 9
POINT 10
