Surveying with the Receiver
P/N 7010-0557 www.topconpositioning.com
3-13
NOTICE
NOTICE
The reference geodetic coordinates specified on this tab
relate to the antenna L1 phase center.

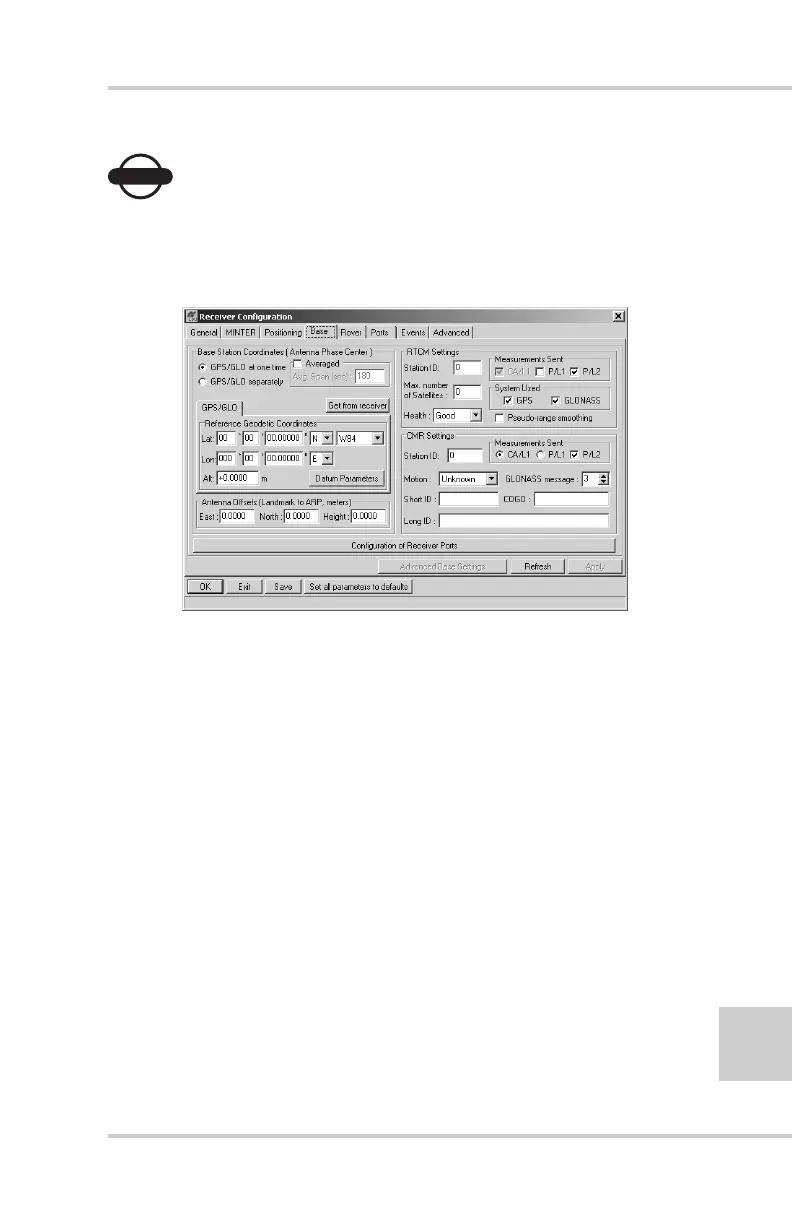

Figure 3-8. Base Tab Configuration
10. Click the Ports tab and set the following port
parameters (Figure 3-9 on page 3-14). Use serial port C
for an internal Spread Spectrum 915 MHz modem.
• Output drop-down list – select type and format of
differential corrections.
• Period (sec) – enter interval at which receiver will
generate differential corrections.
• Baud rate drop-down list – select a baud rate (i.e.,
the rate at which differential messages will be
transmitted from receiver to modem).
• RTS/CTS – select to enable handshaking.
