Toro Multi Pro 1750 Installation Instructions

RemovingtheFlowMeterfromthe
ValveManifolds
1.Removetheangeclampthatsecuresthebarbed
angettingoftheowmeterhosetotheowmeter
(Figure16).

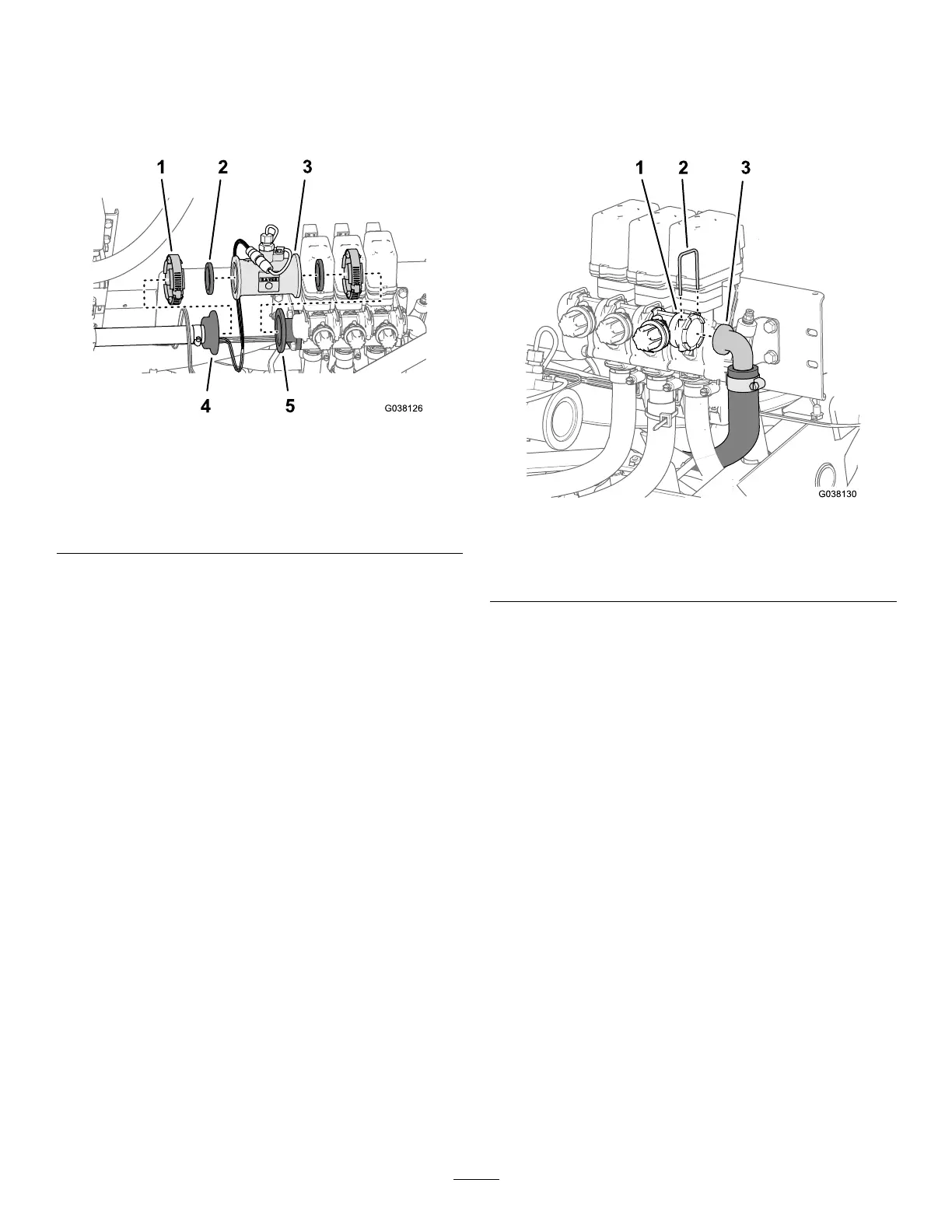

Figure16
1.Flangeclamp
4.Barbedangetting
(ow-meterhose)
2.Gasket5.Adaptertting(left
boom-sectionvalve)
3.Flowmeter
2.Removetheangeclampthatsecuretheowmeter
totheadapterttingattheleftboom-sectionvalve
(Figure16).
3.Removetheowmeterand2gasketsfromthevalve
manifolds(Figure16).
Note:Settheowmeteraside—donotremovethe
electricalconnector;retaintheangeclampsand
gasketsforinstallationinInstallingtheFlowMeter
(page26).
RemovingtheBypassHosefromthe
Boom-SectionValves
1.Removetheretainerthatsecuresthe90°barbedtting
ofthebypasshosefromthesocketttingofthebypass
valveattherightboomsectionvalve(Figure17).
Figure17
1.Bypassmanifold
(boom-sectionvalves)
3.Bypasshose
2.Retainer
2.Removethebypasshosefromthebypassvalve(Figure
17).
12
