Multi Pro 1750Page 6 − 28Spray System

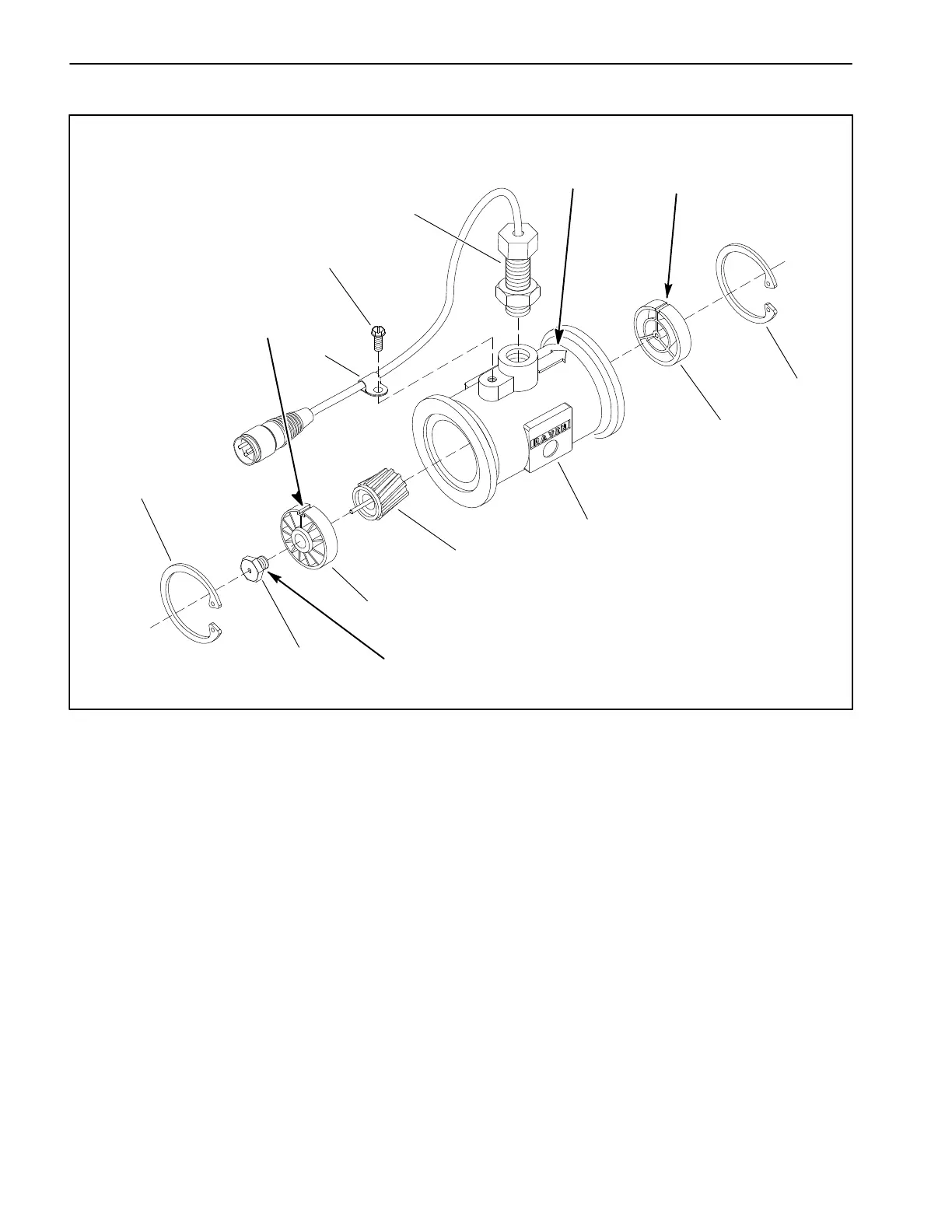

Flowmeter Service
1. Flowmeter body
2. Rotor/magnet assembly
3. Upstream hub and bearing
4. Downstream hub
5. Retaining ring (2)
6. Sensor assembly
7. Turbine stud with bearing
8. Cable clamp
9. Screw
Figure 15
2
3
7
8
9
1
5
6
4
5
Notch
Sealent
Notch
Thread
Note Arrow
Direction
