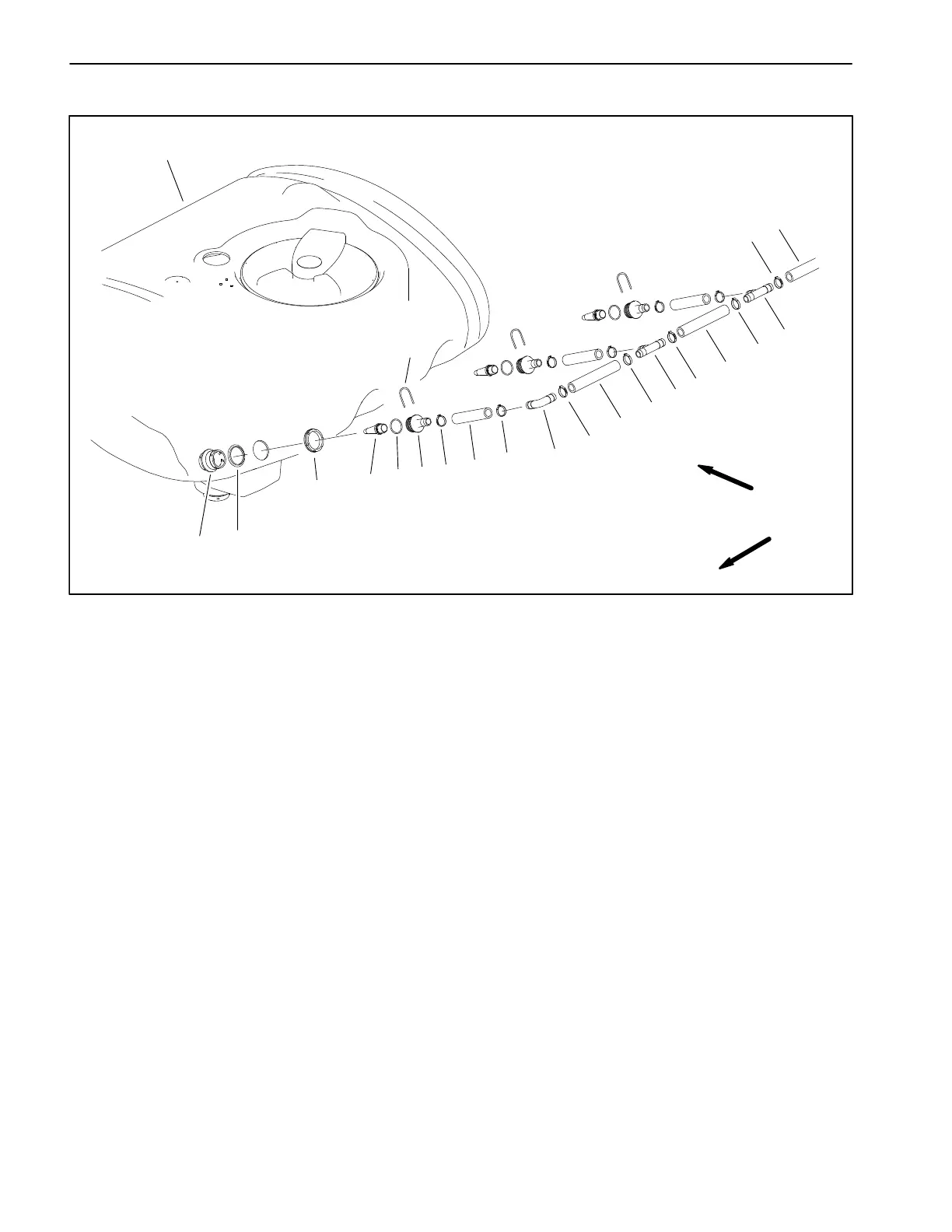

Agitation Hose Assembly
1. Spray Tank
2. Bulkhead fitting (3)
3. Bulkhead gasket (3)
4. Bulkhead nut (3)
5. Agitation nozzle (3)
6. O−Ring (3)
7. Straight fitting (3)
8. Fork (3)
9. Hose clamp (12)
10. Hose (3)
11. Elbow
12. Hose (2)
13. Tee (2)
14. Hose (from agitation throttle valve)
Figure 26
FRONT
RIGHT
2
3
4
5
6
7
9
10
11
12
9
9
9
9
9
9
12
13
13
14
1
8
Disassembly (Fig. 26)
IMPORTANT: Make sure to remove and neutralize
chemicals from tank and other components before
disassembly. Wear protective clothing, chemical re-
sistant gloves and eye protection during repair.
1. Park machine on a level surface, stop spray pump,
stop engine and engage parking brake. Remove key
from ignition switch.
2. Drain spray tank.
3. Remove hoses from bulkhead fittings in tank.
4. Disassemble agitation hose components as re-
quired. Discard all removed O−rings and gaskets.
Assembly (Fig. 26)
NOTE: Replace all removed O−rings and gaskets.
Coat all O−rings with vegetable oil before installation to
reduce the chance of damage during assembly.
1. Assembly agitation hose components.
2. Install hoses to bulkhead fittings in tank.
3. Check spray system for leaks. Repair all leaks be-
fore returning the sprayer to service.
