Toro Multi Pro 1750 Service Manual

Multi Pro 1750Page 7 − 16Drive Train

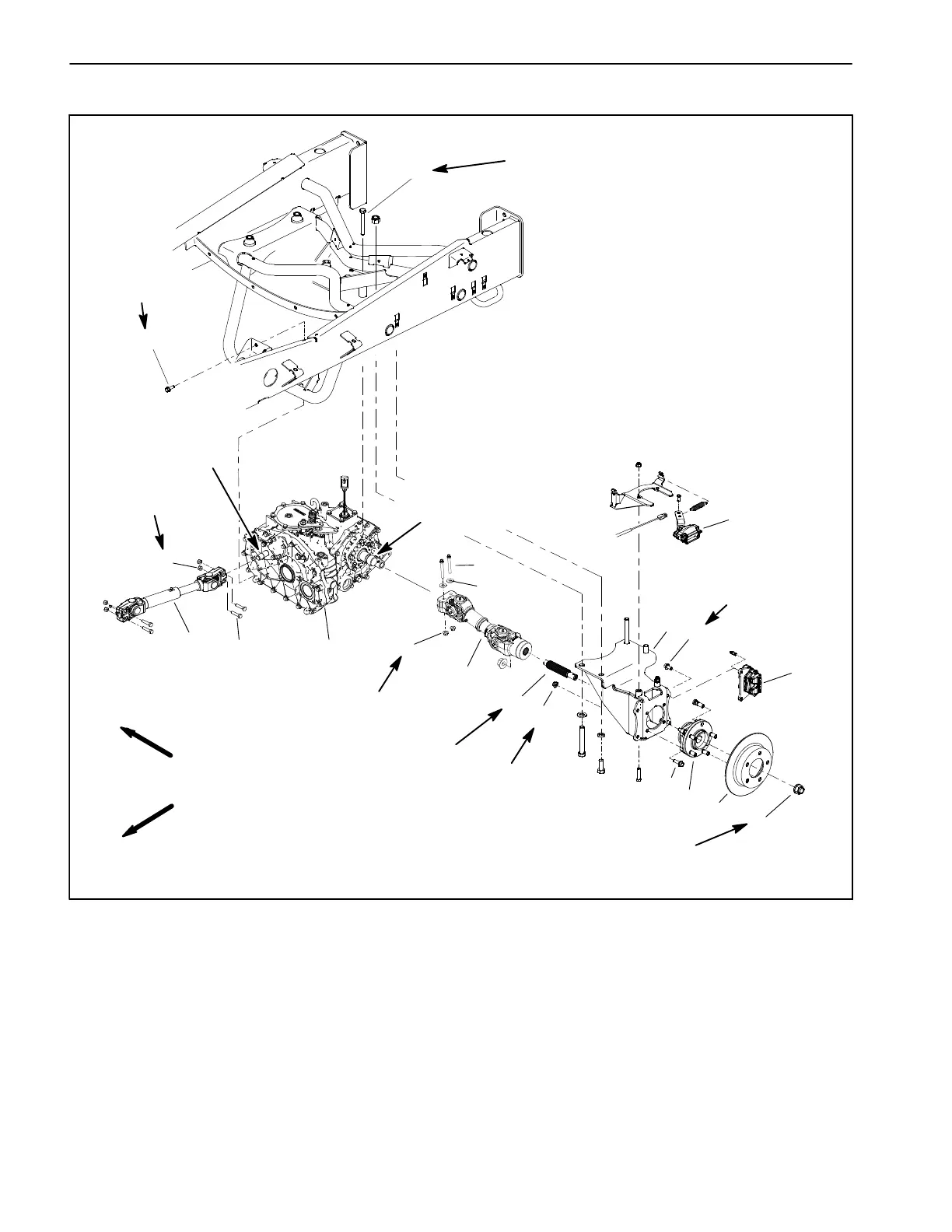

Transaxle
1. Rear wheel driveshaft assembly (2)
2. Cap screw (2)
3. Flat washer (2)
4. Flange nut (2)
5. Transaxle driveshaft assembly
6. Cap screw (2)
7. Lock nut (2)
8. Transaxle assembly
9. Cap screw (2)
10. Flange head screw (4)
11. Rear brake caliper
12. Parking brake caliper (LH shown)
13. Wheel bearing hub
14. Hub support
15. Brake rotor
16. Spindle nut
17. Cap screw (4)
18. Flange nut (4)
19. Flange head screw (2)
20. Splined shaft
Figure 11
2
3
6
8
9
10
13
1
7
12
14
4
11
5
FRONT
RIGHT
Antiseize
Lubricant
Antiseize
Lubricant
90 to 120 in−lb
(10.2 to 13.5 N−m)
35 to 40 ft−lb
(48 to 54 N−m)
45 to 55 ft−lb
(62 to 74 N−m)
18 to 22 ft−lb
(25 to 29 N−m)
15
16
170 to 180 ft−lb
(230 to 244 N−m)
Staked
17
18
35 to 40 ft−lb
(48 to 54 N−m)
19
35 to 40 ft−lb
(48 to 54 N−m)
20
Antiseize
Lubricant
