Multi Pro 1750Chassis Page 8 − 24

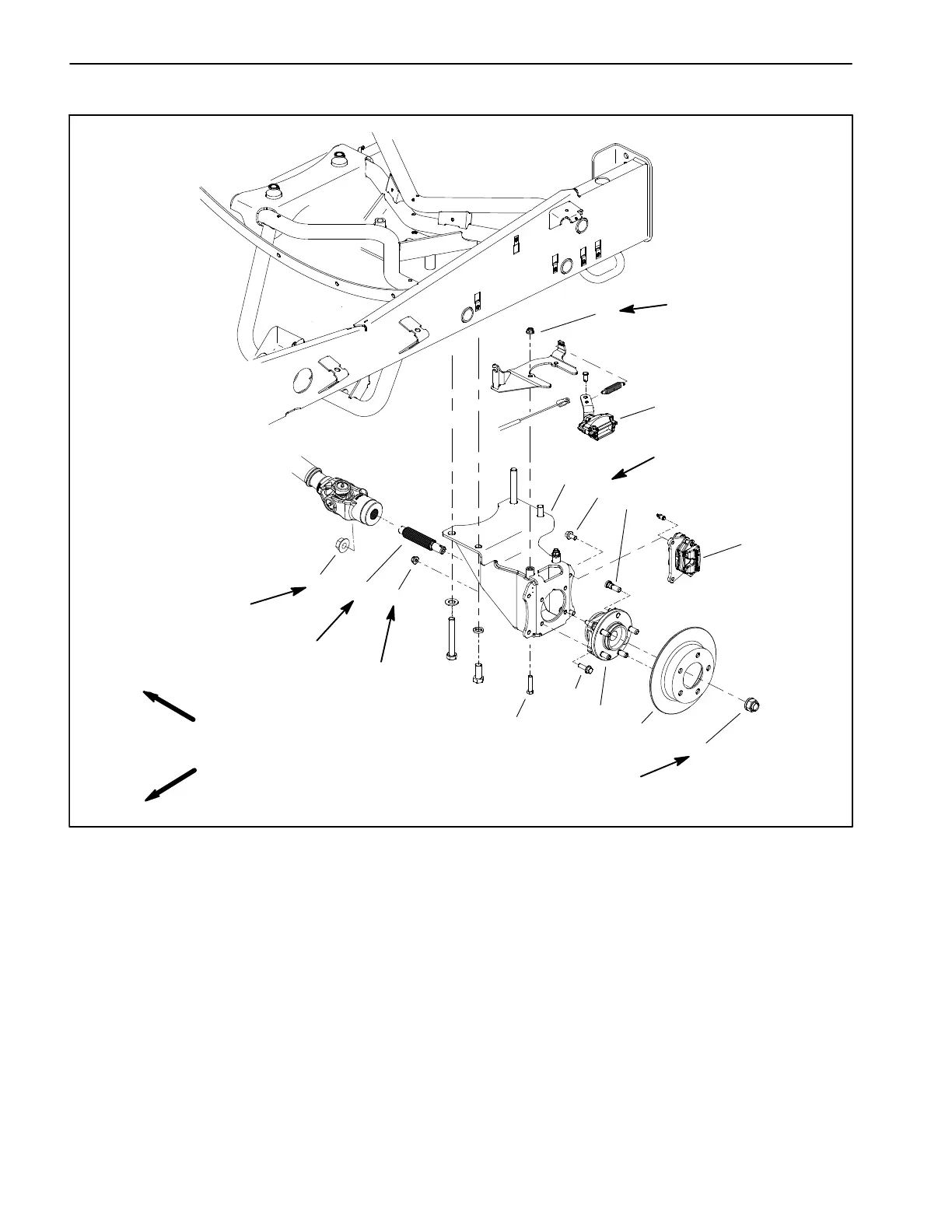

Rear Wheel Hubs
1. Rear brake caliper
2. Parking brake caliper (LH shown)
3. Brake rotor
4. Flange head screw (2)
5. Cap screw (2)
6. Flange nut (2)
7. Spindle nut
8. Wheel bearing hub
9. Cap screw (4)
10. Flange nut (4)
11. Splined shaft
12. Flange nut
13. Hub support
14. Drive stud
Figure 16
8
2
13
1
FRONT
RIGHT
3
7
170 to 180 ft−lb
(230 to 244 N−m)
Staked
9
10
35 to 40 ft−lb
(48 to 54 N−m)
4
35 to 40 ft−lb
(48 to 54 N−m)
Loctite #271
75 to 80 ft−lb
(102 to 108 N−m)
12
5
6
35 to 40 ft−lb
(48 to 54 N−m)
11
Antiseize
Lubricant
14
NOTE: If rear wheel hub wear or damage exists, re-
placement of the wheel hub assembly is necessary.
Rear wheel hubs on the Multi Pro 1750 are not rebuild-
able.
