Multi Pro 1750Chassis Page 8 − 30
Steering Assembly
11
11
12
12
12
6
6
6
13
14
1
2
3
4
5
5
6
6
7
7
8
8
9
9
10
20 to 25 ft−lb
(27 to 34 N−m)
80 to 90 ft−lb
(108 to 122 N−m)
20 to 25 ft−lb
(27 to 34 N−m)

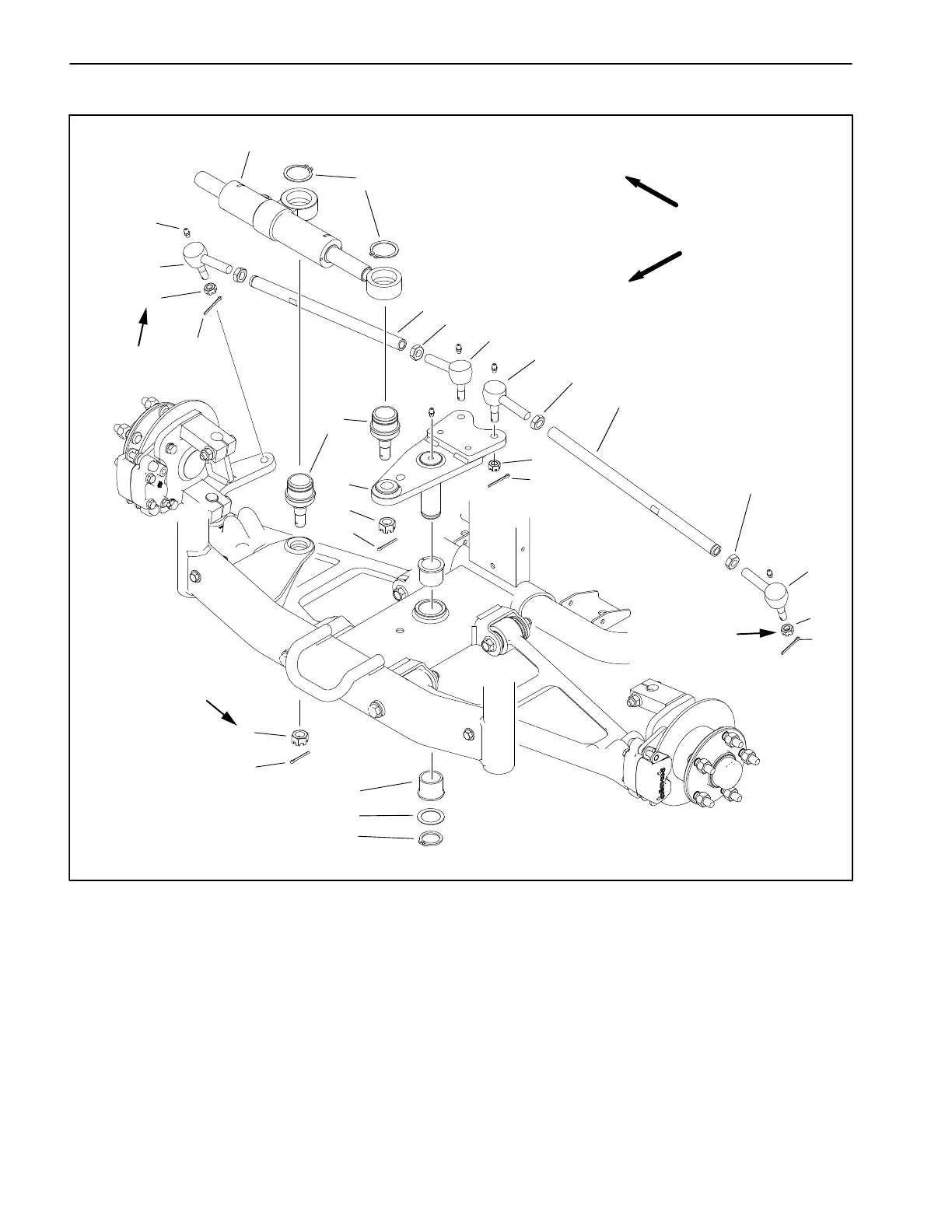

1. Steering cylinder
2. Retaining ring (2)
3. Steering pivot
4. Ball joint (2)
5. Castle nut (2)
6. Cotter pin (6)
7. Tie rod end − RH thread (2)
8. Tie rod end − LH thread (2)
9. Jam nut − RH thread (2)
10. Jam nut − LH thread (2)
11. Tie rod
12. Castle nut (4)
13. Grease fitting (4)
14. Flange bushing (2)
15. Thrust washer
16. Retaining ring
Figure 20
FRONT
RIGHT
15
16
