Toro Multi Pro 1750 Service Manual

Multi Pro 1750Chassis Page 8 − 26

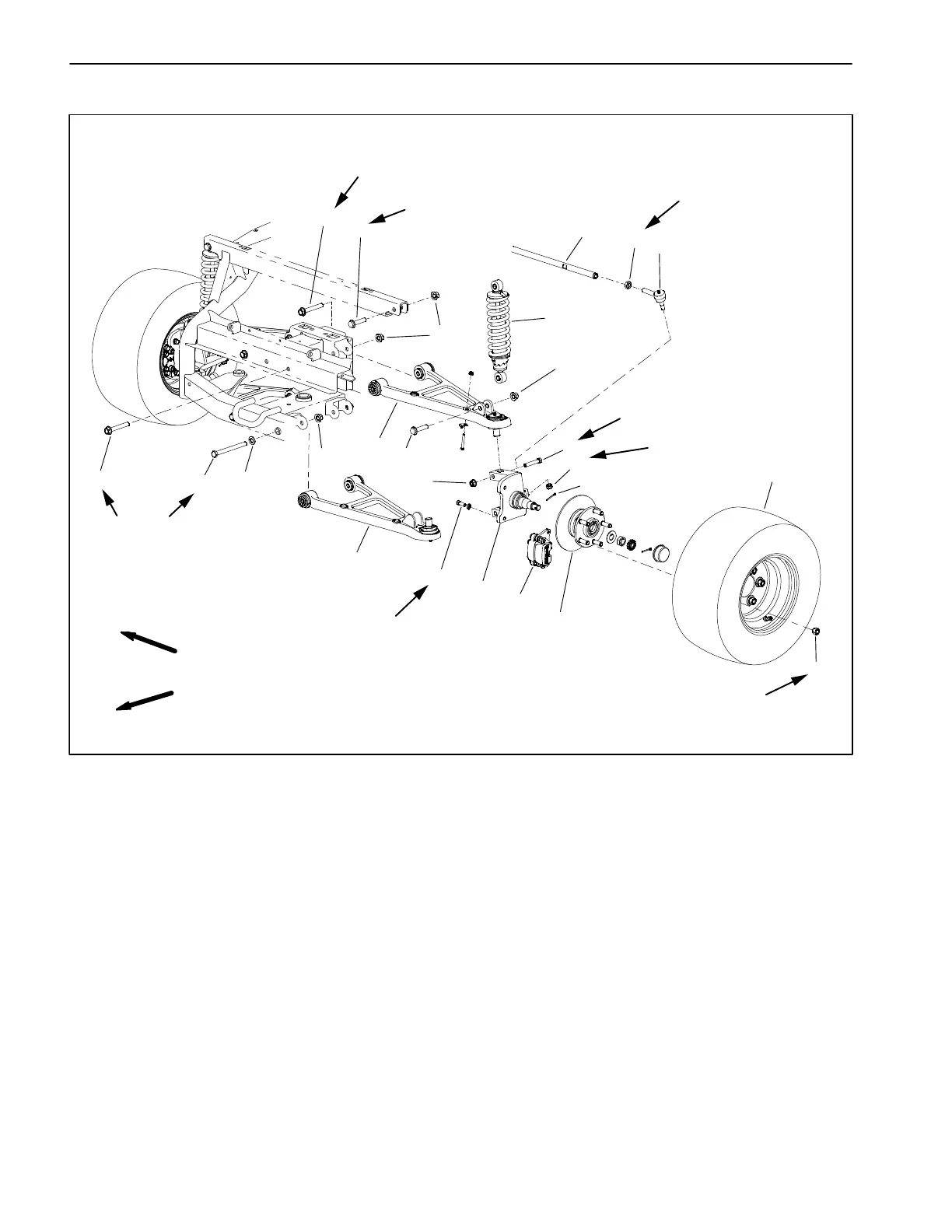

Front Suspension
1. Front wheel and tire
2. Lug nut (5 per wheel)
3. Front brake caliper (2)
4. Front hub assembly (2)
5. Cap screw (4)
6. Left spindle
7. Cap screw (4)
8. Flange nut (4)
9. Flange head screw (4)
10. Flange nut (12)
11. Upper left control arm
12. Lower left control arm
13. Flange head screw (6)
14. Cap screw (2)
15. Flat washer (2)
16. Shock absorber assembly (2)
17. Tie rod (2)
18. Jam nut (2)
19. Tie rod end (2)
20. Castle nut (2)
21. Cotter pin (2)
Figure 17
11
12
13
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
9
10
10
10
21
75 to 80 ft−lb
(102 to 108 N−m)
40 to 50 ft−lb
(54 to 68 N−m)
40 to 50 ft−lb
(54 to 68 N−m)
40 to 50 ft−lb
(54 to 68 N−m)
75 to 80 ft−lb
(102 to 108 N−m)
35 to 40 ft−lb
(47 to 54 N−m)
75 to 80 ft−lb
(102 to 108 N−m)
FRONT
RIGHT
20 to 25 ft−lb
(27 to 34 N−m)
