Toro Multi Pro 1750 - Turret Body Service

Multi Pro 1750 Page 6 − 49 Spray System
Turret Body Service

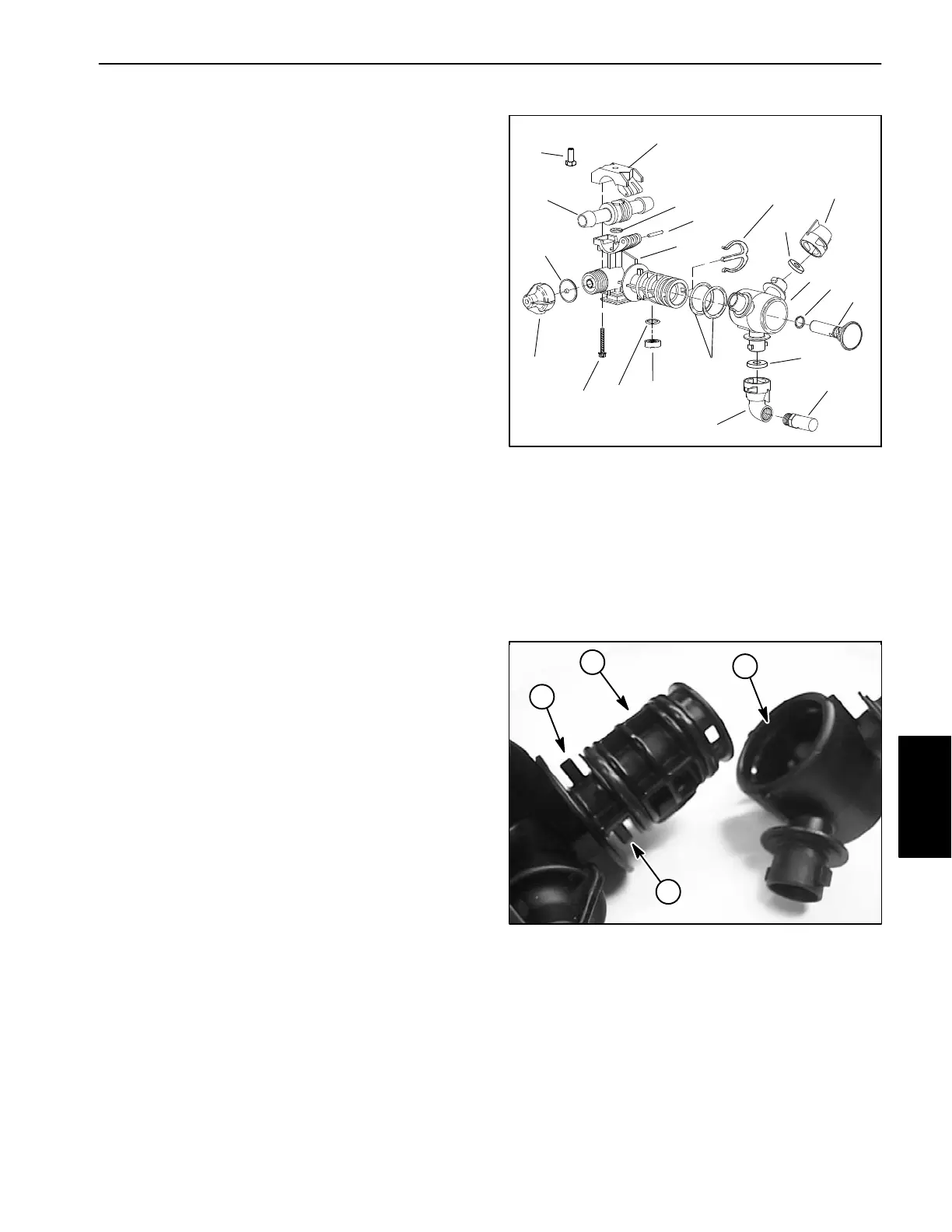

Disassembly (Fig. 33)
1. Pull e−clip from body and slide plug with O−ring from
body.
2. Disassemble turret body.
3. Discard all removed seals, gaskets, O−rings and dia-
phragms.
Assembly (Fig. 33)
NOTE: Coat all O−rings with vegetable oil before instal-
lation to reduce the chance of damage during assembly.
1. Replace all removed seals, gaskets, O−rings and di-
aphragms.
2. Assemble turret body.
A. The end of the turret with the slightly larger bore
has detent grooves (Fig. 34). The detent grooves
need to align with the detent posts on the body.
B. Make sure to align notch on plug (item 10) with
groove in body (item 4) as plug is installed.
C. Install e−clip (item 5) into body to secure assem-
bly.
1. Upper clamp
2. O−ring
3. Pivot pin
4. Body
5. E−clip
6. Gasket (3)
7. Dust cap (2)
8. Turret
9. O−ring
10. Plug
11. Nozzle
12. Nozzle cap
13. O−ring
14. Seal
15. Screw
16. End cap
17. Diaphragm
18. Hose barb
19. Cap screw
20. O−ring
Figure 33
2
1
3
6
4
5
11
10
12
14
13
15
8
7
9
17
16
18
6
19
20
1. Body
2. Detent post
3. Detent groove
Figure 34
3
2
1
2
