Toro Multi Pro 1750 - Page 238

Multi Pro 1750Page 7 − 12Drive Train

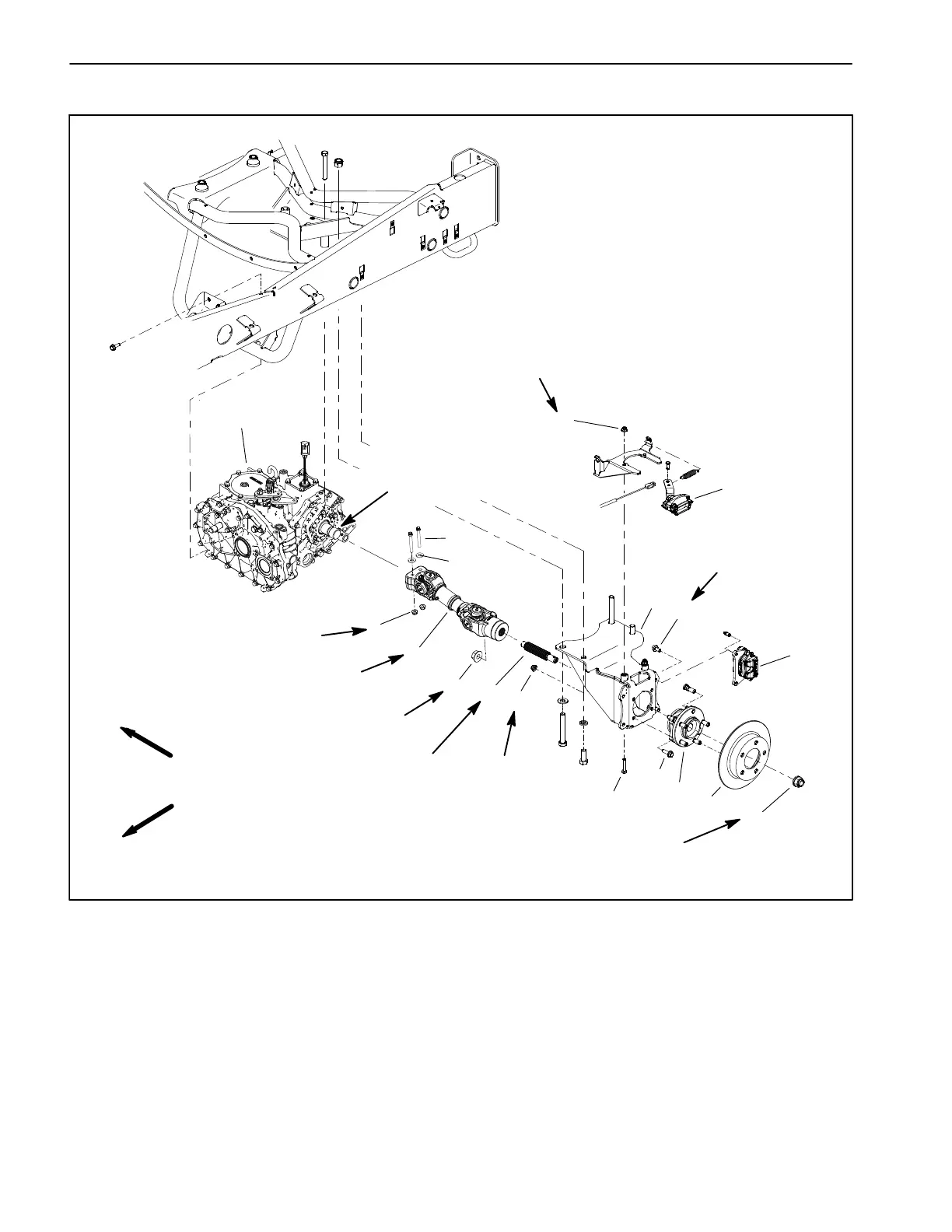

Rear Wheel Driveshafts
1. Rear wheel driveshaft assembly
2. Cap screw (2)
3. Flat washer (2)
4. Flange nut (2)
5. Flange nut
6. Transaxle assembly
7. Rear brake caliper
8. Parking brake caliper (LH shown)
9. Wheel bearing hub
10. Hub support
11. Brake rotor
12. Spindle nut
13. Cap screw (4)
14. Flange nut (4)
15. Flange head screw (2)
16. Splined shaft
17. Lock nut (2)
18. Cap screw (2)
Figure 7
2
3
6
9
1
8
10
4
7
FRONT
RIGHT
Antiseize
Lubricant
35 to 40 ft−lb
(48 to 54 N−m)
11
12
170 to 180 ft−lb
(230 to 244 N−m)
Staked
13
14
35 to 40 ft−lb
(48 to 54 N−m)
15
35 to 40 ft−lb
(48 to 54 N−m)
Loctite #271
75 to 80 ft−lb
(102 to 108 N−m)
5
18
17
35 to 40 ft−lb
(48 to 54 N−m)
Grease
16
Antiseize
Lubricant
