Multi Pro 1750Page 3 − 26Kohler Gasoline Engine

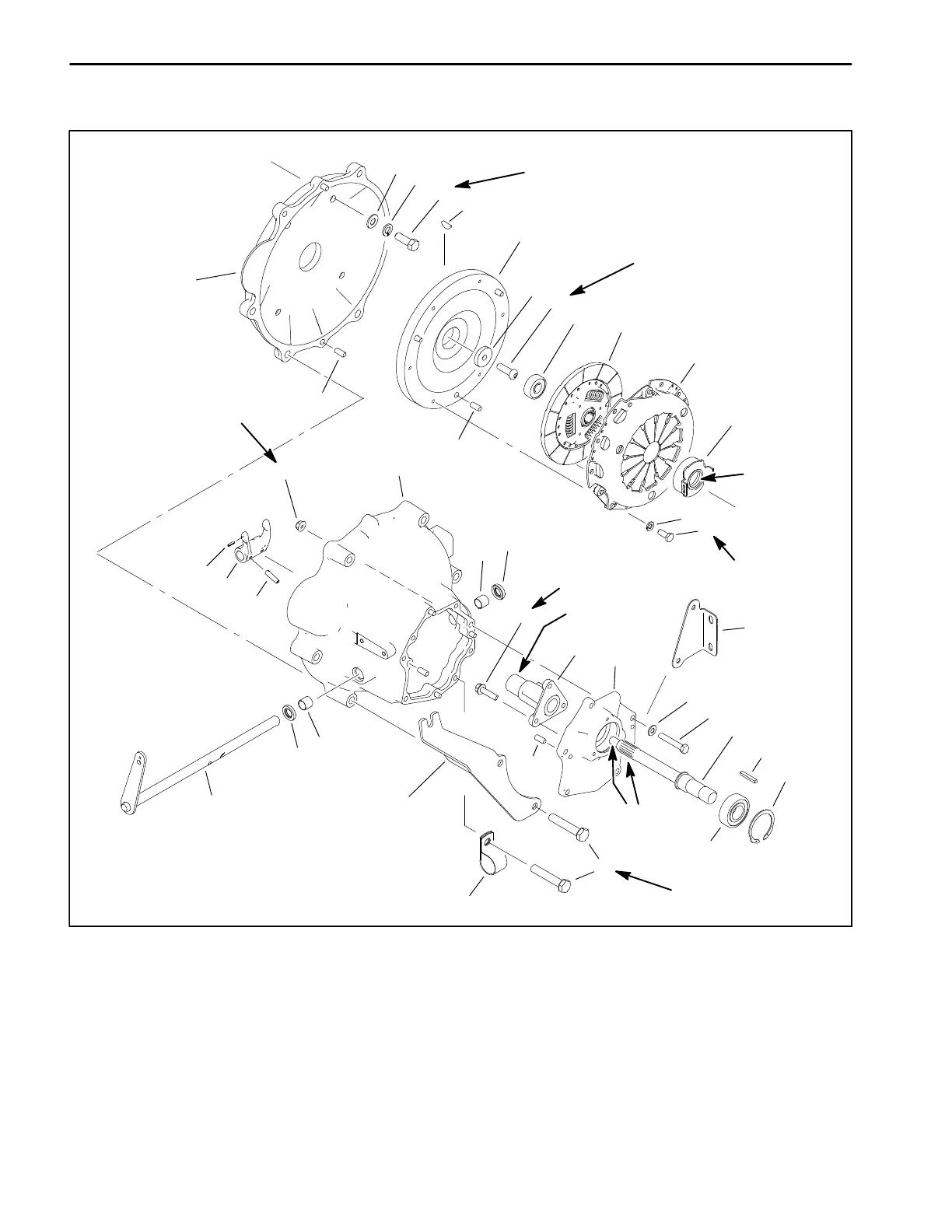

Clutch
Figure 18
1. Adapter plate
2. Alignment pin (4)
3. Flat washer (4)
4. Lock washer (4)
5. Hex head screw (4)
6. Woodruff key
7. Flywheel
8. Washer
9. Button head screw
10. Pilot bearing
11. Alignment pin (3)
12. Clutch disc
13. Pressure plate assembly
14. Release bearing
15. Lock washer (6)
16. Hex head screw (6)
17. Bell housing
18. Flange nut (6)
19. Roll pin
20. Release fork
21. Roll pin (2)
22. Bushing (2)
23. Seal (2)
24. Release shaft
25. Flange head screw (3)
26. Release guide
27. Bearing support
28. Lock washer (6)
29. Hex head screw (6)
30. Output shaft
31. Square key
32. Retaining ring
33. Bearing
34. Hex head screw (6)
35. R−clamp
36. Clutch cable bracket
37. Exhaust support bracket
(machine serial no 314000001 thru
31400500)
45 to 55 ft−lb
(61 to 75 N−m)
35 to 40 ft−lb
(47 to 54 N−m)
LOCTITE #271
90 to 120 in−lb
(10 to 14 N−m)
17 to 21 ft−lb
(23 to 28 N−m)
90 to 120 in−lb
(10 to 14 in−lb)
55 to 65 ft−lb
(75 to 88 N−m)
ANTI SIEZE
LUBRICANT
ANTI SIEZE
LUBRICANT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
22
23
ANTI SIEZE
LUBRICANT
37
