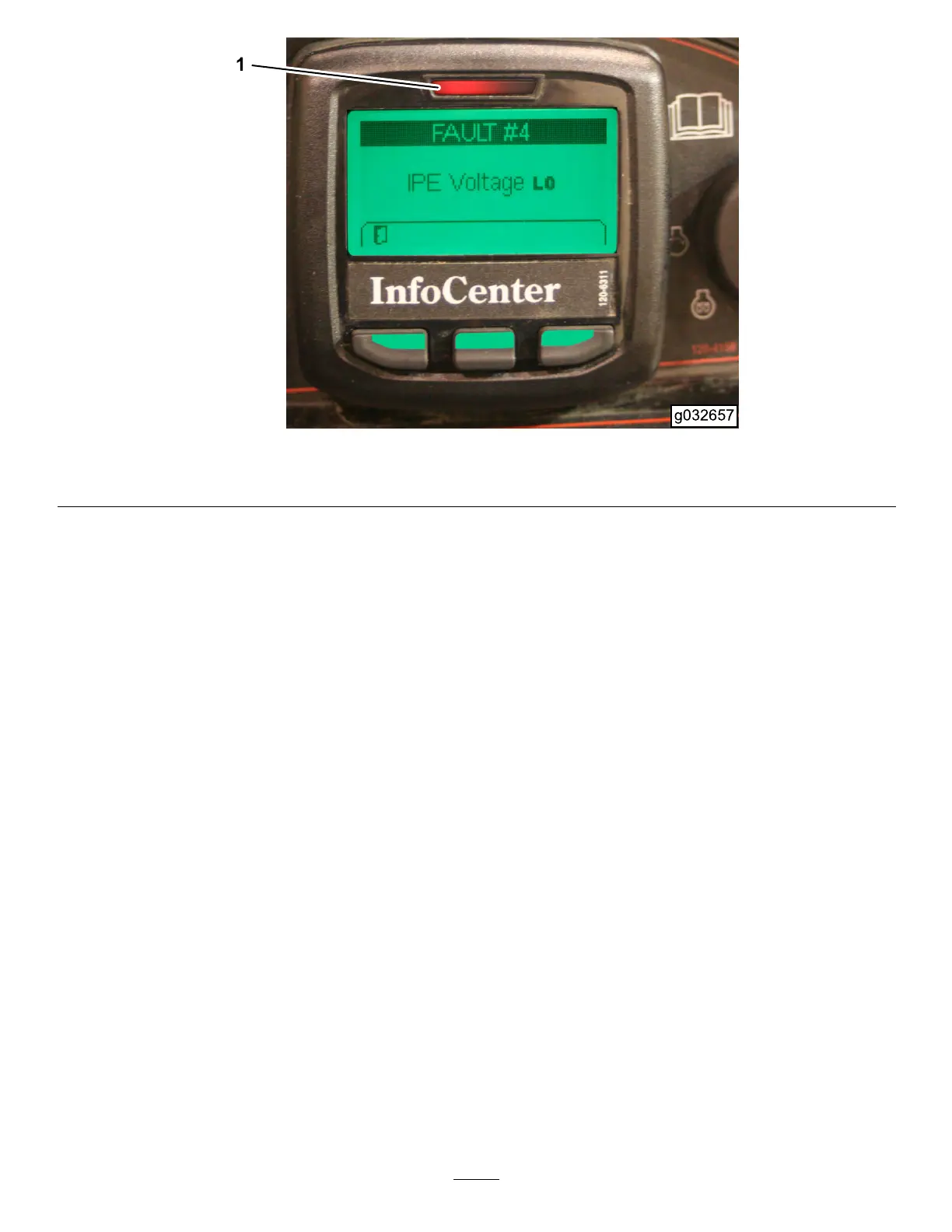

g032657

Figure8

1.Faultindicatorlight

Ifanelectricalfaultoccurs,theInfoCenterfaultindicatorlightashes(Figure8)andafaultcodewitha

descriptionappearsonthedisplay.

•Faultsthatarecurrentlyhappeningarecalledactivefaults.Assoonasafaultoccurs,informationabout

thatfaultisdisplayedontheInfoCenter.Faultsremainactiveonthescreenuntilyouclearthemoruntilthe

conditionthatcreatedthefaultnolongerexists.

•UsetheInfoCenterFaultsscreentoseealistoffaultsthatoccurredbeforethemostrecentstartingofthe

machine.TheFaultsscreenlistsallofthemachinefaultsthathaveoccurredsincetheInfoCenterfaultlog

waslastcleared.

ClearingFaultsfromtheInfoCenter

Note:YoucanclearsystemfaultsfromtheInfoCenterifyouhavethePINnumberforaccess.Thecomplete

faulthistoryisretainedintheTEC-5002memoryandcanbeviewedviaToroDIAGsoftware.

EnteringthePINcode

1.FromtheMainmenu,presstheleftbuttonasneededtoaccesstheSettingsmenu.

2.Pressthemiddle(down)buttonasneededtohighlightProtectedMenus.

3.PresstherightbuttontoselectProtectedMenus.

4.PresstherightbuttontoenterthePINscreen.

5.Pressthemiddlebuttontochangethenumericvalues,andtherightbuttontoselecteachdigit.

6.WhenthePINentryiscomplete,presstherightbuttontoenterthecode.

7.Ifthecodeentryiscorrect,acheck-markiconappearsatthebottom/centeroftheInfoCenterdisplay

screen.

8.PressthemiddlebuttononcetoreturntotheMainmenu.IfthePINhasbeenenteredcorrectly,the

InfoCenterscreendisplays“PIN”intheupperrightcornerofthescreen.

Note:ThePINstaysactiveuntiltheignitionisturnedOFF.IfyouneedtoaccesstheProtectedmenus

againafterthemachinehasbeenturnedoff,youwillneedtoreenterthePIN.

ClearingfaultsafterenteringthePIN
