2. SYSTEM MODE EO13-33002
(Revision Date: Jul. 24, 2008)
2.1 Self-diagnostic Test
2-16
(11) Internal Serial Interface Check
EX.232C NG

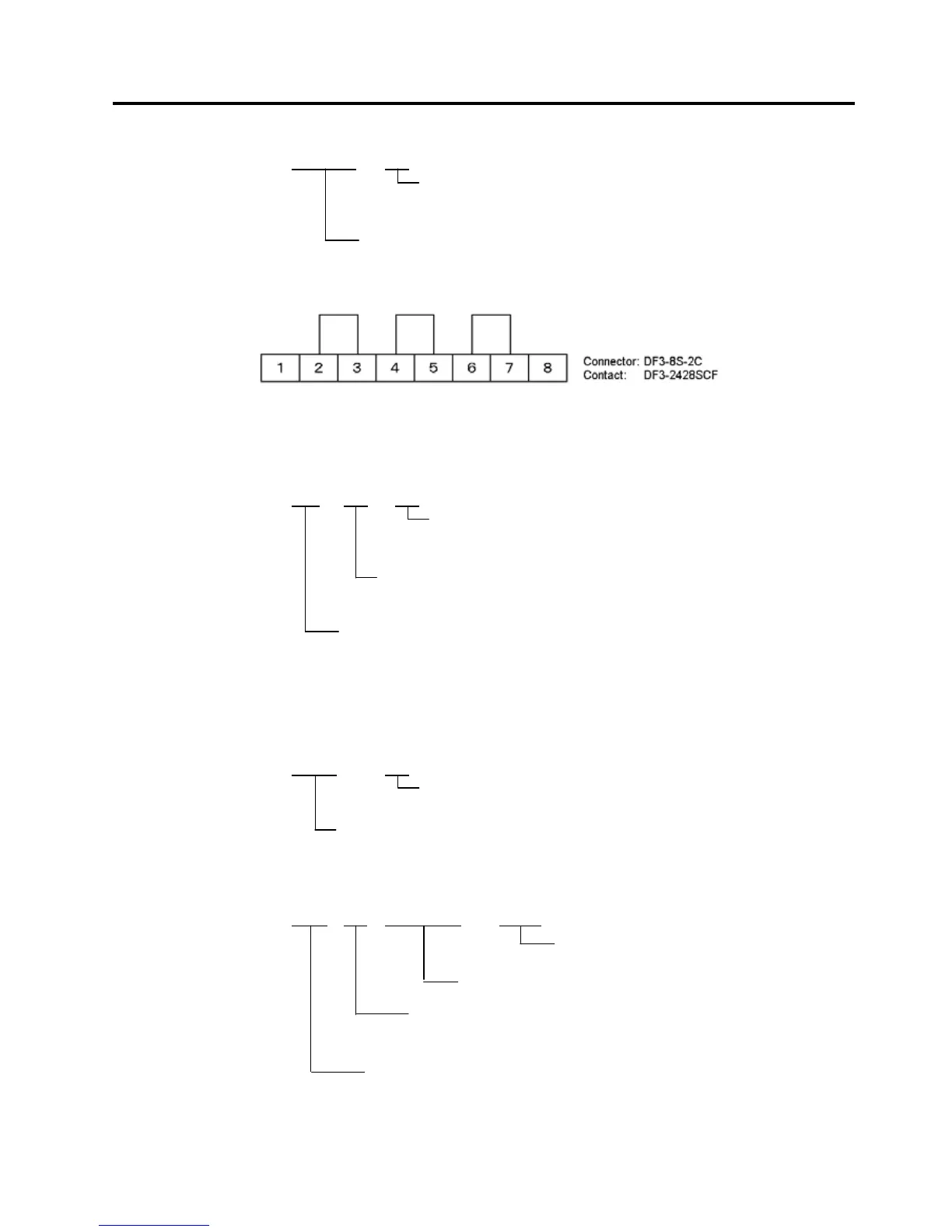

Connect the jig like below to the serial interface connector and perform a loop back check.
(12) SIO Interface check
Result of optional serial interface check is printed.
SIO NG NG
(13) Strip sensor check
Result of a check of the strip sensor on optional strip module is printed.
STRIP
NG
(14) RFID module check
Results of a RFID module check is printed.
RFID
OK #00RV972 (EU0)
OK: The circuit has no problem.
NG (Not good): The circuit has a problem or loopback jig is not
attached.
Internal Serial Interface
DIN OK: The circuit has no problem.
NG (Not good): The circuit has a problem or loopback jig
is not attached.
Optional Serial Interface
DSUB OK: The circuit has no problem.
NG (Not good): The circuit has a problem or loopback jig is not
attached.
OK: No problem
NG (Not good): There is a problem or a jig is not attached.
Strip sensor
RFID module version (Printed only when the result is OK.)
OK: The RFID module has no problem.
NG (No good): The RFID module has a problem or loop back
To Next Page
