7. Release the LCD harness from the guides of the LCD cover.
8. Peel the pull tape and disconnect the LCD harness from the connector on the LCD
unit.
LCD unit
LCD harness
Pull tape
Guide

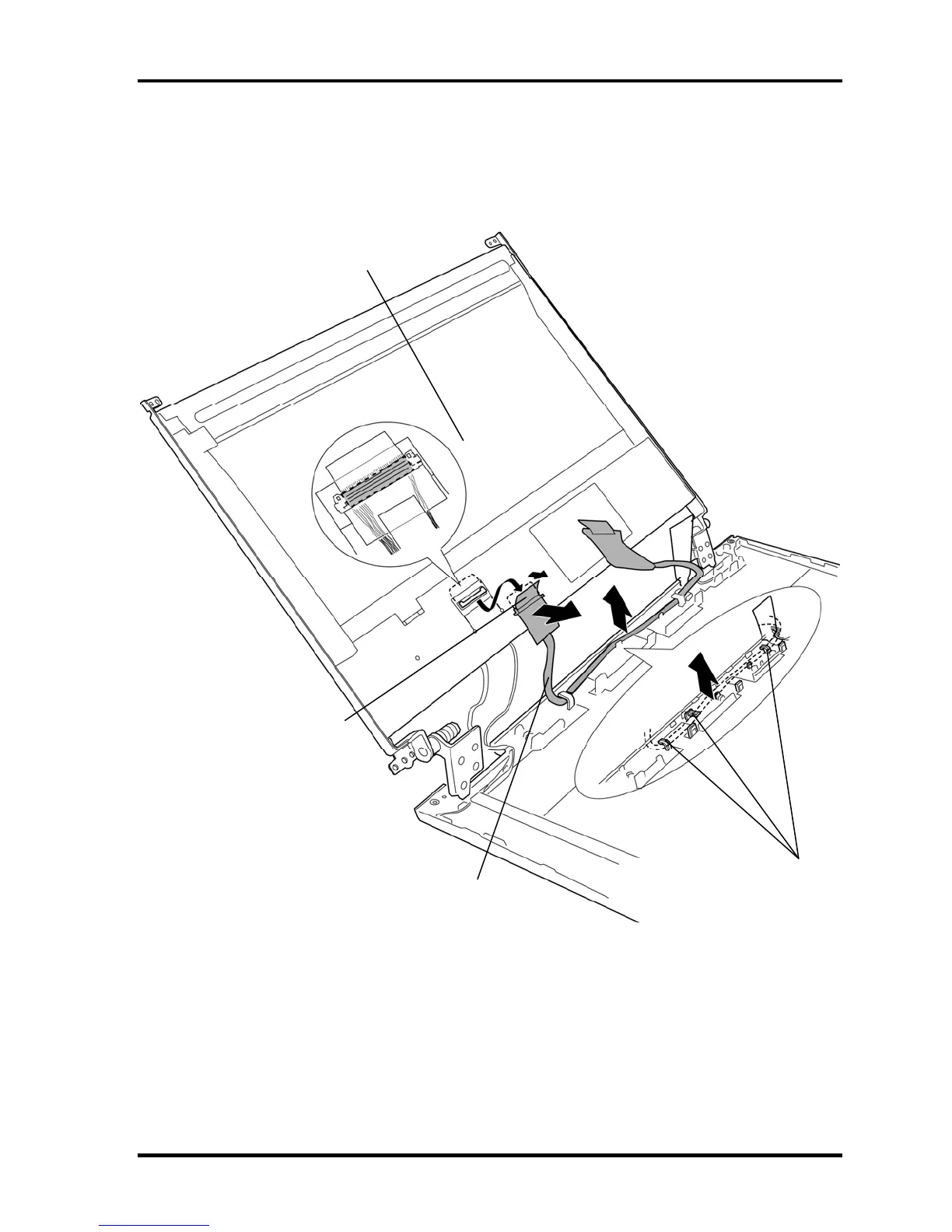

Figure 4-50 Removing the LCD harness
TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (960-784) [CONFIDENTIAL] 4-91
