Toshiba TECRA A11 Series User Manual

Installing the LCD unit
To install the LCD unit, follow the steps below and refer to Figure 4-46 to 4-51.
1. Set the brake hinges to the LCD unit and secure them with the following screws.
 M2.03C S-THIN HEAD screw 2
2. Connect the LCD harness to the connector on the LCD unit and secure it with the
pull tape.
3. Arrange the LCD harness under the guides of the LCD cover.
4. Set the LCD unit on the LCD cover and secure them with the following screws.
 M2.55C Tapping screw 4
NOTE: When securing the LCD unit and LCD cover, be sure to secure the screws in the
order of the number on the Figure 4-49.

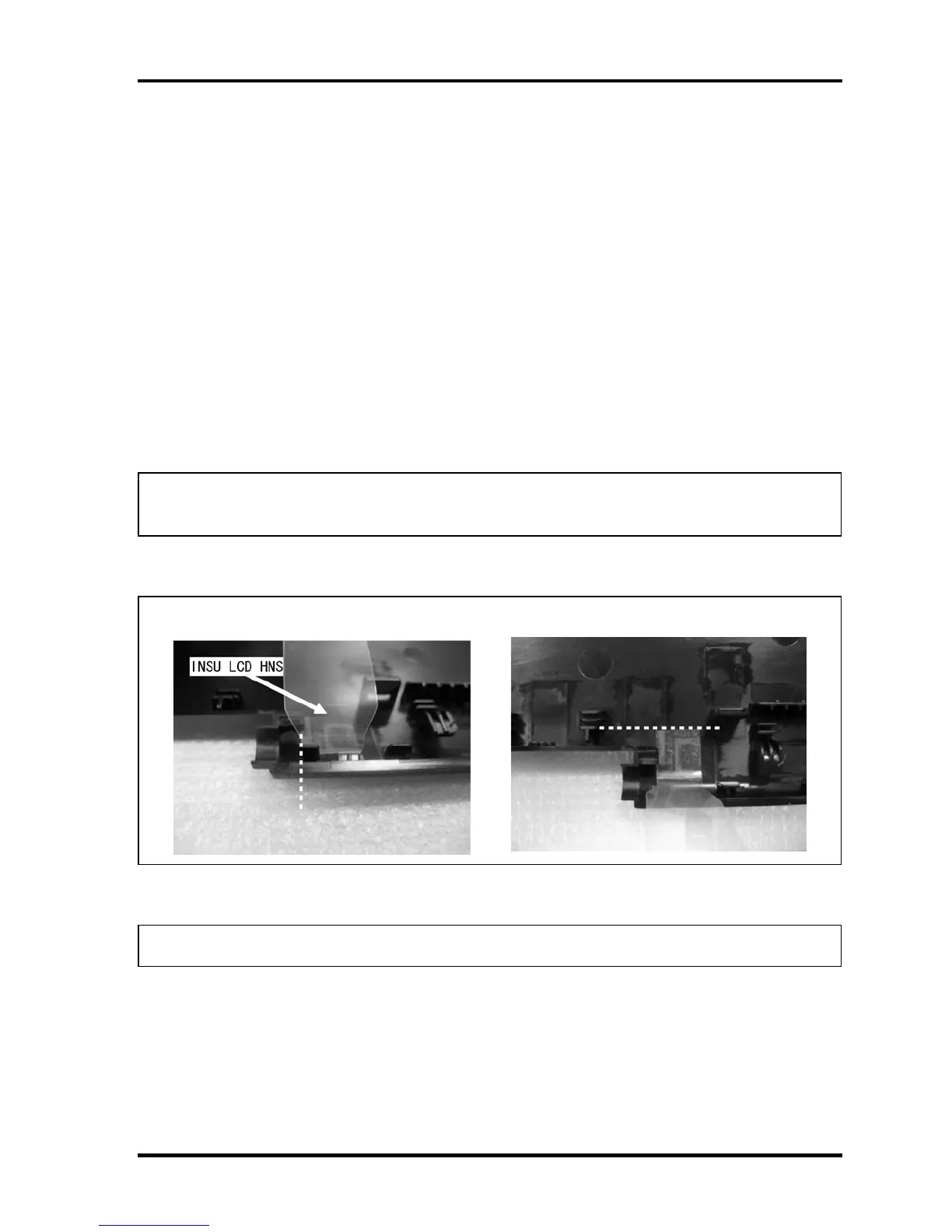

5. Set the insulator (LCD HNS INSULATOR) under the LCD unit.
NOTE: When sticking the LCD HNS INSULATOR, as shown in the figure below.
6. Set the LCD mask to the LCD assembly while engaging the latches.
NOTE: When setting the LCD mask, be careful not to pinch the cables.
7. Secure the LCD mask with the following screws.
 M2.55B FLAT HEAD screw 2
8. Stick the LCD mask cushions in place.
TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (960-784) [CONFIDENTIAL] 4-93

Toshiba TECRA A11 Series Specifications

General

RAM	Up to 8GB DDR3
Operating System	Windows 7 Professional
Battery Life	Up to 4 hours
Optical Drive	DVD SuperMulti Drive
LAN	Gigabit Ethernet
Processor	Intel Core i3, i5, or i7
Display	15.6-inch HD (1366x768)
Storage	HDD up to 500GB
Graphics	Intel HD Graphics
Wireless	802.11 a/g/n
Webcam	Integrated webcam
Ports	USB 2.0, VGA, RJ-45
Card Reader	SD
Battery	6-cell Li-ion
Dimensions	374 x 250 mm
Chipset	Mobile Intel QM57 Express Chipset
