5

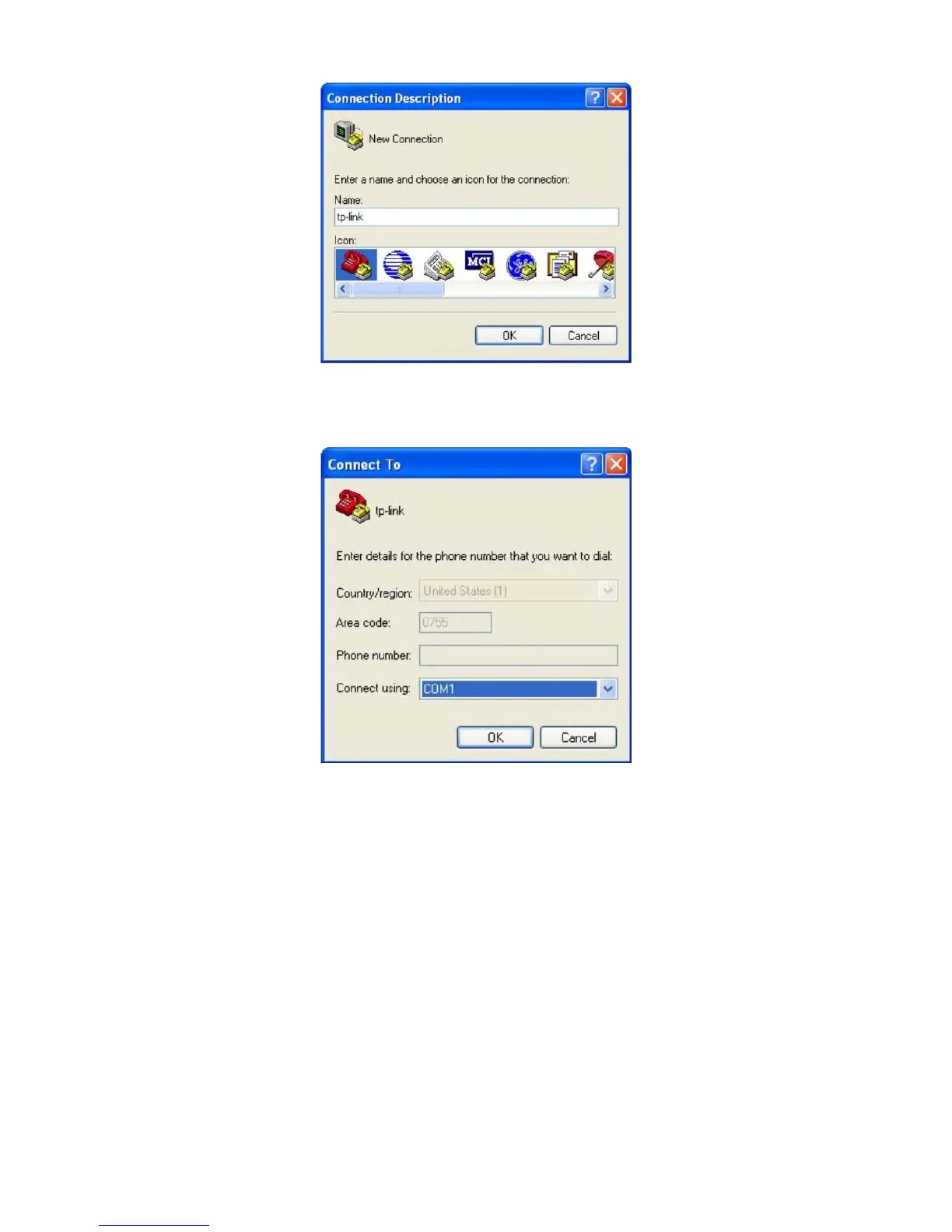

Figure 1-2 Connection Description
4. Select the port to connect in figure 1-3, and click OK.
Figure 1-3 Select the port to connect
5. Configure the port selected in the step above as the following figure1-4 shown. Configure Bits
per second as 38400, Data bits as 8, Parity as None, Stop bits as 1, Flow control as None,
and then click OK.
