Appendix B: Frequently Asked Questions
Page 146 100-11672 - Rev D

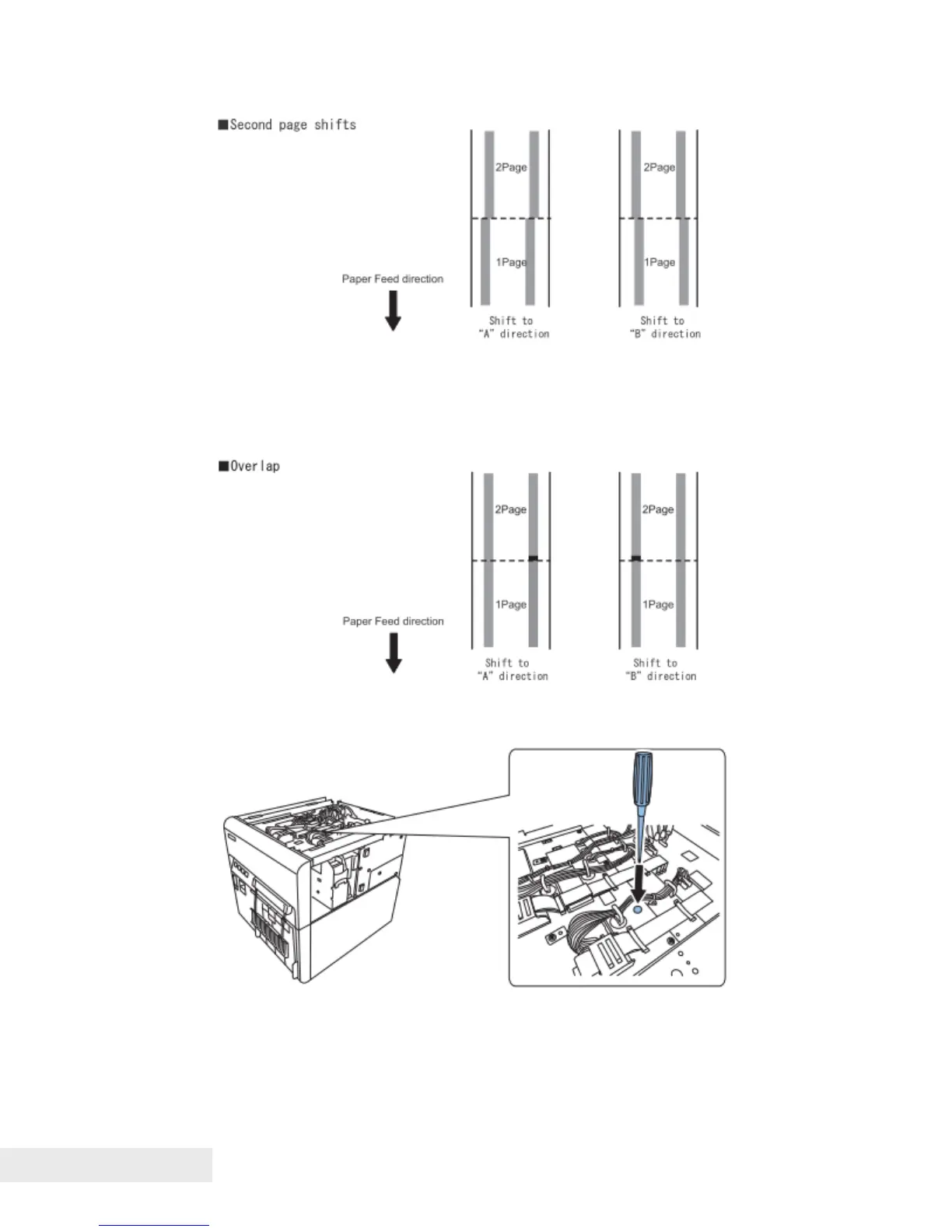

If the gray areas of backfeed pattern have overlapped at right side, shift the
plate to "A" direction.
If the gray areas of backfeed pattern have overlapped at left side, shift the
plate to
"B" direction. Go
to the <Adjustment Pro
cedure> sec
tion bel
ow.
Adjustment Procedure:
1) Remove Top Cover and insert the screwdriver to the hole.
To Next Page
