Appendix A: Ordering Genuine Ithaca Supplies
100-11672 - Rev D Page 147

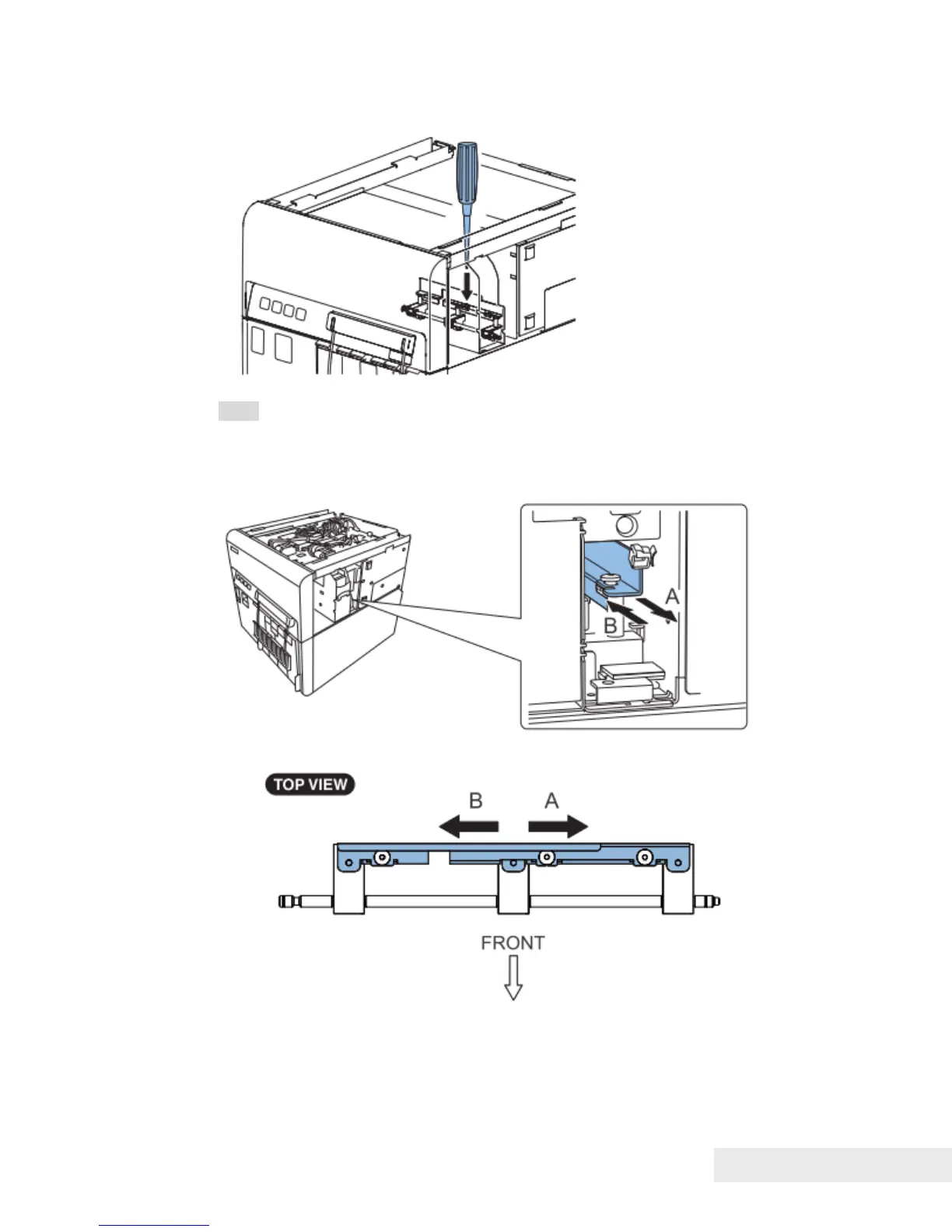

2) Loosen the screw.
Note:
Loosen the screw that located at center only. Screws at both side support the
plate of Pinch Roller.
3) Shift the plate of Pinch Roller all the way and tighten the screw.
Head Position Adjustment
1) Adjust Head position. ("Head Position Adjustment" section.)
Back Feed Gap Adjustment
1) Adjust backfeed gap. ("Backfeed Gap Adjustment" section.)
