Examining and Adjusting TK-GAP:

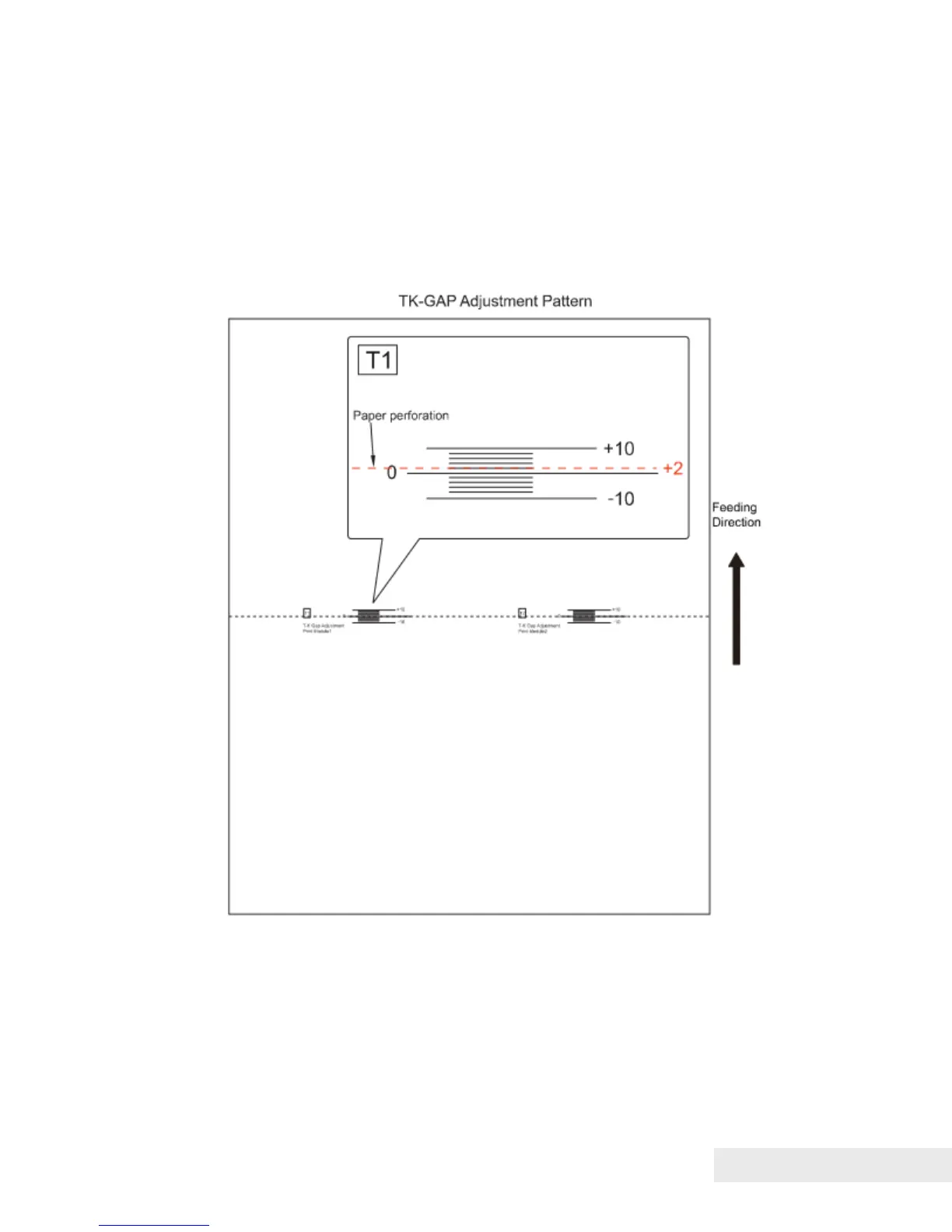

1) Observe the TK-GAP Adjustment Pattern and examine if the TK-GAP
adjustment is necessary for Print Modules according to the following. Perform
the adjustment, if necessary.
Find where the paper perforation is located on the TK-GAP
adjustment pattern scale. If the paper perforation is at the
“+2” position on the TK-GAP adjustment pattern scale, the
adjustment value is “+2”.
