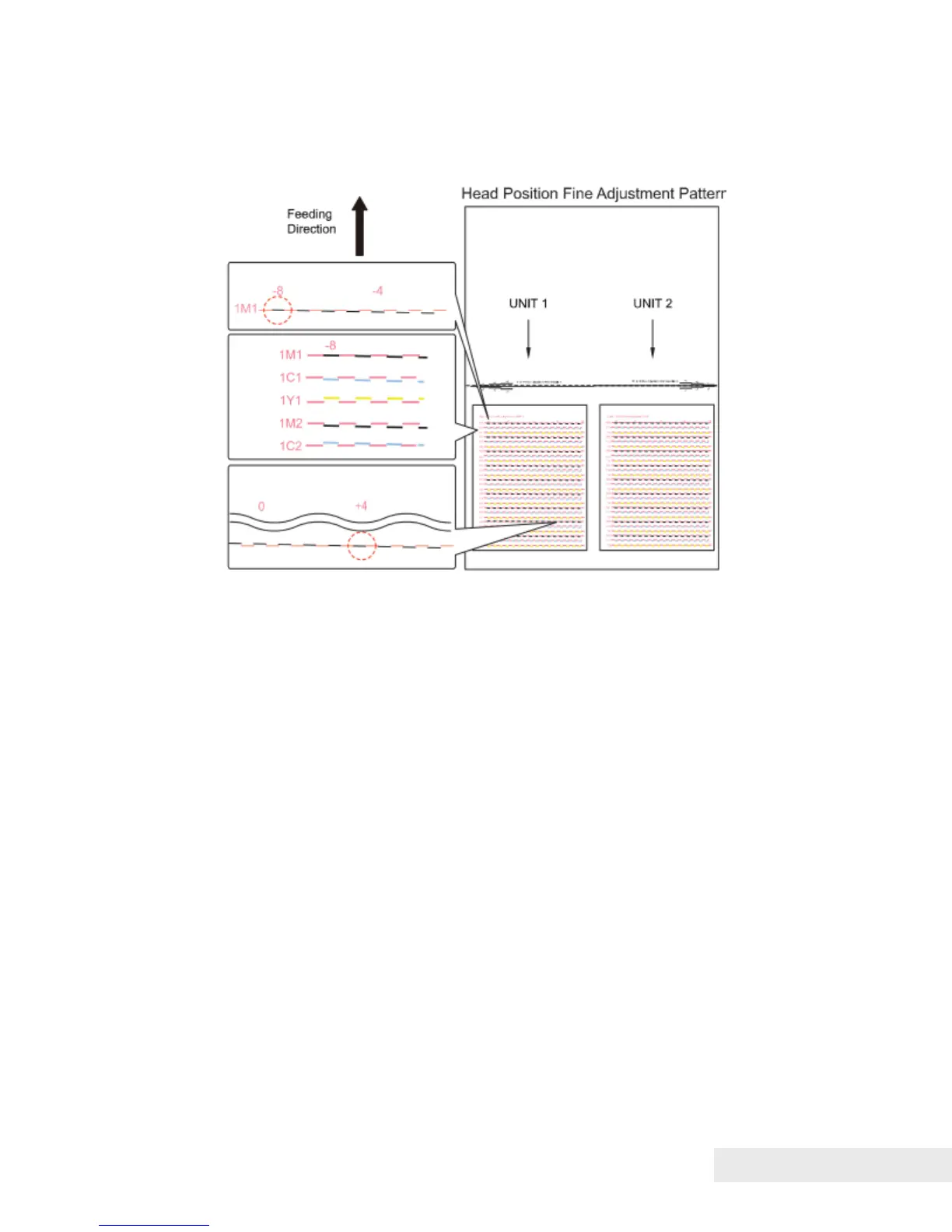

3) Read numerical values of the lines which connected smoothly to magenta
line for all the 54 sections (from 1M1 to 2Y9). For example, in the "1M1"
section, the Magenta and Black elements meet at "-8".
4) Find the minimum and maximum numerical values of Black line for each
Print Module 1 and Print Module 2. For example, minimum numerical value of
Print Module 1 is "-8", maximum numerical value of Print Module is "+4"
