Step-by-Step Installation Instructions
Page 50 100-11672 - Rev D

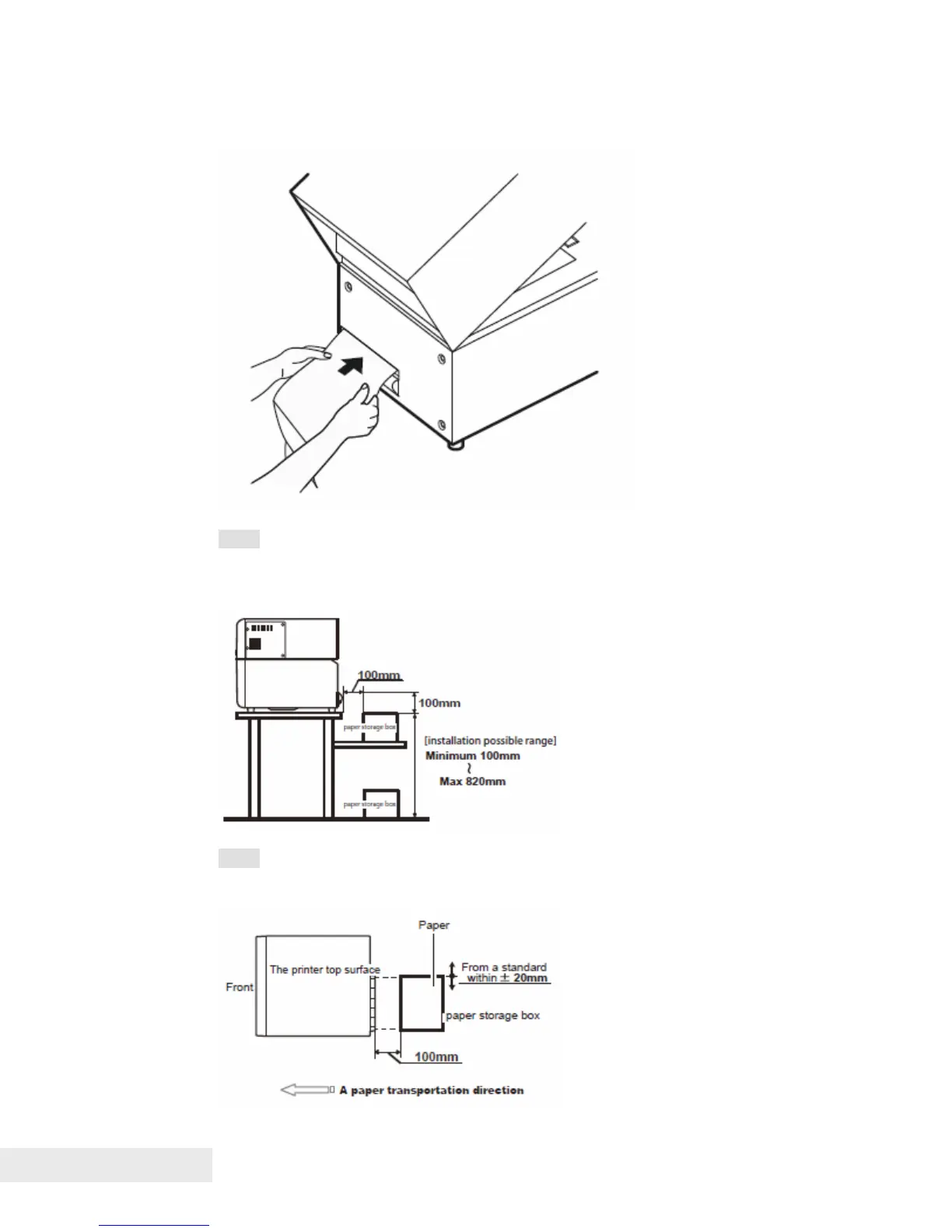

6. Insert paper in the feeder slot provided on the back of the printer.
Note: When supplying paper from the rear of printer, place the paper storage
box containing paper below Feeder Slot at the back of printer, at a height that
is 100-820 mm lower than Feeder Slot, and then load paper in printer.
Note: Place the paper storage box in such a manner that paper is not fed to
printer askew.
To Next Page
