TransAct Printrex 980

To Next Page

To Previous Page

Step-by-Step Installation Instructions

100-11672 - Rev D Page 51

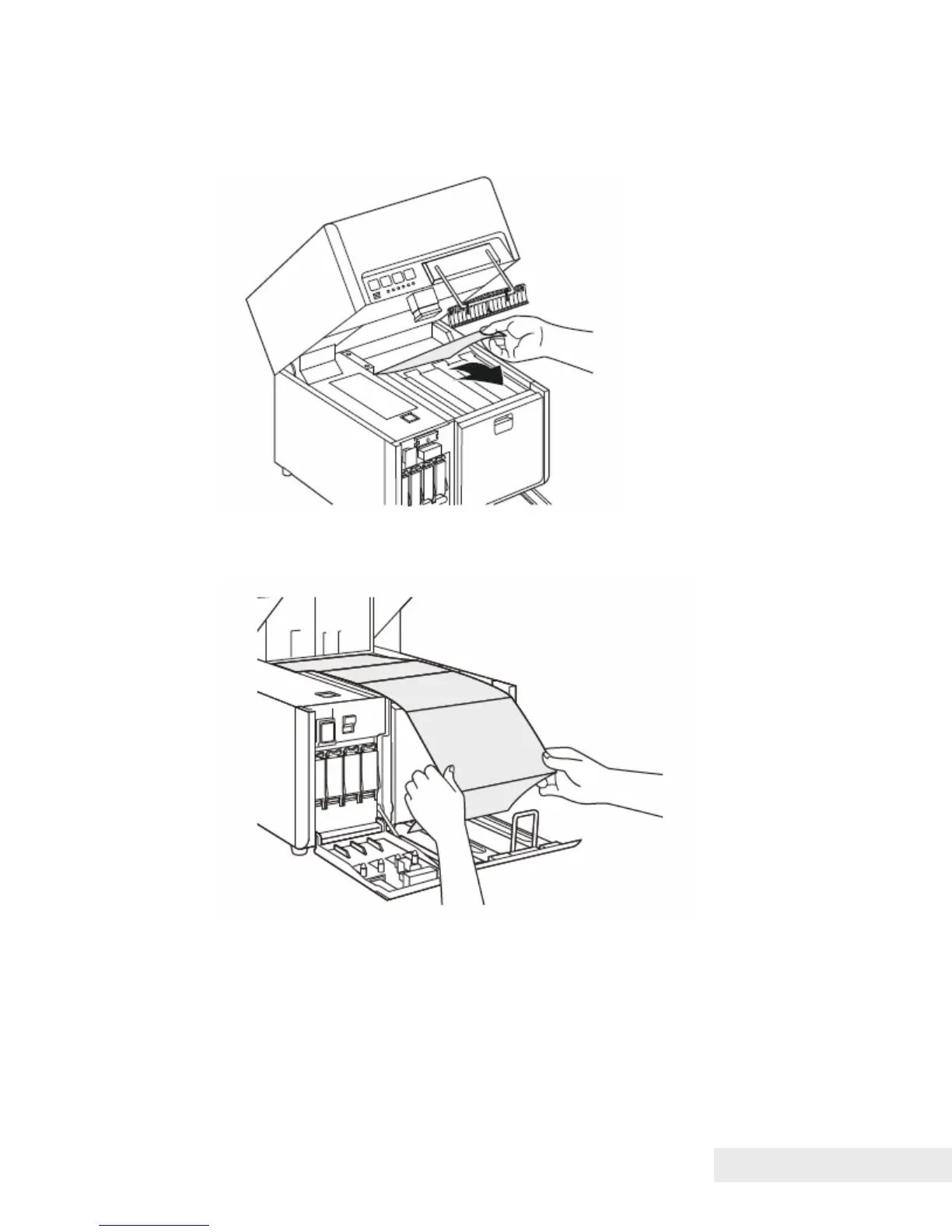

7. Pull out paper from the paper tray.

8. Pull out paper, and then place paper on the stacker unit.
