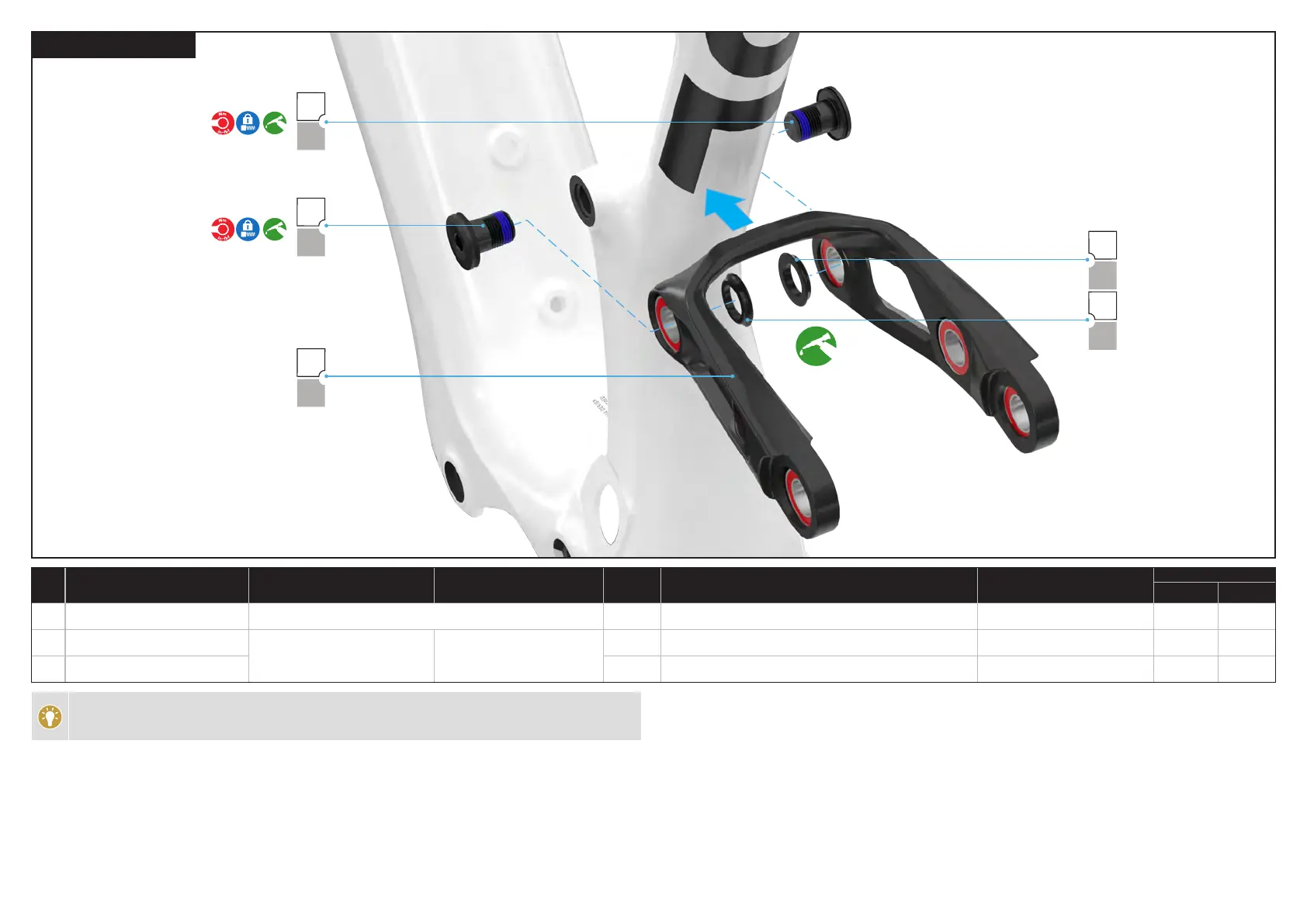

Turbo Schematic LEVO SL - Link at Seat Tube Assembly

12
I
I
I
I
J
J
J
J
A
A
6.1.2. LINK AT SEAT TUBE
# PART NAME
SERVICE PART NUMBER —
CARBON
SERVICE PART NUMBER —
ALLOY
QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
A Link
S214300007
1 LINK,MTB,PA TRAIL FSR G1,29F/27.5R,ALY N/A N/A N/A
I Link at seat tube pivot bolt
Part of suspension bolt kit.
S210500019
Part of suspension bolt kit.
S220500016
2 M12 x 17 mm x 1.0 mm p, bolt 6 mm hex 20 180
J Link at seat tube pivot — spacer 2 12.1 mm id x 19.5 mm od x 3 thick, spacer N/A N/A N/A
For best alignment results, do not torque any of the rear triangle pivot and shock bolts until the rear triangle is
fully assembled to the front triangle.
 Grease, then place the link at seat tube inner spacers (J) against the link at seat tube bearings (C) (reduced edge
facing toward the bearing).
 Align the bearings and spacers of the link with the bore in the seat tube.
 Grease the non-threaded surfaces, then thread the link at seat tube bolts (I) into the frame.
 Use a 6 mm hex bit and hand tighten the two bolts.
