Turbo Schematic LEVO SL - Torque Specifications Overview; Quick Reference Torque Guide

6
# PART NAME TYPE BOLT SPEC TOOL
TORQUE
Nm in-lbf
1 TCU screw Screw M4 x 10 mm x 0.7 mm p T10 Torx 1 9
2 ICR bolt Screw M3 x 18 mm x 0.5 mm p T10 Torx 1 9
3 Water bottle cage bolt Bolt M5 x 18 mm x 0.5 mm p 3 mm hex 2.8 25
4 Battery mount bolts Bolt M6 x 14 mm x 1 mm p 4 mm hex 3 27
5 Rock guard bolt Bolt M6 x 14 mm x 1 mm p 4 mm hex 2.5 22
6 Rear suspension pivot bolts Refer to: PIVOT BOLTS-CARBON FRAME: SPECIFICATIONS in this manual
7 Rear thru-axle Thru-axle M12 x 148 mm x 0.5 mm p 6 mm hex 15 133
8 Derailleur hanger Bolt As supplied 8 mm hex 25 220
# PART NAME TYPE BOLT SPEC TOOL
TORQUE
Nm in-lbf
9 Non-drive side motor bolts Bolt M10 x 25 mm x 1 mm p 5 mm hex 10 90
10 Drive side motor bolts Bolt M6 x 21 mm x 1 mm p 5 mm hex 13 115
11 Front fork thru-axle Thru-axle Refer to fork manufacturer
12 Seat collar Bolt M5 x 18 mm x 1 mm p 4mm hex 6.2 55
13 Stem at steerer tube Bolt M6 x 20 mm x 1 mm p 5 mm hex 8 71
14 Stem at handlebar Bolt M6 x 20 mm x 1 mm p 5 mm hex 6 53
15 Speed sensor bolt Bolt M4 x 14 mm x 0.7 mm p 3 mm hex 3 26

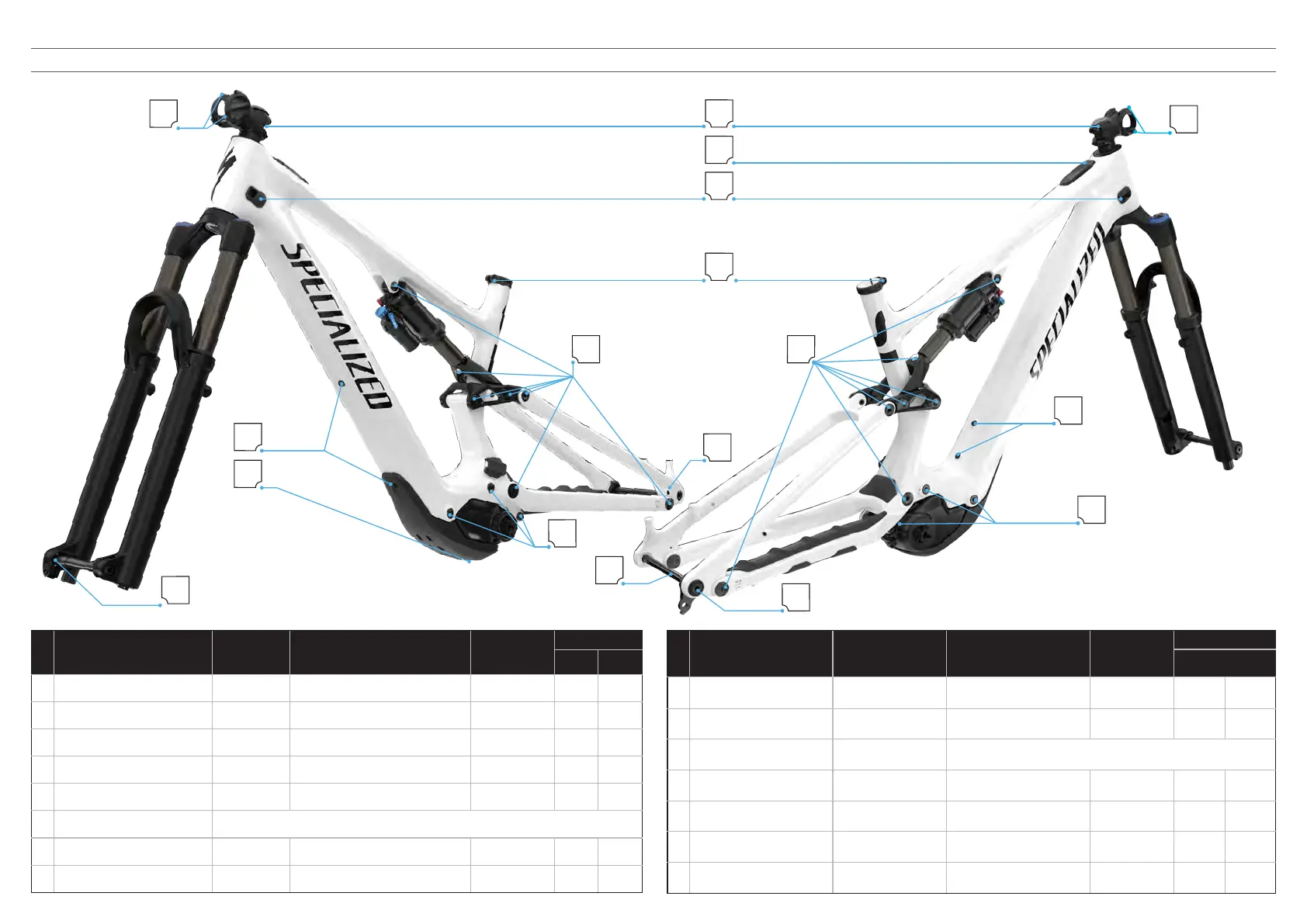

3. TORQUE SPECIFICATIONS
