Turbo Schematic LEVO SL - Link at Seatstay Pivot

18
LLLL MMMMMMMM

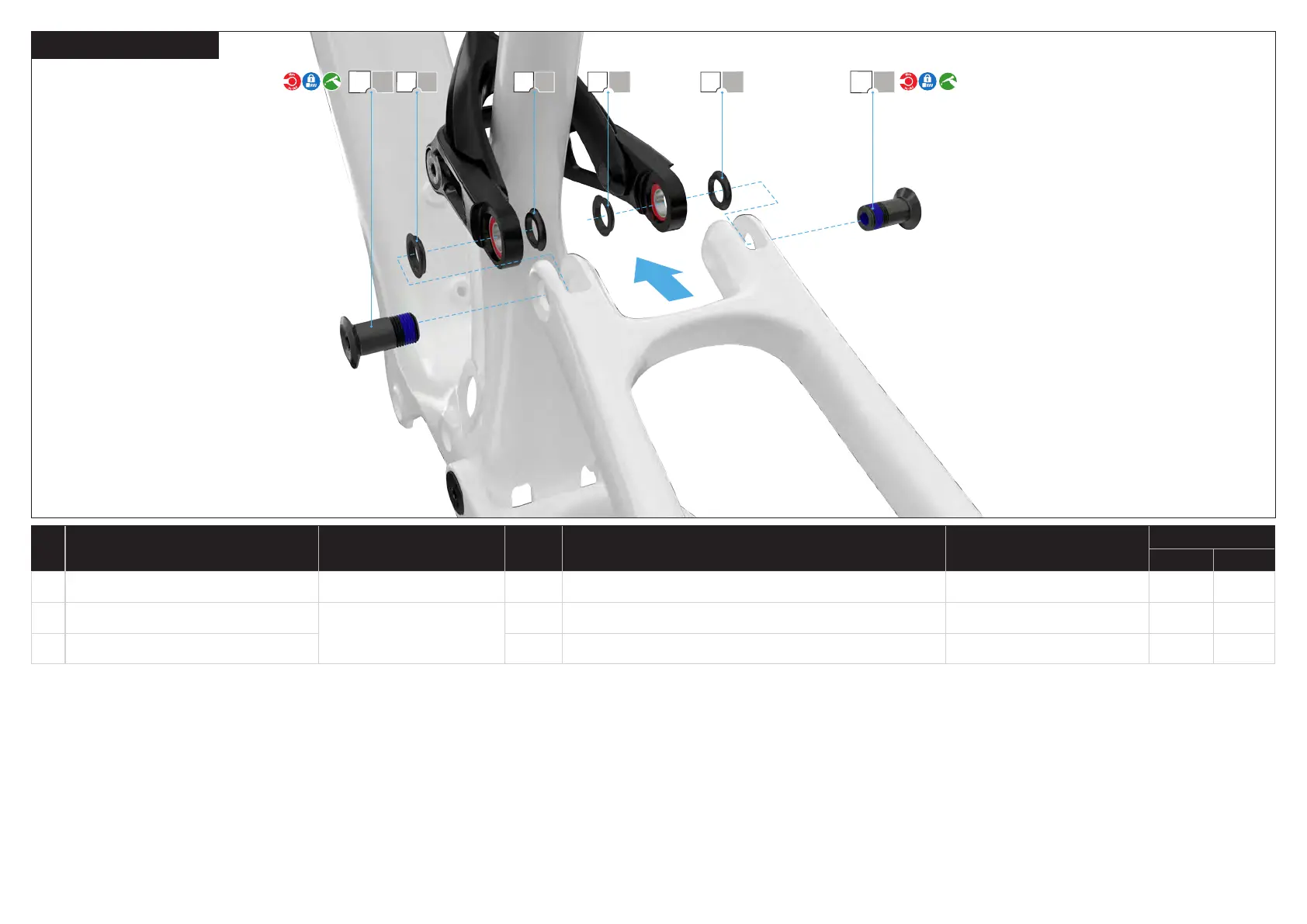

6.1.8. LINK AT SEATSTAY PIVOT
 Grease and place the link at seatstay spacers (M) (x4) with the reduced edge against the bearings of the upper
link rear bore.
 Rotate the seatstay into position to align the seatstay bore with the link pivot bore.
 Grease the non-threaded surfaces, then insert the seatstay bolts (L) (x2) through the seatstay and link.
 Use a 6 mm hex key to hand tighten the two bolts.
# PART NAME SERVICE PART NUMBER QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
Seatstay
S215000005
1 SS, MTB, PA TRAIL FSR G1, 29F/27.5R, CRBN N/A N/A N/A
L Link at seatstay bolt
Part of Carbon suspension bolt kit.
S210500019
2 M12 x 27 mm x 1.0 mm p, bolt 6 mm hex
20 180
M Link at seatstay spacers 4 12.1 mm id x 19.5 mm od x 3 mm w, spacer N/A N/A N/A
