Turbo Schematic LEVO SL - Motor and Battery Assembly; Main Harness Connection

28

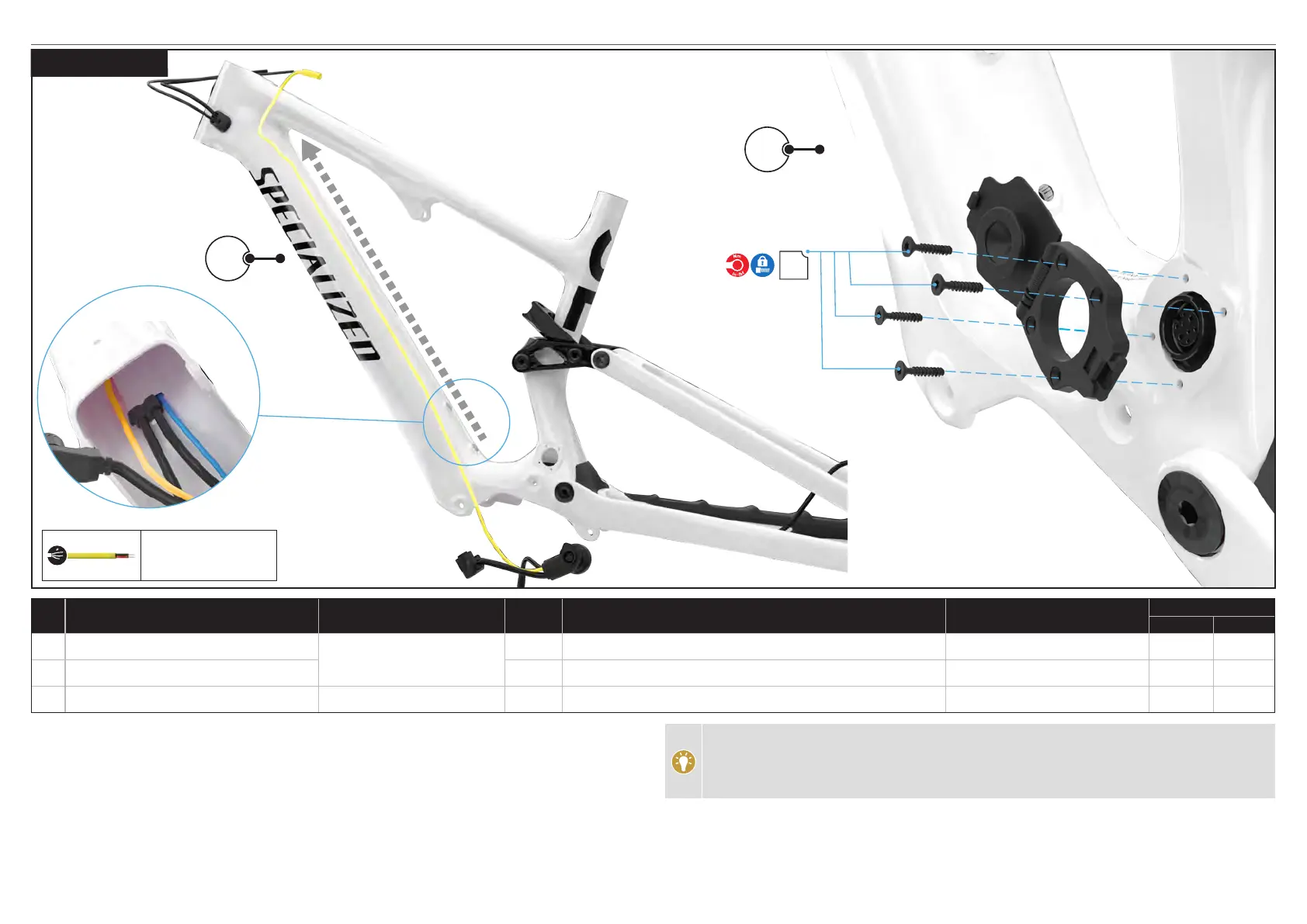

6.3. MOTOR AND BATTERY ASSEMBLY
A
1
2
MAIN HARNESS
TCU - MOTOR
MOTOR - BATTERY
6.3.1. MAIN HARNESS
# PART NAME SERVICE PART NUMBER QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
Charge port kit
S209900023
1 MSC SL SELF OPENING CHARGE PORT KIT N/A N/A N/A
A Charge port bolts 4 M2.5 X 14 mm, bolt T8 Torx 1 9
Main harness
S196800021
1 ELE WIRING, SL SYSTEM. MAIN HARNESS MOTOR-BATTERY-TCU N/A N/A N/A
 1. Route the motor—to—HMI cable up the down tube (outside of the down tube integrated cable channel) until it
exits from the TCU port on the top tube.
 2. Separate the charge port door and the charge port base on the main harness. From the inside of the frame, line
up the charge port base with the charge port hole. Place the charge port door on the outside of the frame making
sure the four holes line up with the four holes in the frame. The door should face the front of the bicycle when
open.Insert the four mounting screws. Use a torque wrench and T8 Torx bit to torque the screws to specification.
When replacing the charge port lid with the motor installed, remove only three of the screws securing the
old charge port lid. Loosen the remaining screw until you can rotate the charge port lid enough to secure
the new lid using the screw on the opposite side. You can then remove the old component, rotate the new
lid, and secure it with the remaining three screws.
