Turbo Schematic LEVO SL - Horst Pivot - Bearings and Speed Sensor

17
BBRRBBBBBB RR
1
2

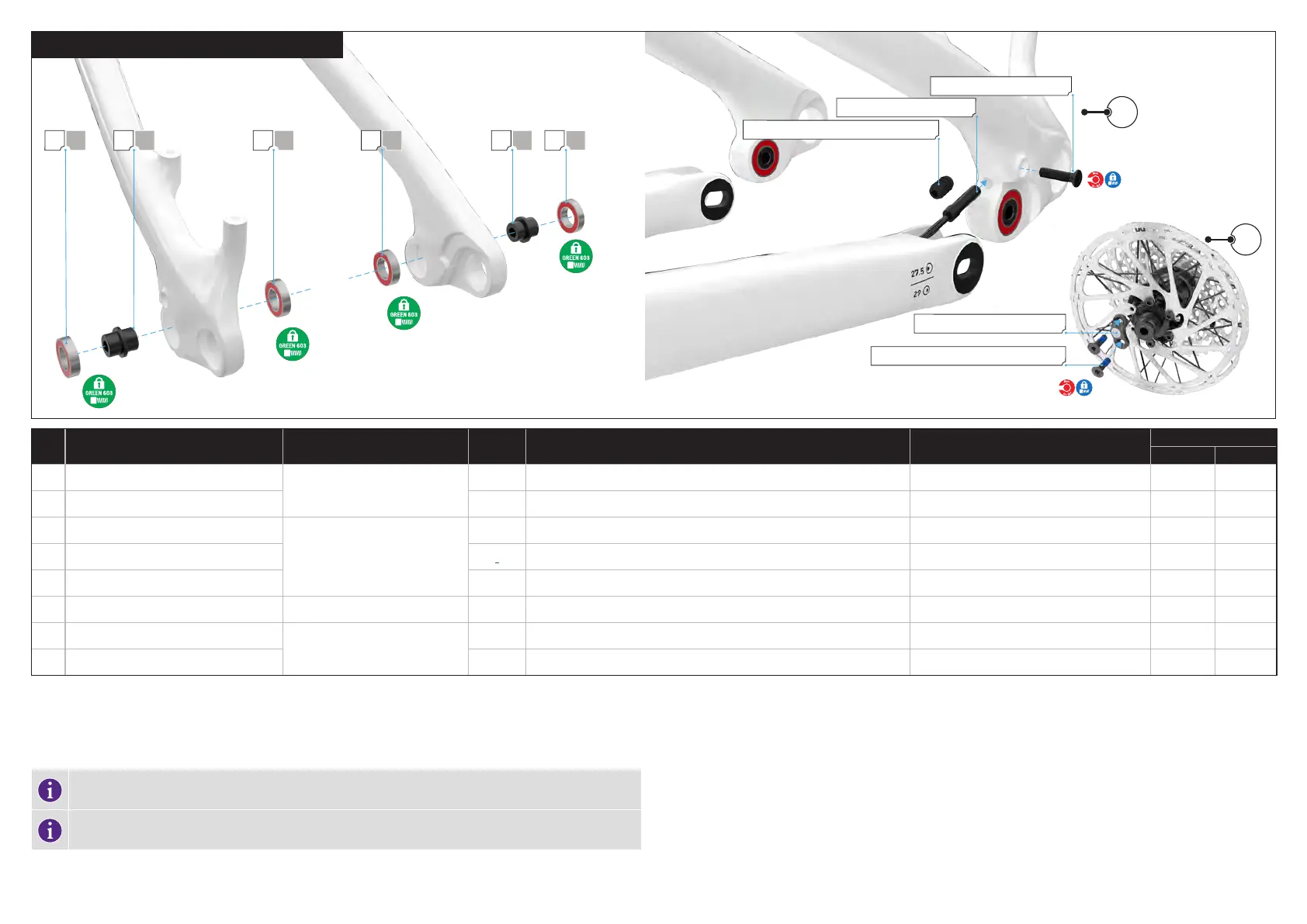

6.1.7. HORST PIVOT — BEARINGS AND SPEED SENSOR
SPEED SENSOR BOLT
SPEED SENSOR MAGNET
SPEED SENSOR MAGNET BOLTS
SPEED SENSOR
SPEED SENSOR GROMMET
 From the inside of each Horst pivot bore, insert a bearing (B).
 Insert the center spacers (R) from the outside of the Horst pivot bores.
 On the outside of each Horst pivot bore, insert a bearing (B) sandwiching the center spacer between the other
bearing.
Apply green Loctite 603 to all the bearing/bore interface surfaces 12 hours before pressing all the bearings
into their respective pivot locations.
The speed sensor must be installed before assembling the Horst pivot.
 Align the chainstay close to the Horst link pivot.
 Insert the speed sensor into the hole at the front of the dropout, then feed it through the chainstay until is passes
the bolt hole.
 Insert the speed sensor bolt into the hole. Use a torque wrench and 3 mm hex bit to torque the bolt to
specification.
 Pry open the grommet and place it over the speed sensor cable behind the sensor.
 Slide the rubber grommet up into the speed sensor hole to secure it.
 When assembling the rear brake disc, the speed sensor magnet must be installed on the rotor. Four of the six bolts
are standard rotor bolts. The remaining two bolts (M5 x 0.8 pitch x 15 mm length with a countersunk flat head)
attach the speed sensor magnet to the rotor.
# PART NAME SERVICE PART NUMBER QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
R Horst link inner spacer
Part of suspension bolt kit.
S220500016
2 6 mm id x 16 mm od x 16 mm w, stepped spacer N/A N/A N/A
B Horst link bearing 4 12 mm id x 21 mm od x 5 mm w, ball bearing N/A N/A N/A
Speed sensor kit
S196800019
1 ELE MY20 MTB SL SYSTEM, SPEEDSENSOR KIT N/A N/A N/A
Speed sensor cable
1 CA,SNSR,SPEED,BROSE, AMPHENOL, WERNERWIRTH COPY CON,650MM N/A N/A N/A
Speed sensor bolt 1 M4 x 18 mm x 0.7 mm p, bolt 3 mm hex 1 9
Speed sensor grommet
S216800021
1 ELE TURBO MTB SPEED SENSOR GROMMET N/A N/A N/A
6-Bolt rotor mount speed sensor magnet
assembly
S194200016
1 6-BOLT VERSION N/A N/A N/A
Speed sensor magnet bolts 2 M5 x 16 mm x 0.8 mm p, bolt T25 Torx 6.2 56
