41
6.4. DRIVETRAIN ASSEMBLY
A

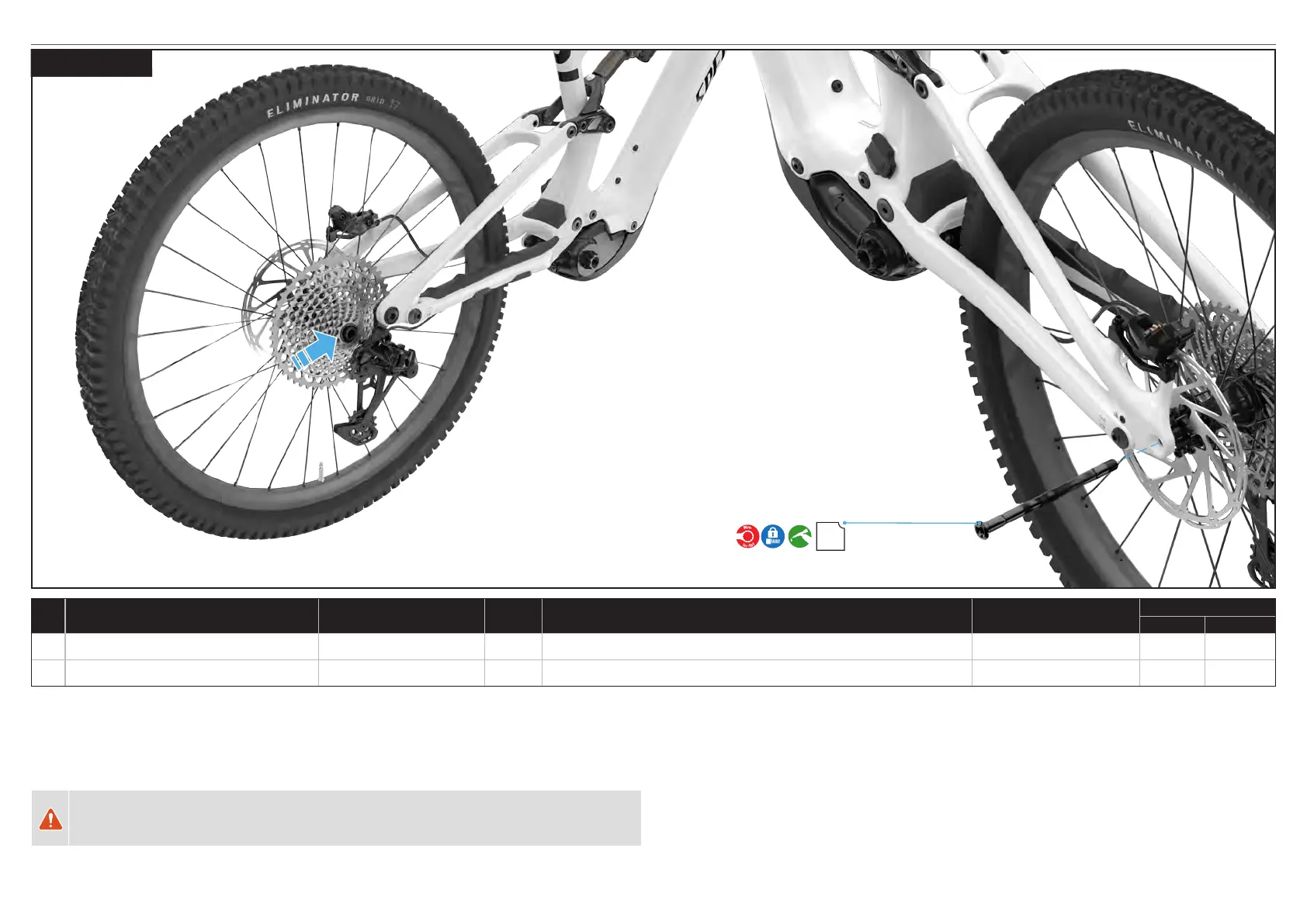

6.4.1. REAR WHEEL
# PART NAME SERVICE PART NUMBER QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
A Rear thru-axle
S220200002
1 12 mm x 148 mm x 174.5 mm, axle 6 mm hex 15 133
Roval traverse 27.5 Rim
S193700010
1 MY19 ROVAL TRAVERSE 27.5 RIM-670, 30 MM WIDTH 28H W/CHARCOAL DECAL RIM N/A N/A N/A
Install the rear wheel into the rear frame ensuring the brake disc is between the brake pads.
Lightly grease the shaft of the thru-axle and slide it through the frame from the left (non-drive side) of the bicycle.
Do not grease the threads of the thru-axle.
Use a torque wrench and 6 mm hex bit to tighten the rear thru-axle (A) to the specified torque setting found on the
axle and/or in the user manual.
WARNING! A wheel attachment device that is not properly secured can allow the wheel to loosen or come
off, suddenly stop the wheel, decrease your control, and cause you to fall, resulting in serious personal
injury.
