Turbo Schematic LEVO SL - Motor Preparation for Installation

31
A
6.3.4. MOTOR PREPARATION
# PART NAME SERVICE PART NUMBER QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
Motor
S226800001
1 MOTOR, M20 N/A N/A N/A
A Removable threaded inserts 3 DS MOTOR MOUNT THREADS N/A N/A N/A

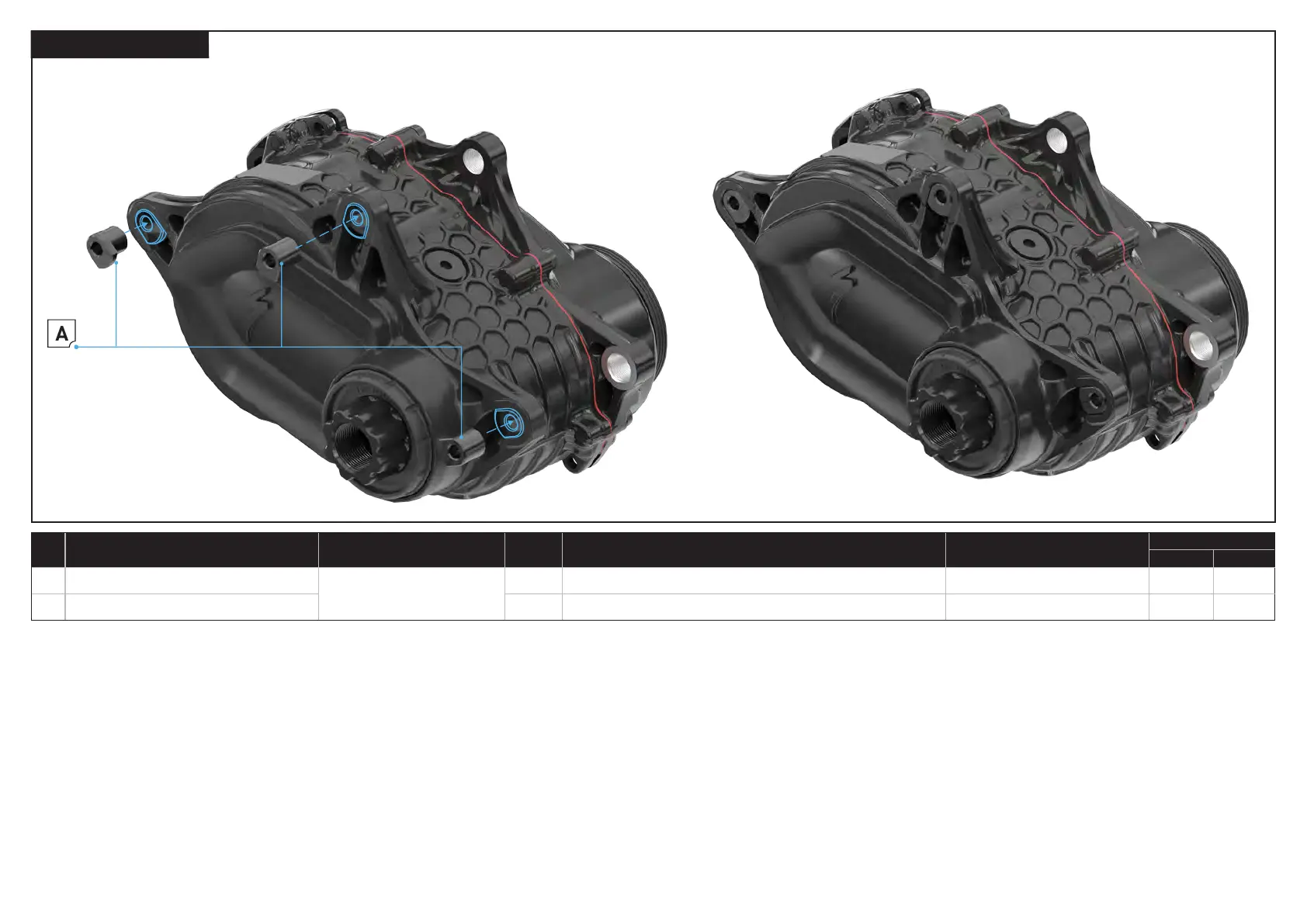

 Prepare the motor for assembly by placing three motor bolt inserts (A) into the slots on the non-drive side of the
motor as indicated.
 Tap the inserts lightly with a rubber mallet to fully seat them.
